TP-Link Archer AXE75 V1 / Wireless router / 4-port switch / 1GbE / Wi-Fi 6E / Wi-Fi 6 / Multi-Band | ARCHER AXE75
Product Features
- Wi-Fi 6E: a freer and faster future
Wi-Fi 6E features a 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency. - Maximize all your device speeds
Archer AXE75 provides Wi-Fi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads. - More RAM, better processing
With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker. - Connect more stay fast
The number of IoT devices today creates greater demands on home Wi-Fi. Archer AXE75 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA and other advanced technologies cut down the clutter throughout your frequency bands, eliminating latency and jitter. - Wi-Fi coverage throughout your home
6x high-performance antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas. - USB 3.0
Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple, secure access from anywhere. - WPA3: stronger security for your network
The WPA3 Wi-Fi security protocol brings additional capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home network. - Easy setup and use
Whether you prefer the intuitive Tether app or TP-Link's powerful web interface, you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device. - Protect your children
Block inappropriate content for your children, and customize a time range for better online habits. - New connection notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It's as simple as that.
Special Features
- AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps
- Excellent processing - armed with a 1.7 GHz quad-core CPU
- SuperSpeed USB 3.0 - up to 10x faster transfer speeds than USB 2.0
- Wi-Fi 6E unleashed - 6 GHz band brings more bandwidth, faster speeds, and near-zero latency
- Connect more devices - OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices
- Ultra-low latency - enables more responsive gaming and video chatting
- Compatible with Alexa - control your router via voice commands and make your life smarter and easier with Amazon Alexa
Product Specification
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Maximum data rate (6 GHz): 2402 Mbps |
Capacity | Streams: 6 |
Network / Transport Protocol | PPTP, L2TP, PPPoE, FTP, DHCP, DDNS, IPv4, IPv6 |
Routing Protocol | IGMP, static IP routing |
Remote Management Protocol | DHCP |
Encryption Algorithm | WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3 |
Wi-Fi Rating | AXE5400 |
Features | IGMP snooping, Stateful Packet Inspection (SPI), DFS support, Intrusion Prevention System (IPS), parental control, DDos attack prevention, Access Control List (ACL) support, Quality of Service (QoS), virtual server support, Wi-Fi Protected Setup (WPS), DHCP server, Samba support, FTP server, port forwarding, reset button, Apple Time Machine compatible, port triggering, IP-MAC binding, tagged VLAN, IGMP proxy, beamforming technology, Tri-Band, Airtime Fairness, DMZ support, L2TP support, DynDNS, bridge mode, L2TP client, PPTP client, PPTP server, OpenVPN client, Orthogonal Frequency Division Multiple Access (OFDMA), OpenVPN server, WPS button, IPv6 addressing, IPv4 addressing, auto firmware update, Guest Network, Address Reservation, SIP ALG (Application Layer Gateway), Wi-Fi on/off button |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS |
Processor | 1.7 GHz |
Status Indicators | Status |
Line Properties | Line Properties |
Line Coding Format | OFDMA |
Expansion / Connectivity | Expansion / Connectivity |

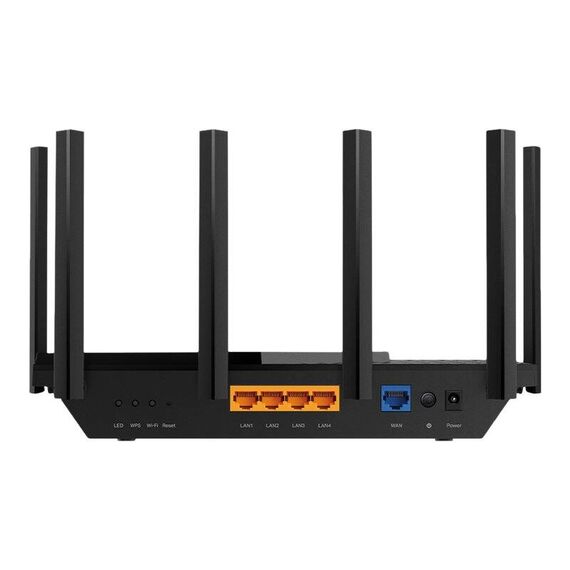

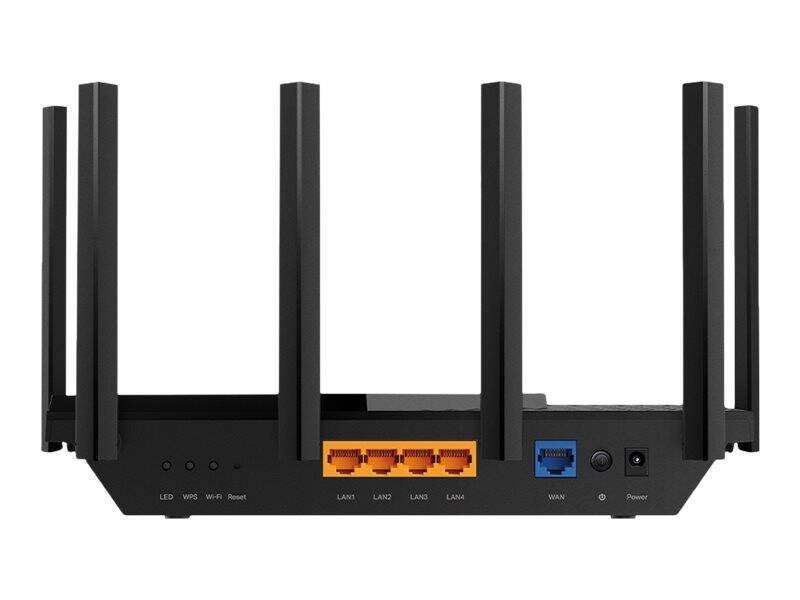

Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A |
Aerial | Aerial |
Aerial | External |
Antenna Qty | 6 |
Power | Power |
Power Device | External power adapter |
Miscellaneous | Miscellaneous |
Cables Included | 1 x network cable |
Software / System Requirements | Software / System Requirements |
OS Provided | No operating system |
Dimensions & Weight | Dimensions & Weight |
Width | 27.25 cm |
Depth | 14.72 cm |
Height | 4.92 cm |
Weight | 700 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
