TP-Link Archer BE800 V1 / Wireless router / mesh / 4-port switch / 10GbE, 2.5GbE / WAN ports: 2 / Wi-Fi 6 / Wi-Fi 7 / Multi-Band | ARCHER BE800
Please sign in so that we can notify you about a reply
Product Features
- 12-stream tri-band Wi-Fi
Enjoy smooth 8K streaming, VR/AR, video conferencing, online gaming, and high-speed downloading. - True 10G connectivity
Equipped with two 10G WAN/LAN ports - one RJ-45 port and one SFP+ Fiber/RJ-45 Ethernet combo port - Archer BE800 provides flexible support for both fiber and copper connections. The additional four 2.5G ports and one USB port make it an ideal solution for future-proofing your home network. - 8x internal antennas
Proprietary Wi-Fi optimization and 12x optimally positioned antennas deliver more capacity, stronger and more reliable connections, and less interference. - Advanced case design

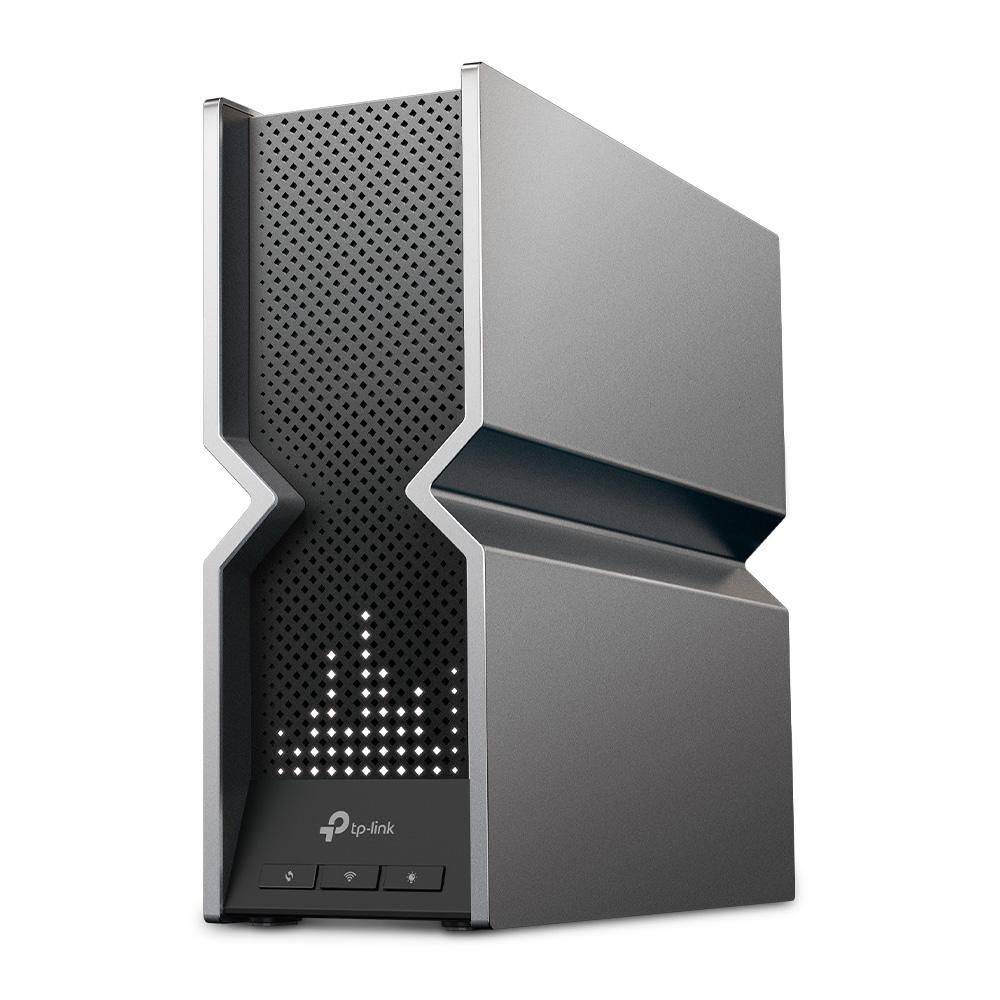

The metallic texture enhances the sense of quality and helps it perfectly integrate into any home environment. A larger heat sink and refined casing keep the system cool under performance. - HomeShield
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy. - Private IoT network for more security
Set up a separate Wi-Fi for IoT devices and overlay HomeShield and advanced WPA3 encryption to better protect the security of your home network and IoT devices. - VPN clients and server supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE800 can run both the VPN and ordinary Internet connections at the same time, delivering security and flexibility.
Special Features
- With powerful Wi-Fi 7 performance, lightning-fast wired connections, great design, and LED screen
- Lightning-fast 19 Gbps tri-band Wi-Fi 7: enables your devices to run at full speed
- Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and lightning-fast downloads
- Multi-Link Operation (MLO): increases throughput, reduces latency, and improves reliability for emerging applications

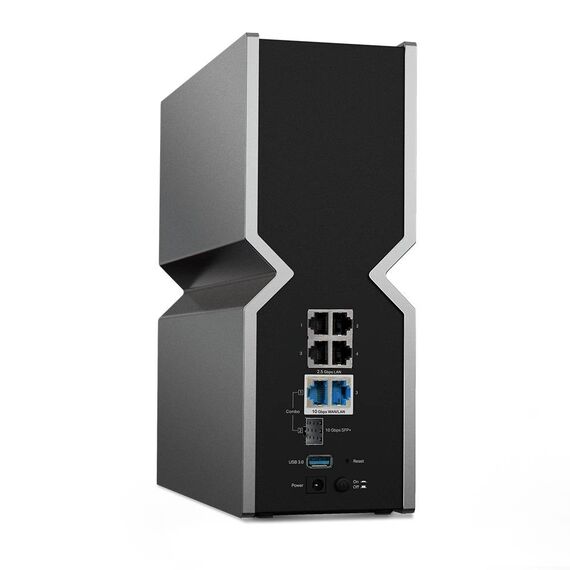

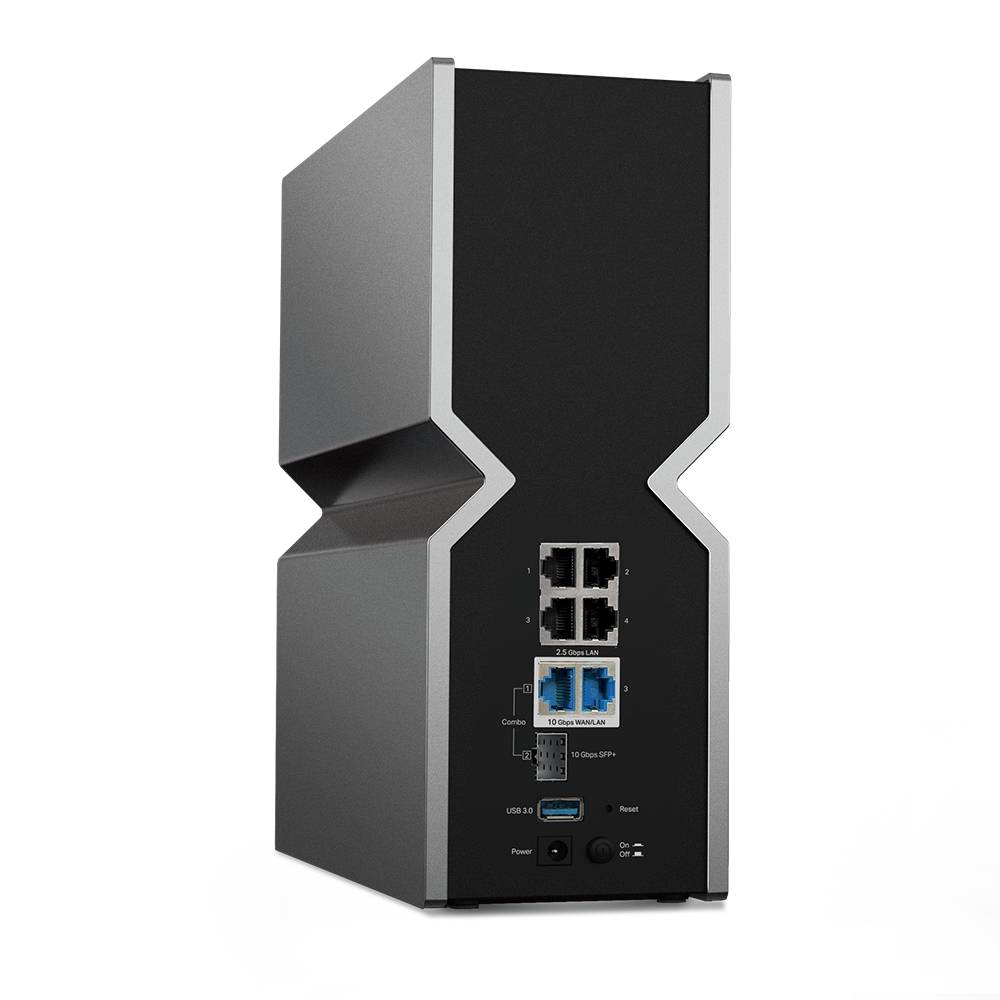

- Dual 10G ports: 1x 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1x 10 Gbps WAN/LAN port + 4x 2.5 Gbps ports + 1x USB 3.0 port ensure max flexibility and boosted throughput
- Maximized coverage: proprietary Wi-Fi optimization and 8x optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference
- TP-Link HomeShield: enhanced security defends against cyber threats
Product Specification
| Device Type | Wireless router - mesh - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11be |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Data Transfer Rate | 19 Gbps |
| Performance | Maximum data rate (2.4 GHz): 1376 Mbps ¦ Maximum data rate (5 GHz): 5760 Mbps ¦ Maximum data rate (6 GHz): 11520 Mbps ¦ Channel bandwidth: up to 320 MHz ¦ Aggregate data rate: 5 Gbps |
| Capacity | Streams: 12 |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, DDNS, IPv4, IPv6, OpenVPN |
| Routing Protocol | IGMP, static IP routing |
| Remote Management Protocol | HTTP, DHCP |
| Encryption Algorithm | WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3 |
| Wi-Fi Rating | BE19000 |
| Mesh Networking | Yes |
| Features | NAT support, DFS support, Intrusion Prevention System (IPS), parental control, Access Point operational mode, DDos attack prevention, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), port forwarding, port triggering, Stateful Packet Inspection Firewall (SPIF), IP-MAC binding, VPN Server, beamforming technology, VPN client, router mode, Airtime Fairness, 4x4 MU-MIMO technology, DMZ support, VLAN Tagging, IPTV support, EasyMesh, auto firmware update, Guest Network, Address Reservation, SIP ALG (Application Layer Gateway), Real-Time IoT Protection, Malicious Site Blocker, Home Network Scanner, Multi-Link Operation (MLO) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7, FCC, RoHS |
| Built-in Devices | Led panel |
| Line Properties | Line Properties |
| Line Coding Format | 4096 QAM, OFDMA |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Intelligent Assistant | Google Assistant, Alexa |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN / LAN: 1 x 10GBase-T - RJ-45 ¦ WAN / LAN: 1 x 10Gb Ethernet - RJ-45/SFP+ ¦ LAN: 4 x 2.5GBase-T - RJ-45 ¦ USB 3.0: 1 x |
| Aerial | Aerial |
| Aerial | Internal |
| Antenna Qty | 8 |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Software / System Requirements | Software / System Requirements |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 30.2 cm |
| Depth | 26.25 cm |
| Height | 9.6 cm |
| Weight | 2.16 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - ARCHER BE800
More Details
Product Code
CJ59032
EAN Code
4895252502183
Manufacturer
TP-LINK
