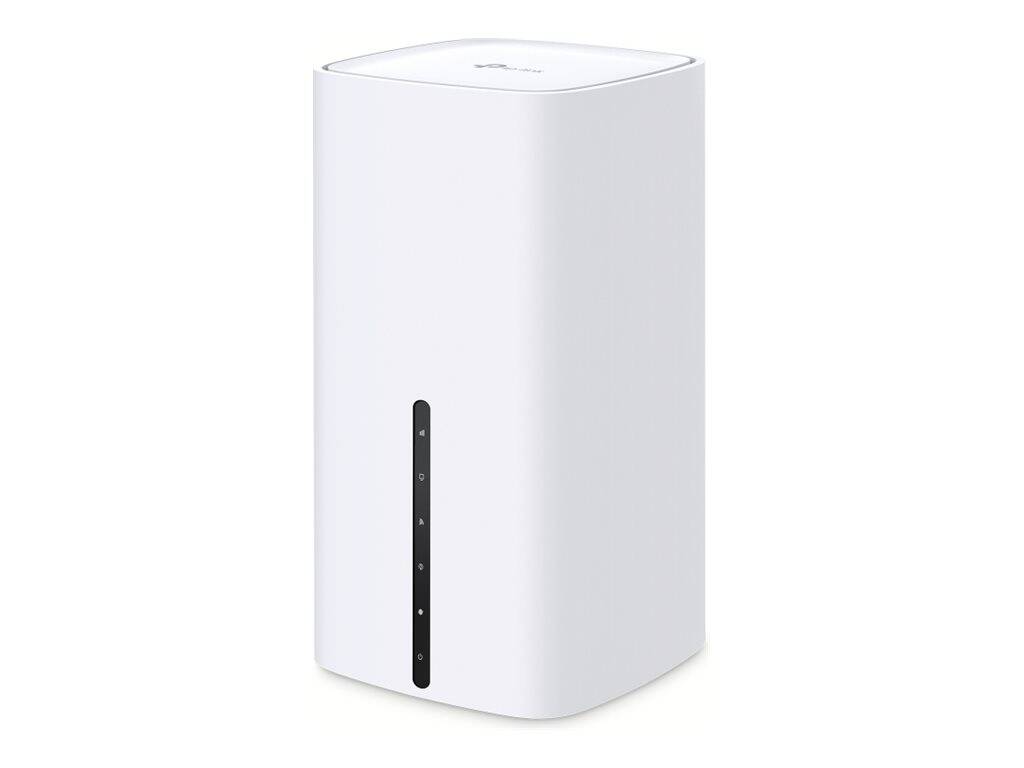

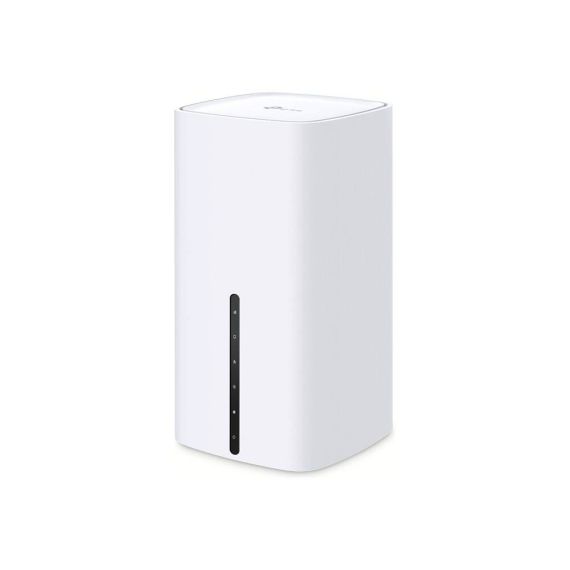

TP-Link Archer NX200 V1 - Wireless router 3-port switch - 1GbE - Wi-Fi 5, Wi-Fi 6 - Dual Band - 5G | Archer NX200
Product Features
- Advanced connectivity
With support for both 5G and Wi-Fi 6 technologies, the Archer NX200 V1 ensures your devices enjoy faster speeds and lower latency. Whether streaming, gaming, or downloading, experience enhanced wireless performance. - Comprehensive security
Equipped with WPA3 encryption and a suite of security features including Access Control List (ACL) support, Stateful Packet Inspection (SPI), and DoS protection, this router provides a fortified barrier against cyber threats. - Effortless network management
Featuring EasyMesh support and a user-friendly interface, setting up and managing your home network is simple. Parental controls and guest network capabilities offer additional layers of control and security. - Seamless coverage
Boasting 10 internal antennas and features like Quality of Service (QoS) and Wi-Fi Multimedia (WMM) support, the Archer NX200 V1 delivers extensive coverage and ensures prioritization of traffic for critical applications. - Versatile connectivity options
With three integrated LAN ports and support for a wide range of cellular bands, this router offers flexible connection options for a variety of network configurations and devices, ensuring you're always connected.
Special Fetures
- 5G and Wi-Fi 6 technology for high-speed, low-latency Internet
- WPA3 encryption and advanced security features for comprehensive protection
- EasyMesh support for simple network management and expansion
- 10 internal antennas for wide coverage and reliable connectivity
- Supports a wide range of cellular bands for flexible network configurations
Product Specification
Device Type | Wireless router - 3-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wired, wireless |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 4.67 Gbps |
Performance | Maximum data rate (2.4 GHz): 574 Mbps <br /> Maximum data rate (5 GHz): 1201 Mbps |
Network / Transport Protocol | IPv4, IPv6, PPPoE, PPTP, L2TP, DHCP, DDNS, IPSec, OpenVPN |
Routing Protocol | Static IP routing |
Remote Management Protocol | DHCP |
Encryption Algorithm | 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA3 |
Wi-Fi Rating | AX1800 |
Features | EasyMesh, reset button, WPS button, Wi-Fi on/off button, Wireless Scheduler, WMM support, WAN failover, QoS, DoS protection, SPI, ACL support, IPMB, dynamic IP mode, DHCP server, DHCP client, Address Reservation, ALG support, port forwarding, virtual server support, port triggering, DMZ support, No-IP DDNS, parental control, IP address filtering, domain filter, Guest Network, firmware upgradable |
Compliant Standards | IEEE 802.11, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, UPnP, Plug and Play, RoHS |
Line Properties | |
Line Coding Format | 1024 QAM |
Communications | |
Mobile Communication Protocol | FDD LTE, TDD LTE, UMTS |
Generation | 5G |
Cellular Band | 5G n1, 5G n20, 5G n28, 5G n3, 5G n38, 5G n40, 5G n41, 5G n5, 5G n7, 5G n77, 5G n78, 5G n8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B5, LTE B7, LTE B8, UMTS B1, UMTS B5, UMTS B8 |
Expansion / Connectivity | |
Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 <br /> WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 <br /> Antenna: 2 x |
Expansion Slots | 1 (total) / 1 (free) x Nano-SIM |
Aerial | |
Aerial | Internal |
Antenna Qty | 10 |
Configuration Details | 8 internal LTE/5G antennas, 2 internal Wi-Fi aerials |
Power | |
Power Device | External power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Electric Current Required | 0.6 A |
Miscellaneous | |
Cables Included | 1 x network cable <br /> 1 x power adapter - 1.5 m |
Software / System Requirements | |
OS Required | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10, Apple MacOS, Novell NetWare, UNIX, Linux |
Dimensions & Weight | |
Width | 9.9 cm |
Depth | 9.9 cm |
Height | 19 cm |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - Archer NX200
