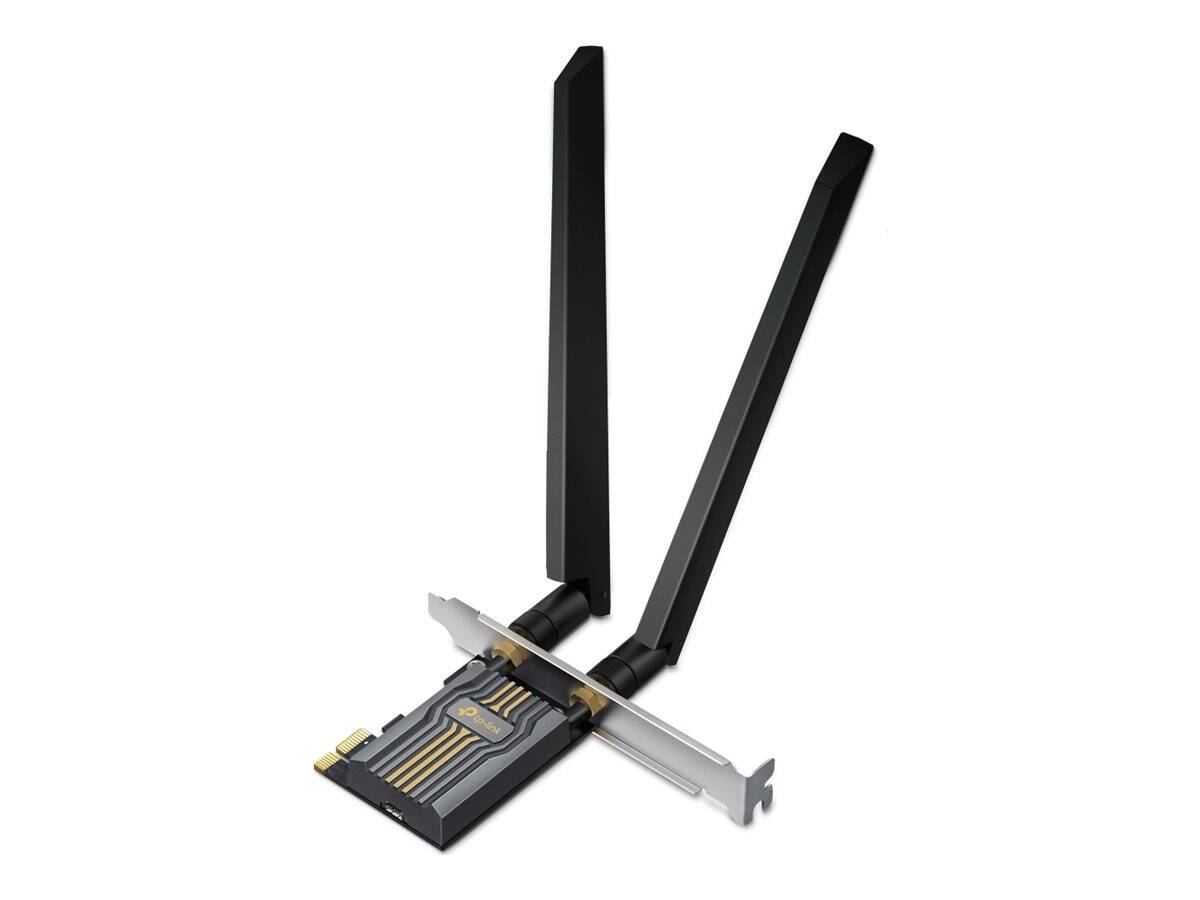

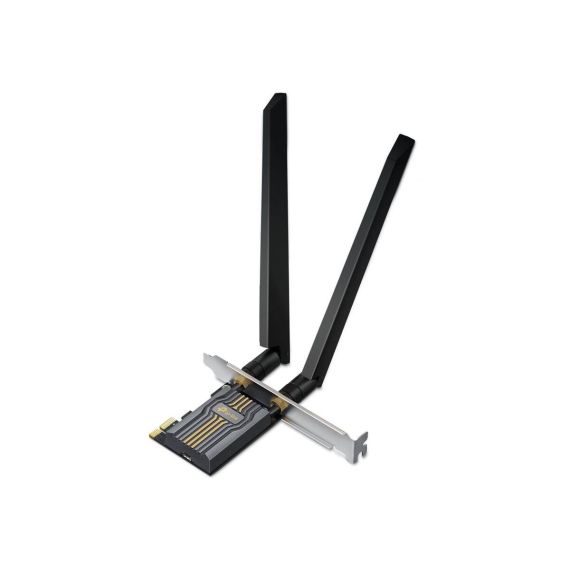

TP-Link Archer TBE400E V1 - Network adapter - PCIe - Wi-Fi 6E, Wi-Fi 7, Bluetooth | Archer TBE400E
Product Features
- Reliable connectivity with advanced protocols
This network adapter supports numerous data link protocols, including IEEE 802.11b/g/n/ac/ax, ensuring compatibility with a wide range of devices and networks. The connection options available allow for a seamless Internet experience. - High-speed data transfer capabilities
The Archer TBE400E V1 has a maximum data rate of 688 Mbps on the 5 GHz band, enabling fast and reliable performance for streaming, gaming, and browsing. - Enhanced network efficiency
Features like MU-MIMO technology and OFDMA optimize data flow, facilitating better bandwidth allocation amongst devices and improving overall network performance in crowded environments. - Flexible installation and use
The plug-in card form factor and detachable Bluetooth header cable enable easy installation and efficient use, while the compact design fits seamlessly into various setups without interfering with other components.
Special Fetures
- Supports Wi-Fi 6E and Wi-Fi 7 for improved performance
- Dual external detachable antennas for signal quality
- Multiple encryption algorithms for secure connections
- Connectivity technology includes both wireless and Bluetooth 5.4
- Designed for a wide operating temperature range of 0°C to 40°C
Product Specification
Device Type | Network adapter |
Form Factor | Plug-in card |
Interface (Bus) Type | PCI Express |
Networking | |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 |
Spread Spectrum Method | OFDMA |
Performance | Maximum data rate (6 GHz): 2882 Mbps <br /> Maximum data rate (5 GHz): 2882 Mbps <br /> Maximum data rate (2.4 GHz): 688 Mbps <br /> Channel bandwidth: 160 MHz |
Line Coding Format | 4096 QAM, OFDMA |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Features | MU-MIMO technology, infrastructure mode, MRU, BSS Coloring, MLO |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7, Wi-Fi CERTIFIED 6E, Bluetooth 5.4 |
Aerial | |
Antenna | External detachable |
Antenna Qty | 2 |
Miscellaneous | |
Included Accessories | Low-profile bracket, 2 x Wi-Fi aerials, bluetooth header cable, resource CD |
Cables Included | 1 x Bluetooth header cable (detachable) - 0.3 m |
Encryption Algorithm | WPA, WPA2, WPA3, WPA-PSK, WPA-PSK2 |
Compliant Standards | BSMI, FCC, IC, JRF, NCC, VCCI |
Software / System Requirements | |
OS Required | Microsoft Windows 11 |
Dimensions & Weight | |
Width | 2.15 cm |
Depth | 12.08 cm |
Height | 7.85 cm |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
