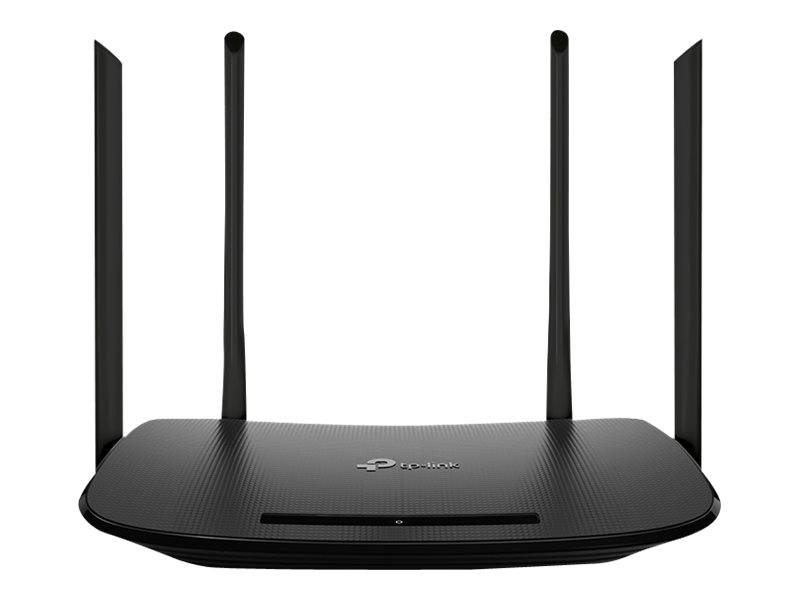

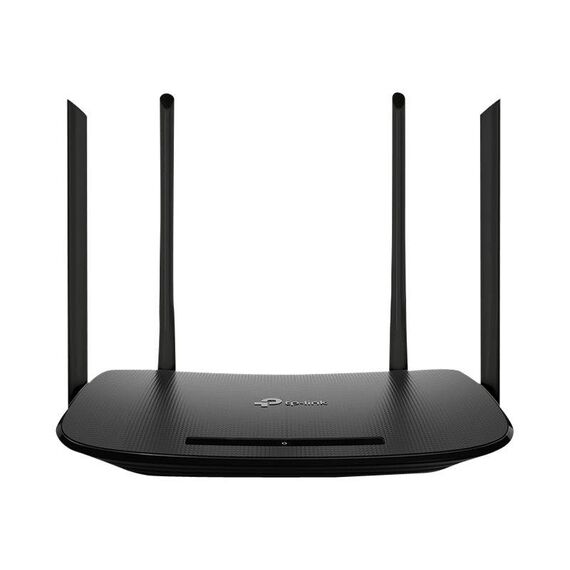

TP-Link Archer VR300 / Wireless router / DSL modem / 4-port switch / GigE / 802.11a/b/g/n/ac / Dual Band | ARCHER VR300
Product Features
- Upgrade AC Wi-Fi to enjoy wireless entertainment
As a powerful DSL modem router, the Archer VR300 makes full use of its Wi-Fi abilities by providing combined dual band Wi-Fi speeds of up to 1200 Mbps. 300 Mbps on 2.4 GHz is perfect for everyday surfing and emailing, while 867 Mbps on 5 GHz provides lag-free HD streaming and gaming. - Superfast VDSL broadband
The VDSL2 technology allows the Archer VR300 to deliver impressive VDSL broadband speeds of up to 100 Mbps, which is almost five times faster than ADSL2+. The Archer VR300 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL. - External antennas greatly expand wireless coverage
Four external antennas with advanced connection technology allow you to maintain impressive speeds, even over greater distances. This means that you can enjoy incredible wireless coverage and reliability in any part of your large home or office.
Special Features
- Parental controls: manage responsible internet access for your children
- Guest network: provides separate access for guests while securing the home network
- Firewall security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
- Quality of service: prioritizes network traffic by device or application
- IPTV IGMP proxy/snooping: supports Bridge and Tag VLAN for smooth IPTV application
- IPv6: compatible with IPv6 (Internet Protocol version 6)
Product Specification
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Frequency Band | 2.4 GHz / 5 GHz |
Capacity | Permanent virtual circuits (PVC): 8 |
Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, PPPoA, IPoA, IPoE, DHCP, DNS, DDNS |
Routing Protocol | RIP-1, IGMPv2, IGMP, static IP routing, IGMPv3 |
Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, CLI, TR-069 |
Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK, WEP |
Wi-Fi Rating | AC1200 |
Features | Firewall protection, NAT support, IPv6 support, VPN passthrough, parental control, Access Point operational mode, Wi-Fi Protected Setup (WPS), IPSec passthrough, wireless bridge mode, reset button, IPv4 support, DNS relay, Quick Secure Setup (QSS), PPTP passthrough, L2TP passthrough, port mapping |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Line Properties | Line Properties |
Framing Format | ANSI T1.413i2 |
Communications | Communications |
Type | DSL modem |
Digital Signaling Protocol | ADSL, ADSL2, ADSL2+, VDSL2 |
Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5, ITU G.993.2, ITU G.995.1, ITU G.998.4, ITU G.993.5 |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | LAN: 3 x 10Base-T/100Base-TX - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Phone line: 1 x VDSL / ADSL2+ - RJ-11 |
Aerial | Aerial |
Aerial | External detachable |
Antenna Qty | 4 |
Power | Power |
Power Device | External power adapter |
Miscellaneous | Miscellaneous |
Included Accessories | ADSL splitter |
Cables Included | 1 x network cable ¦ 1 x phone cable |
Software / System Requirements | Software / System Requirements |
Software Included | Drivers & Utilities |
OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP/ 7 / 8 / 8.1 / 10 |
Dimensions & Weight | Dimensions & Weight |
Width | 38.5 cm |
Depth | 29 cm |
Height | 7.6 cm |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
