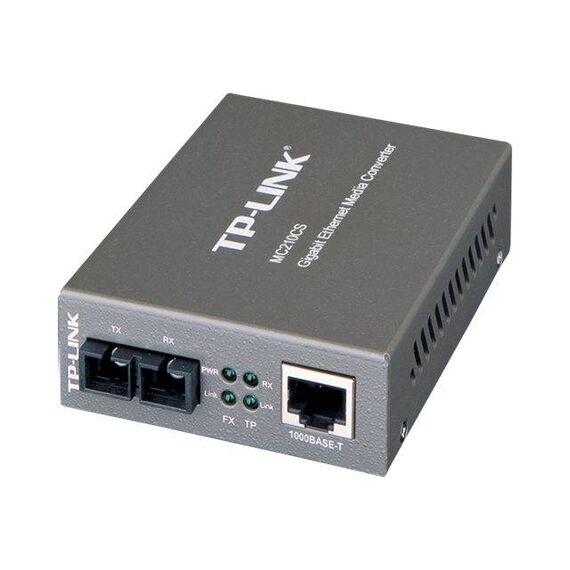

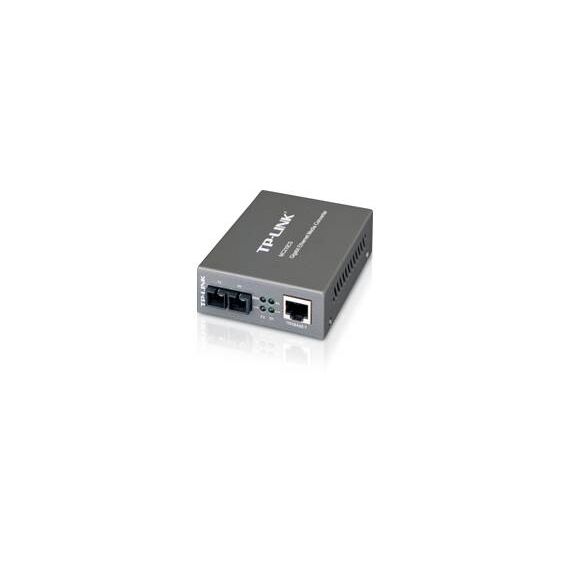

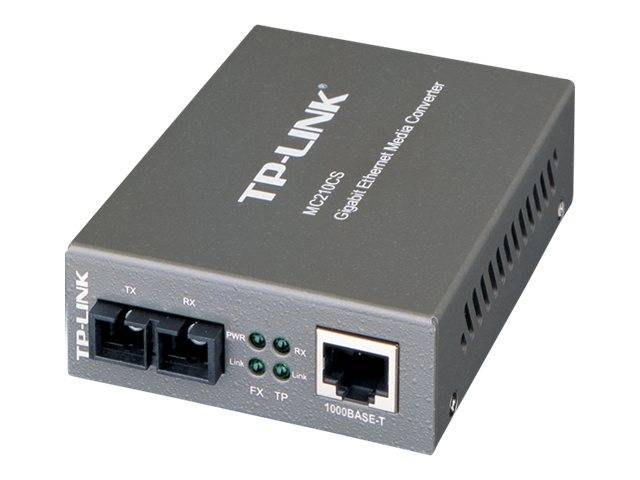

TP-Link MC210CS / Fibre media converter / 1GbE / 1000Base-FX, 1000Base-T / RJ-45 / SC single-mode / up to 15 km / 1310 nm / for P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1 | MC210CS
Please sign in so that we can notify you about a reply
Special Features
- Complies with IEEE 802.3ab and IEEE 802.3z
- Link fault passthrough and far end fault minimize the loss caused by link failure timely
- Provides switch configuration of force /auto transfer mode for FX port
- Extends fiber distance up to 15km
- Supports auto MID/MID-X for TX port
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-FX, 1000Base-T |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 15 km |
| Status Indicators | Power, receive, link/activity |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-FX - SC single-mode female x 2 |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 9.5 cm |
| Depth | 7.3 cm |
| Height | 2.7 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1 |
Features - TP-LINK - MC210CS
More Details
Product Code
Z000030
EAN Code
6935364030445
Manufacturer
TP-LINK
