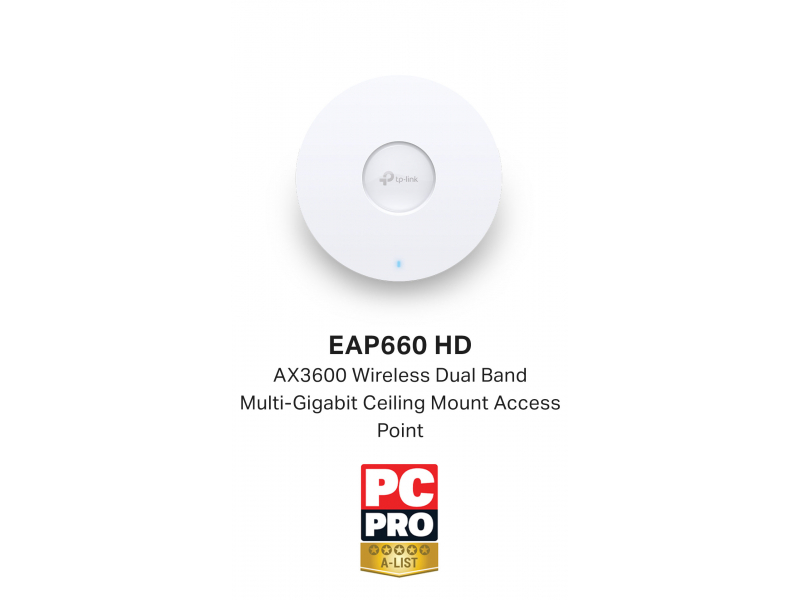

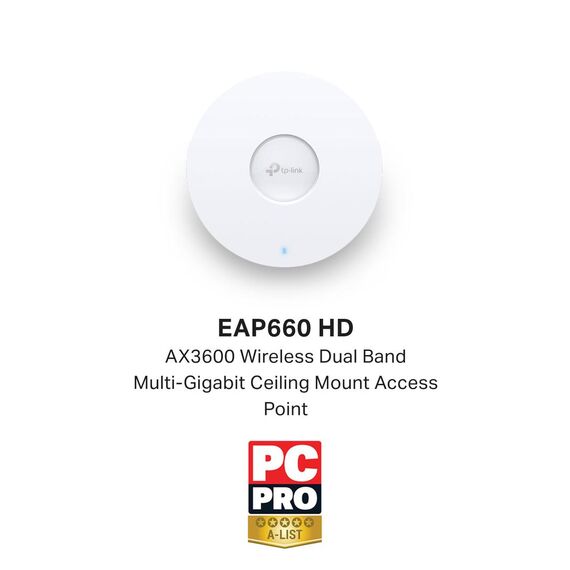

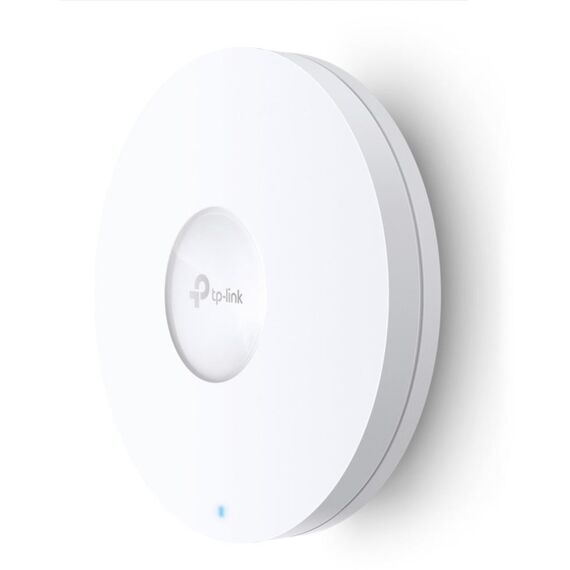

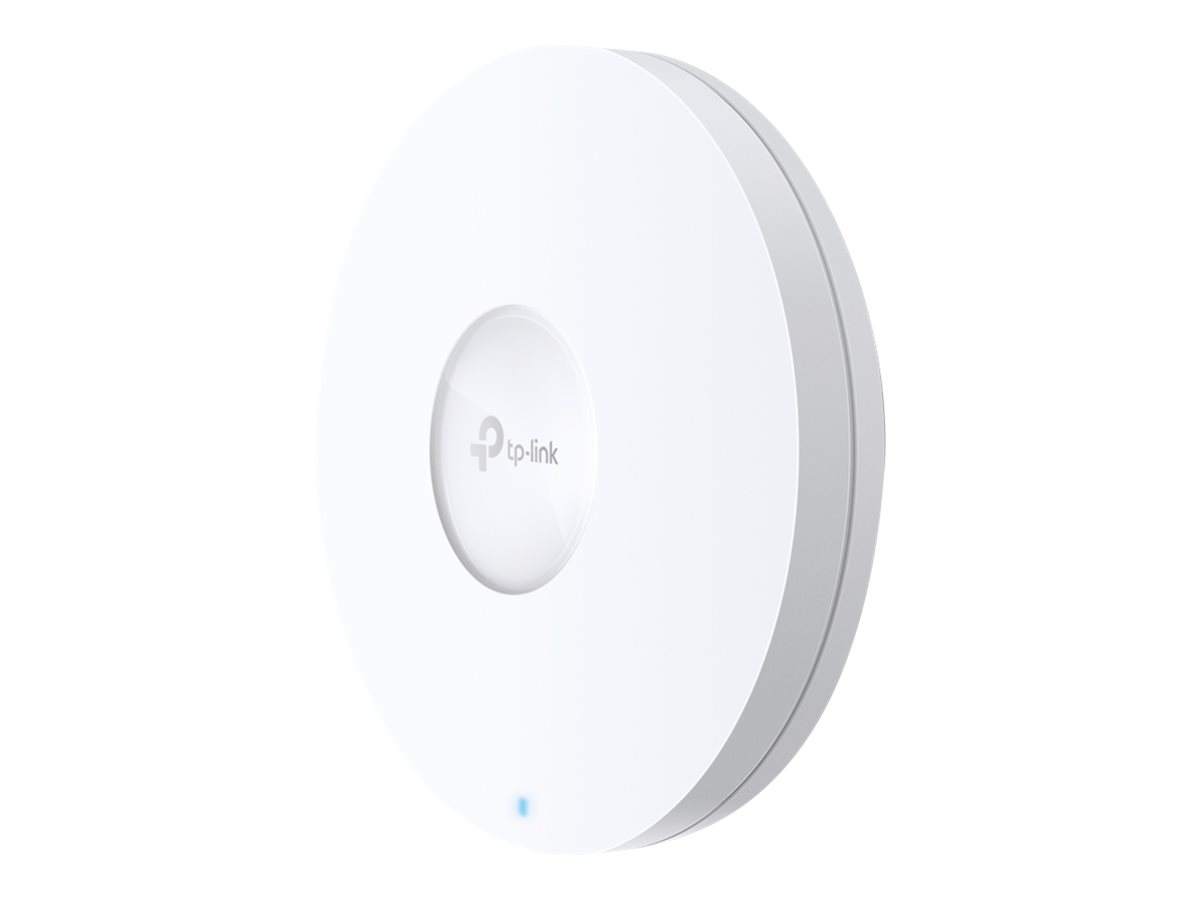

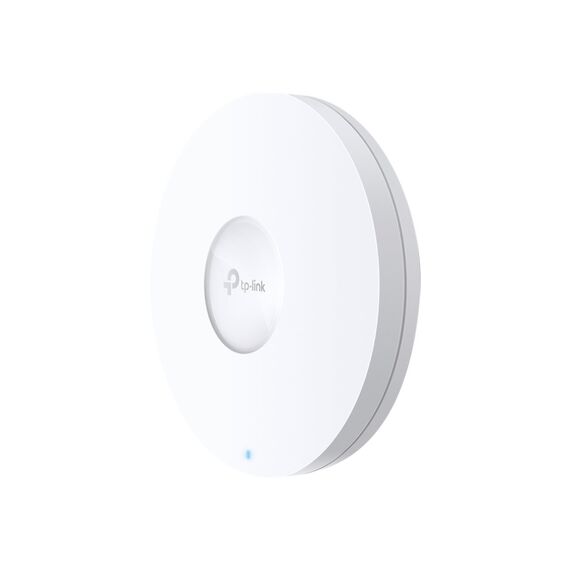

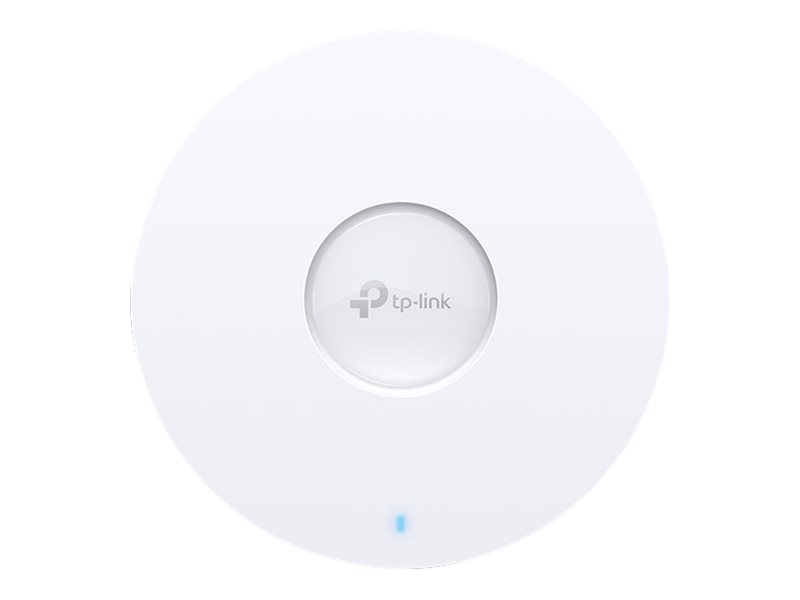

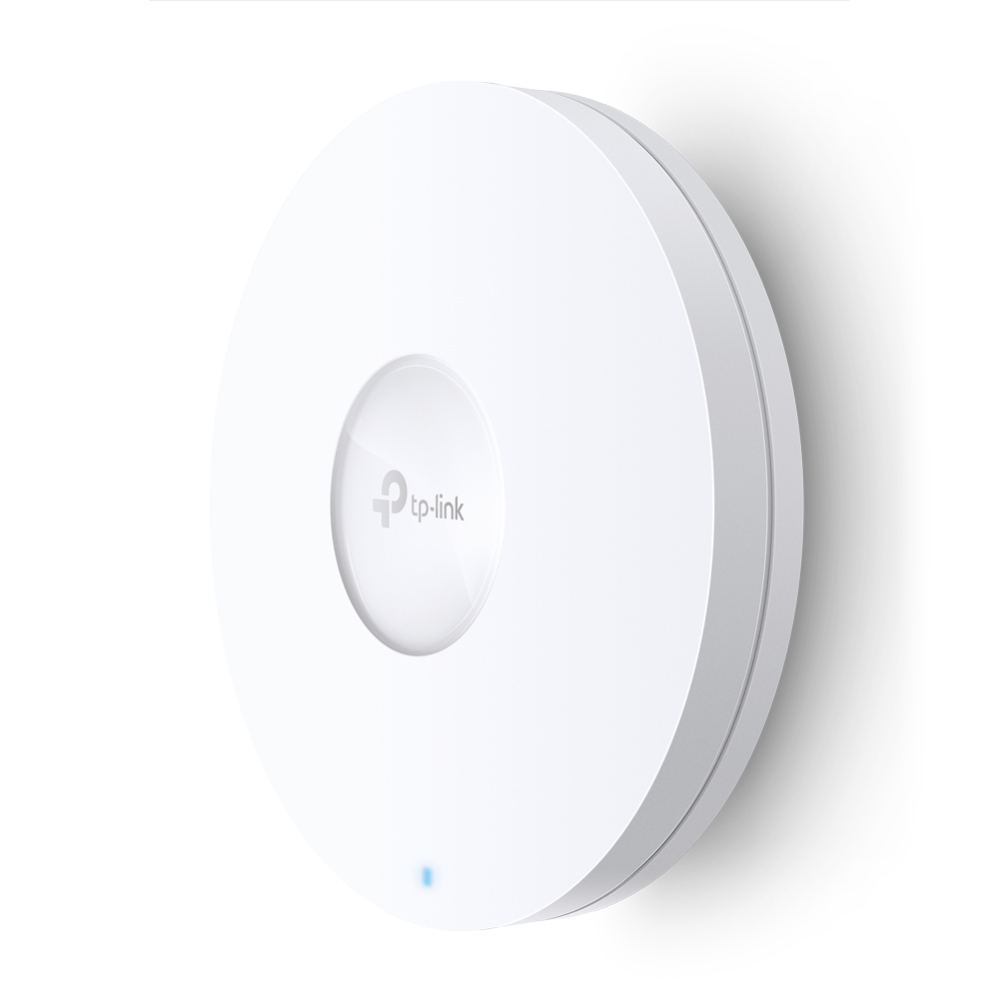

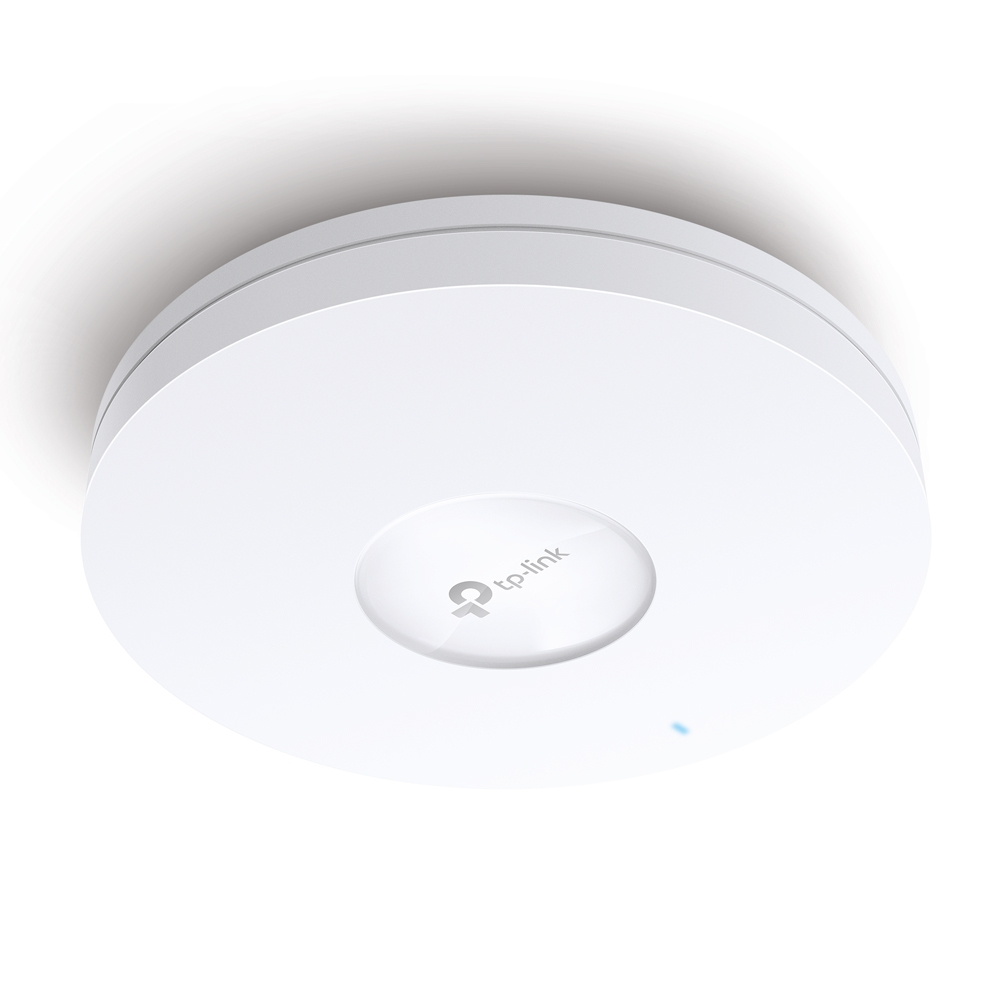

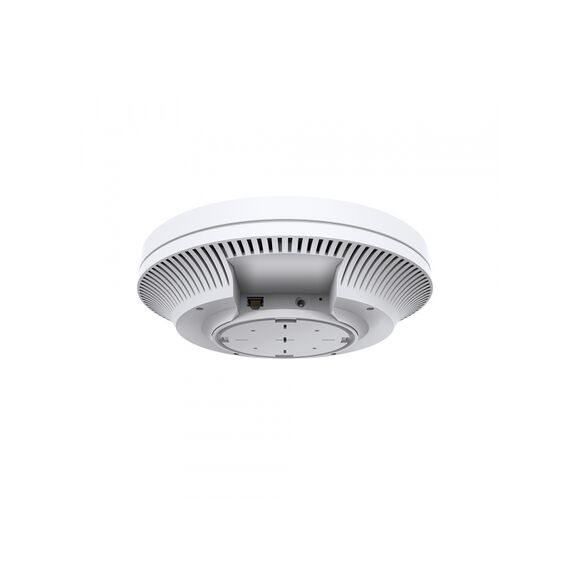

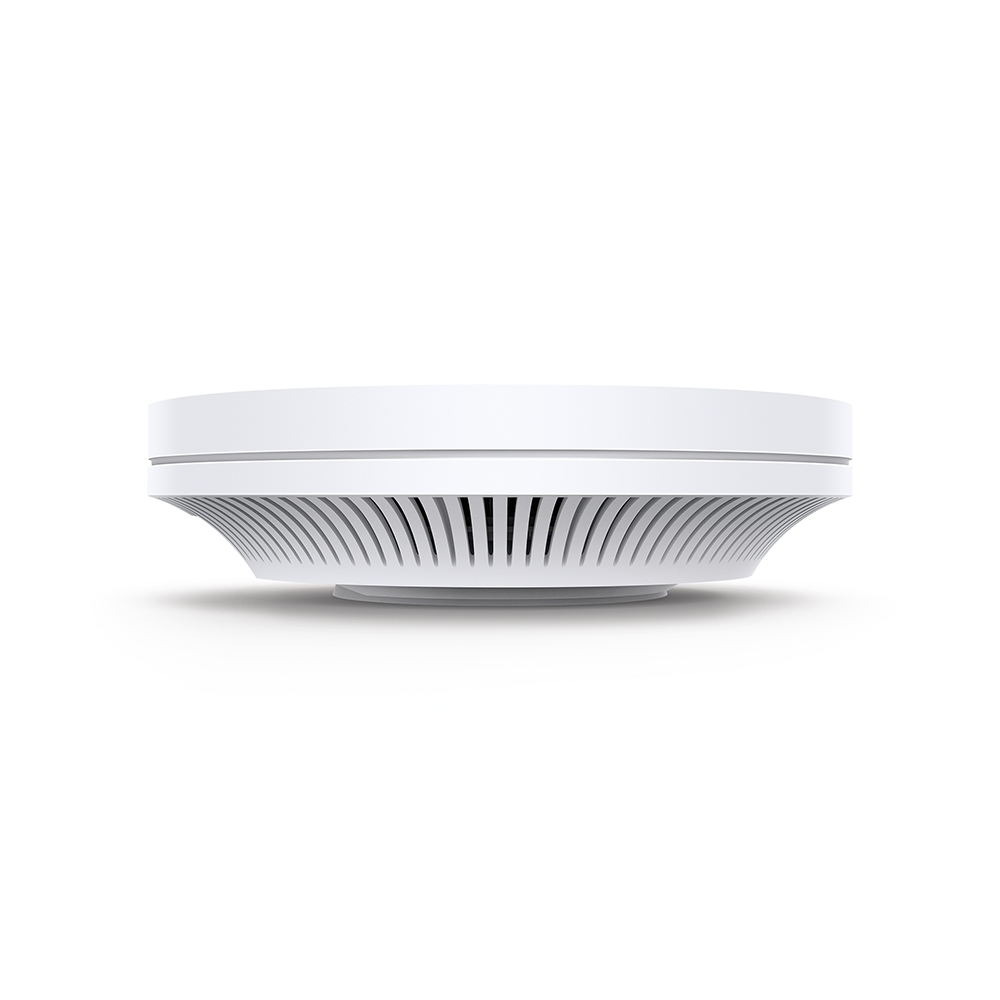

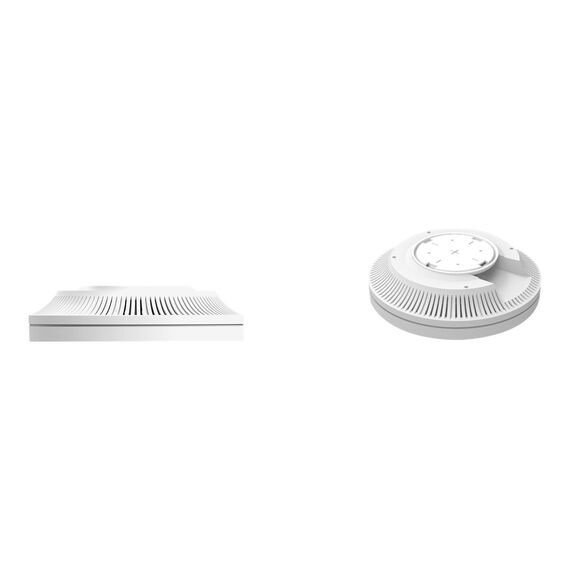

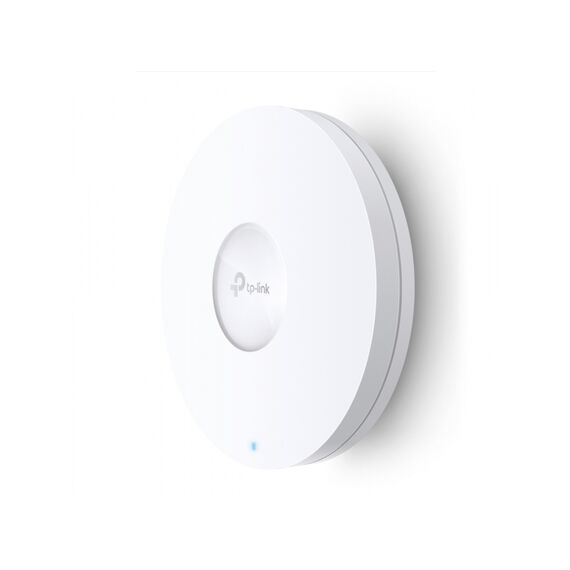

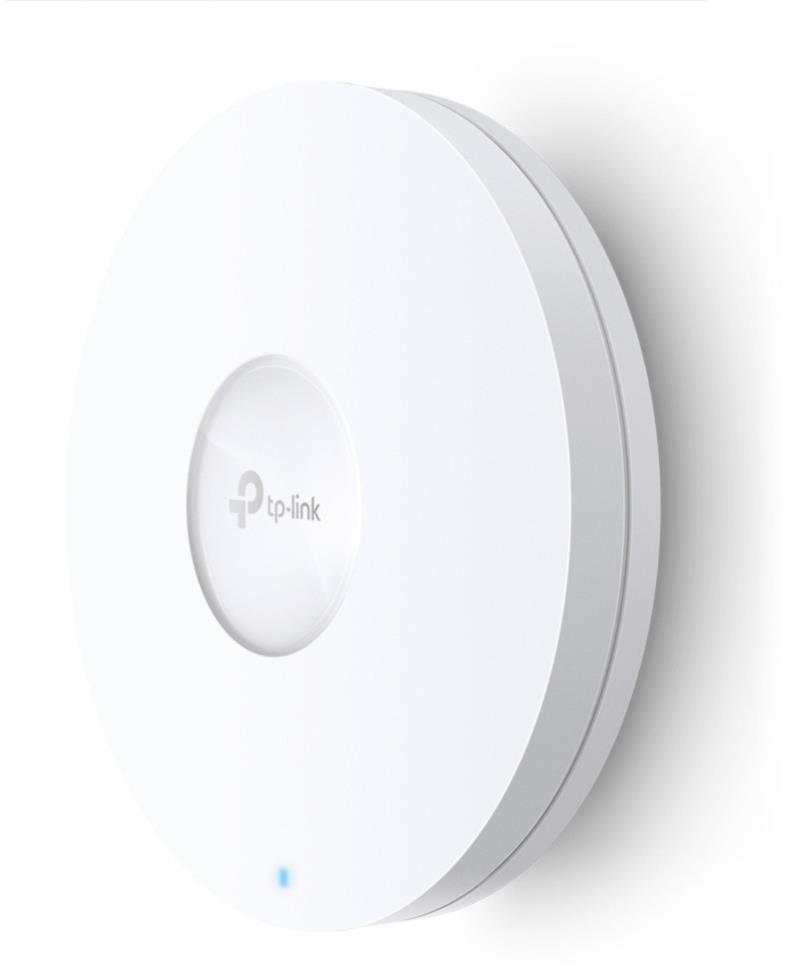

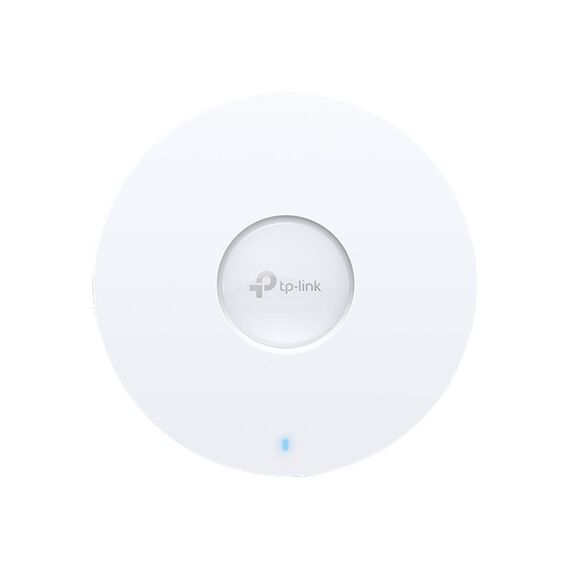

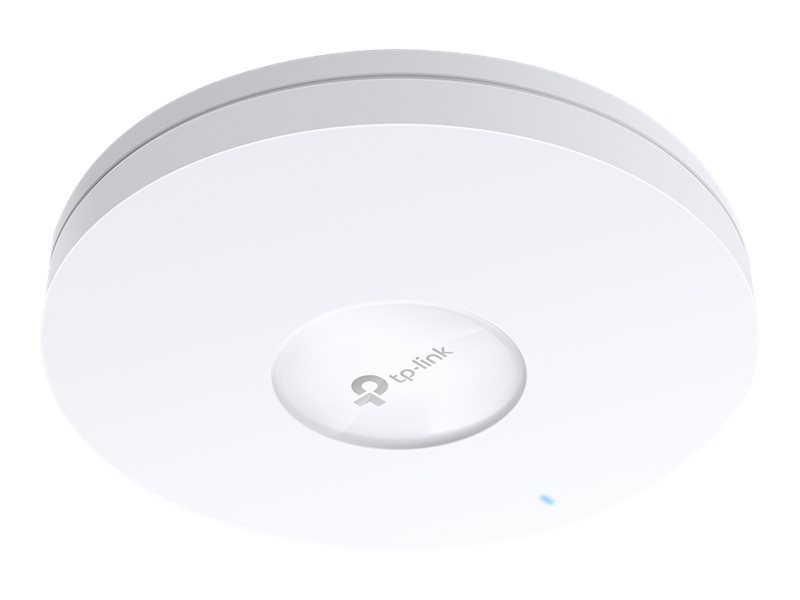

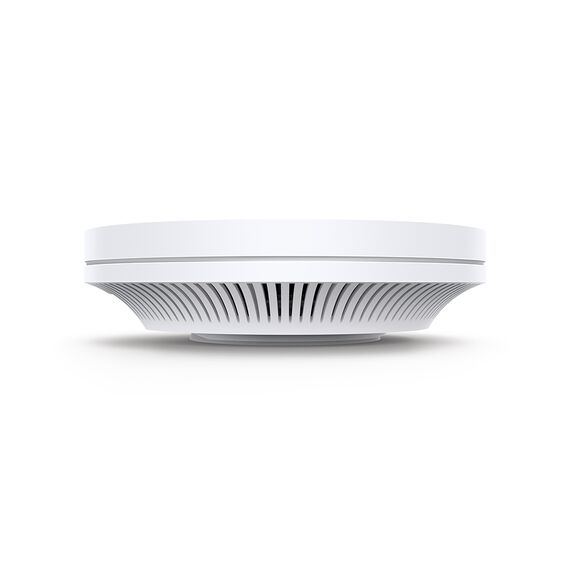

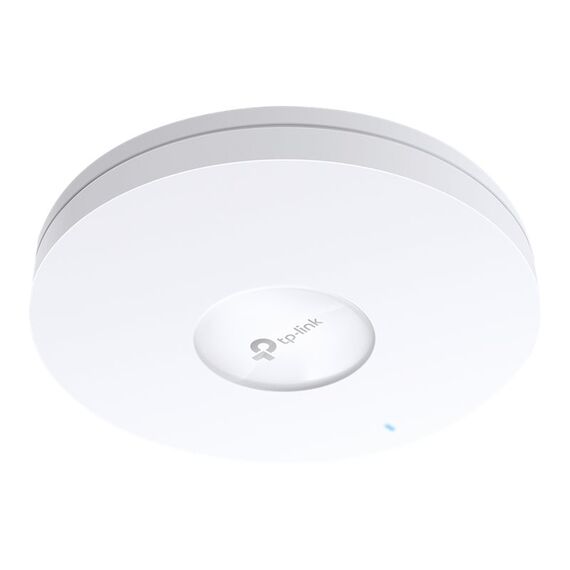

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - wall / ceiling mountable | EAP660 HD
Please sign in so that we can notify you about a reply
Product Features
- Ultra-fast Wi-Fi 6 speeds
Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds. - High-density connectivity
4x increased capacity to connect more devices simultaneously. - Integrated into Omada SDN
Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring. - Centralized management
Cloud access and Omada app for ultra-convenience and easy management. - 2.5G port
A 2.5 Gbps Ethernet port boosts total internet throughput. - Seamless roaming
Even video streams and voice calls are unaffected as users move between locations. - PoE+ support
Supports Power over Ethernet (802.3at) for convenient deployment and installation. - Secure Guest Network
Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Special Fetures
- Ultra-fast Wi-Fi 6 speeds
- High-density connectivity
- Integrated into Omada SDN
- Centralized management
- 2.5G port
- Seamless roaming
- PoE+ support
- Secure Guest Network
Product Specification
| Device Type | Radio access point |
| Width | 24.3 cm |
| Depth | 24.3 cm |
| Height | 6.4 cm |
| Networking | |

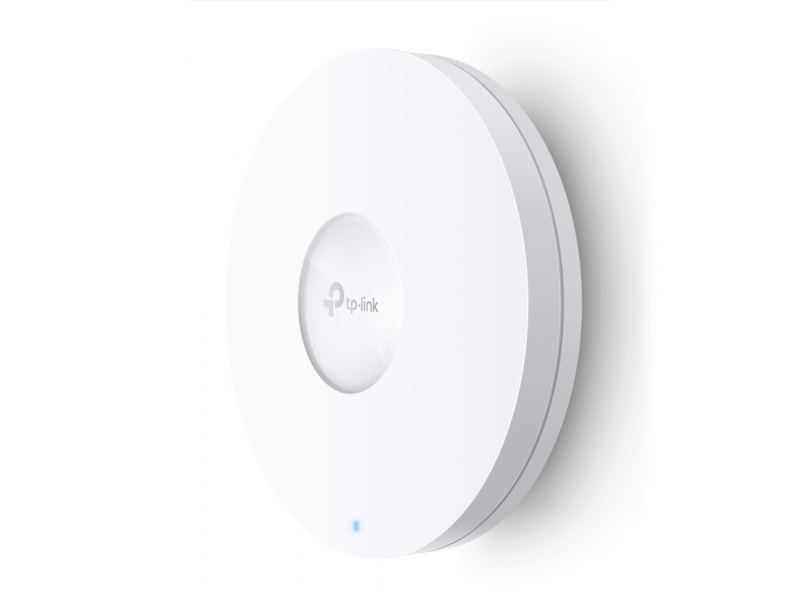

| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Spread Spectrum Method | OFDMA |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 16 |
| Wi-Fi Rating | AX3600 |
| Features | VLAN support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, rogue access point detection, Captive Portal, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, seamless roaming, Airtime Fairness, schedule reboot, load balance network mode |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WEP, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Expansion / Connectivity | |

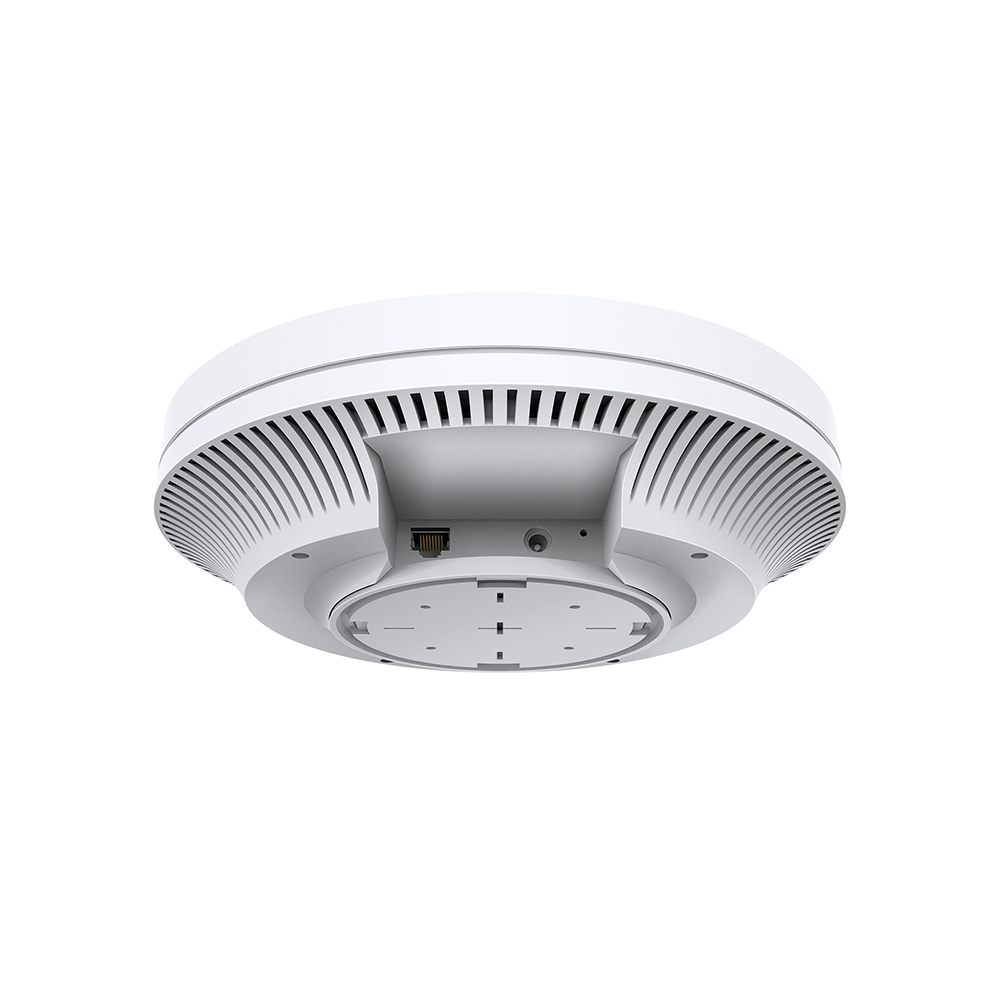

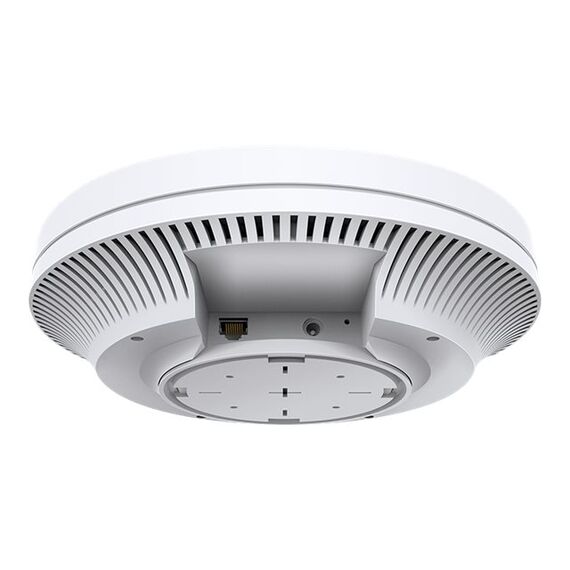

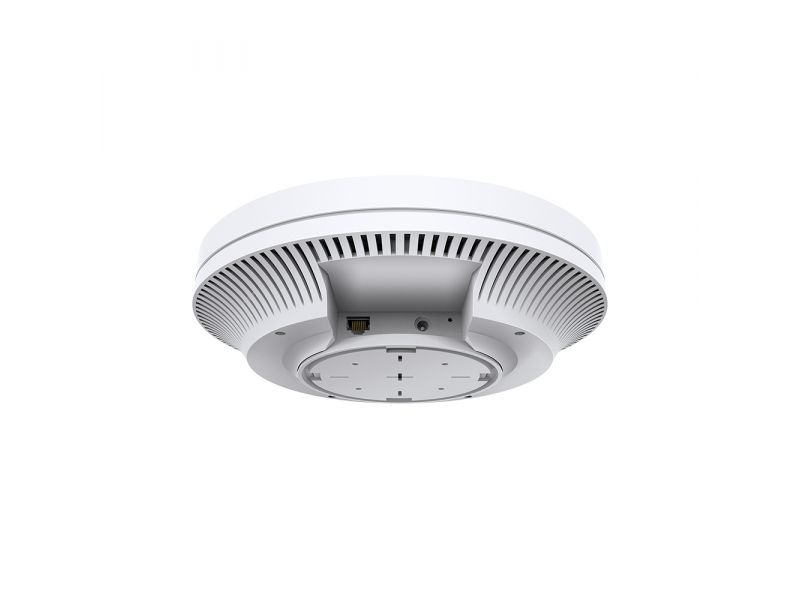

| Interfaces | 1 x 2.5 GBase-T (PoE) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - EAP660 HD
More Details
Product Code
Z001406
EAN Code
6935364089719
Manufacturer
TP-LINK
