TP-LINK Easy Smart TL-SG1016PE / Switch / smart / 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 / desktop, rack-mountable / PoE+ (110 W) | TL-SG1016PE

Description

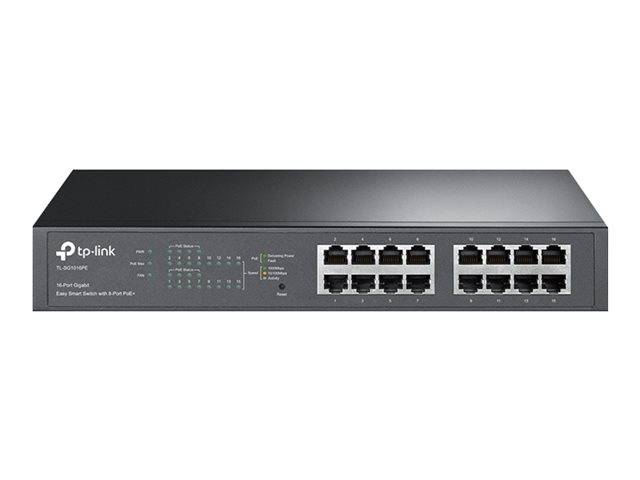

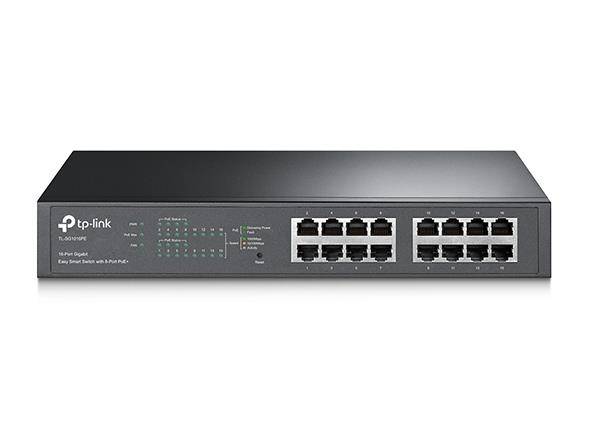

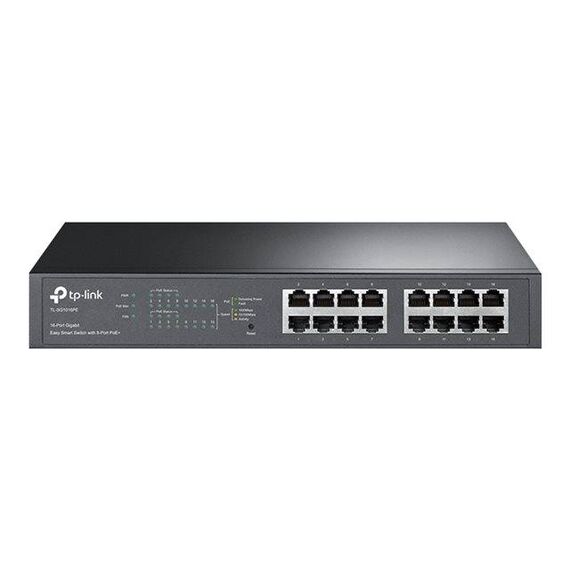

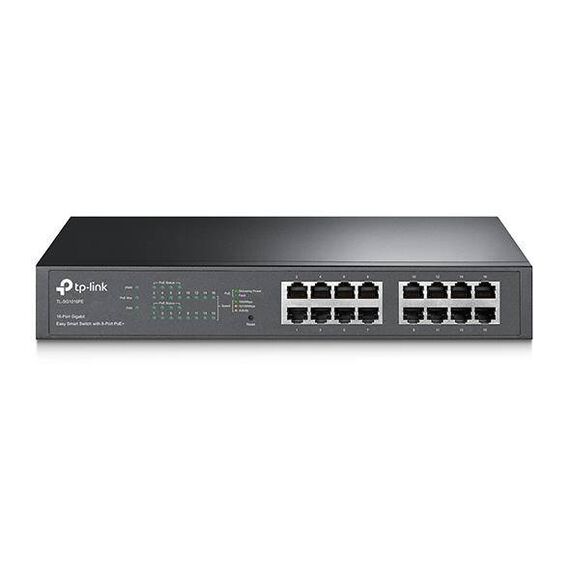

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

Special Features

16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

Product Specification

Device Type	Switch - 16 ports - smart
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 8 x 10/100/1000
Power Over Ethernet (PoE)	PoE+
PoE Budget	110 W
Performance	Forwarding performance: 23.8 Mpps ¦ Switching capacity: 32 Gbps
Capacity	Virtual interfaces (VLANs): 128 ¦ IGMP snooping groups: 128
MAC Address Table Size	8K entries
Jumbo Frame Support	9KB
Features	Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Quality of Service (QoS), Cable Diagnostics Function, fanless, loop prevention, DiffServ Code Point (DSCP) support, Storm Control, Link Aggregation
Compliant Standards	IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at
Interfaces	8 x 1000Base-T - RJ-45 - PoE+ ¦ 8 x 1000Base-T - RJ-45
Voltage Required	AC 120/230 V (50/60 Hz)
Compliant Standards	FCC
Width	29.4 cm
Depth	18 cm
Height	4.4 cm
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 90% (non-condensing)
