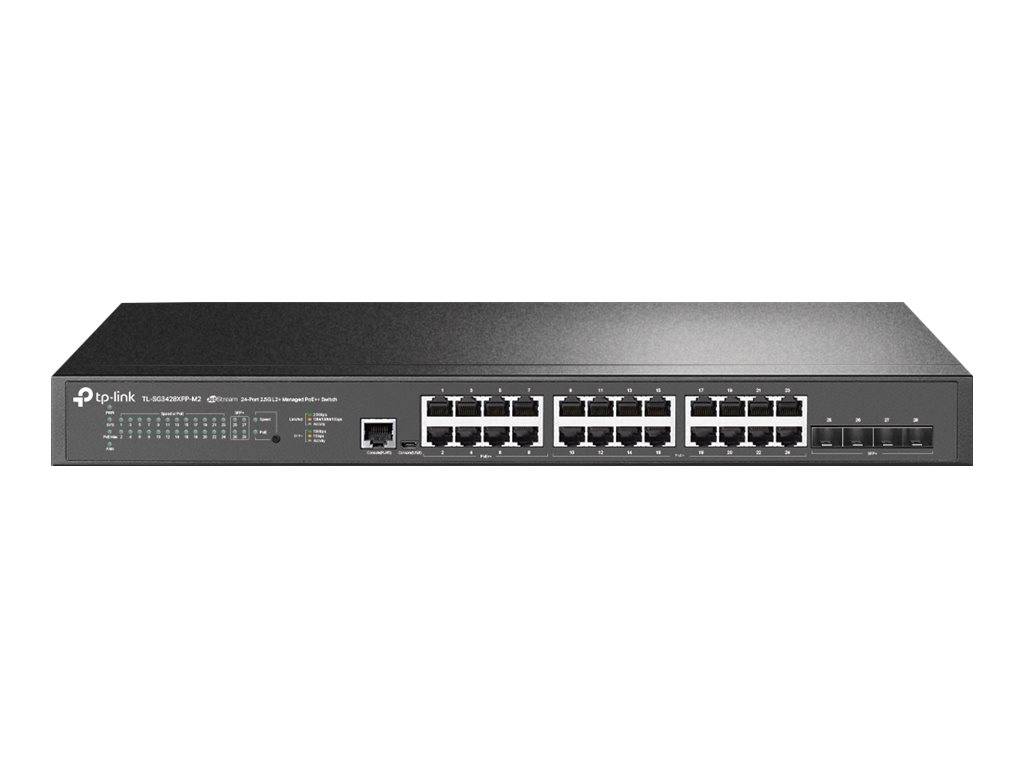

TP-Link JetStream TL-SG3428XPP-M2 V1 / Switch / L2+ / Managed / 16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+ / rack-mountable / PoE++ (500 W) | TL-SG3428XPP-M2
Please sign in so that we can notify you about a reply
Special Features
- 2.5 Gbps speed
- 10G Lightning-Fast uplink
- Integrated into Omada SDN
- Centralized management
- Static routing
- Robust security strategies
- Optimize voice and video applications
- Standalone management
Product Specification
| Device Type | Switch - 24 ports - L2+ - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 500 W |
| Performance | Switching capacity: 200 Gbps ¦ Packet forwarding rate: 148.80 Mpps |
| Capacity | IP interfaces: 32 ¦ Packet buffer size: 16 MB ¦ Static routes: 48 ¦ IGMP groups: 511 ¦ Priority queues: 8 ¦ Maximum aggregation groups: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ VLAN groups: 4000 ¦ MAC addresses per port: up to 64 ¦ Static ARP entries: 128 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB |
| Encryption Algorithm | SSL, SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, LLDP support, DHCP relay, Port Security, Management Information Base (MIB), Multicast VLAN Registration (MVR), port isolation, Class of Service (CoS), Strict Priority (SP), tagged VLAN, 802.1x authentication, DiffServ Code Point (DSCP) support, 3 fans, MAC and IP-based ACLs support, Storm Control, system log, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Link Aggregation, Management Information Base (MIB) II, dual image support, Software Defined Networking (SDN), fast leave, Authentication, Authorization and Accounting (AAA), Voice VLAN, IP/Mac/Port Binding (IPMB), Private VLAN, Guest VLAN, VLAN group, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, MAC Access Bypass (MAB), queue scheduling support, schedule reboot, DSCP prioritisation, DHCPv6 snooping, Media Endpoint Discovery (LLDP-MED) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 10/100/1000/2.5G RJ-45 PoE+ - 30 W ¦ 8 x 10/100/1000/2.5G RJ-45 PoE++ - 60 W ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x micro-USB console |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 629.1 Watt |
| Power Consumption Stand by | 24.2 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | Software / System Requirements |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
Features - TP-LINK - SG3428XPP-M2
General
16-Port
More Details
Product Code
CJ89235
EAN Code
4897098689738
Manufacturer
TP-LINK
