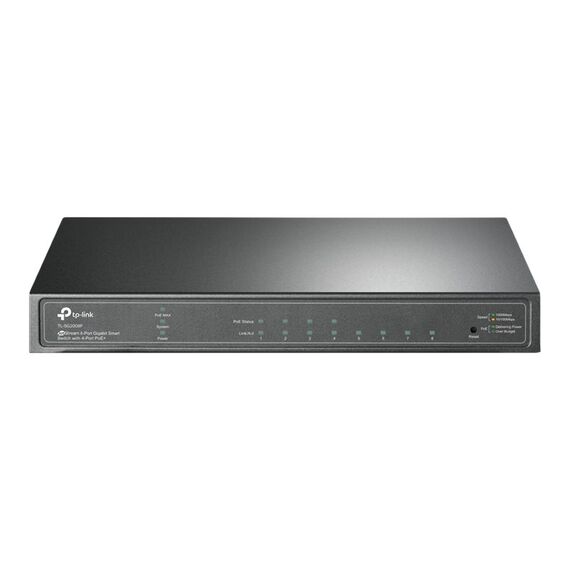

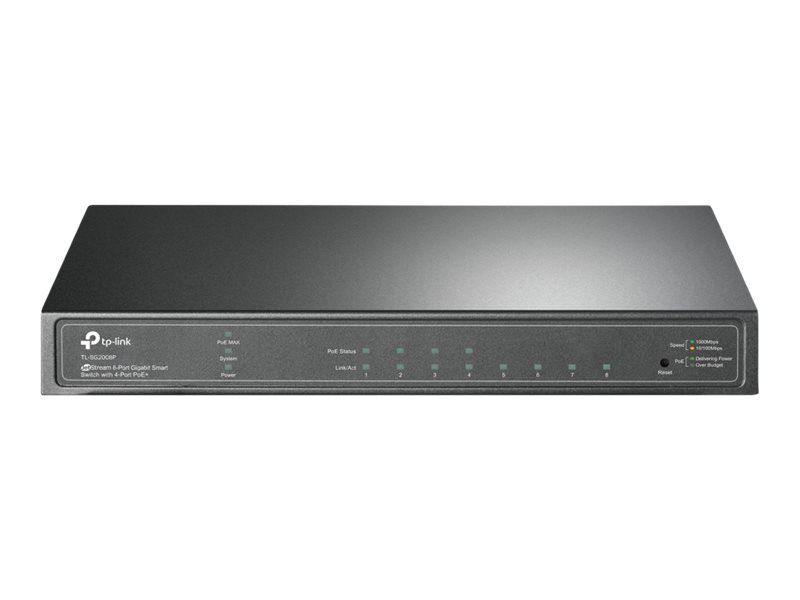

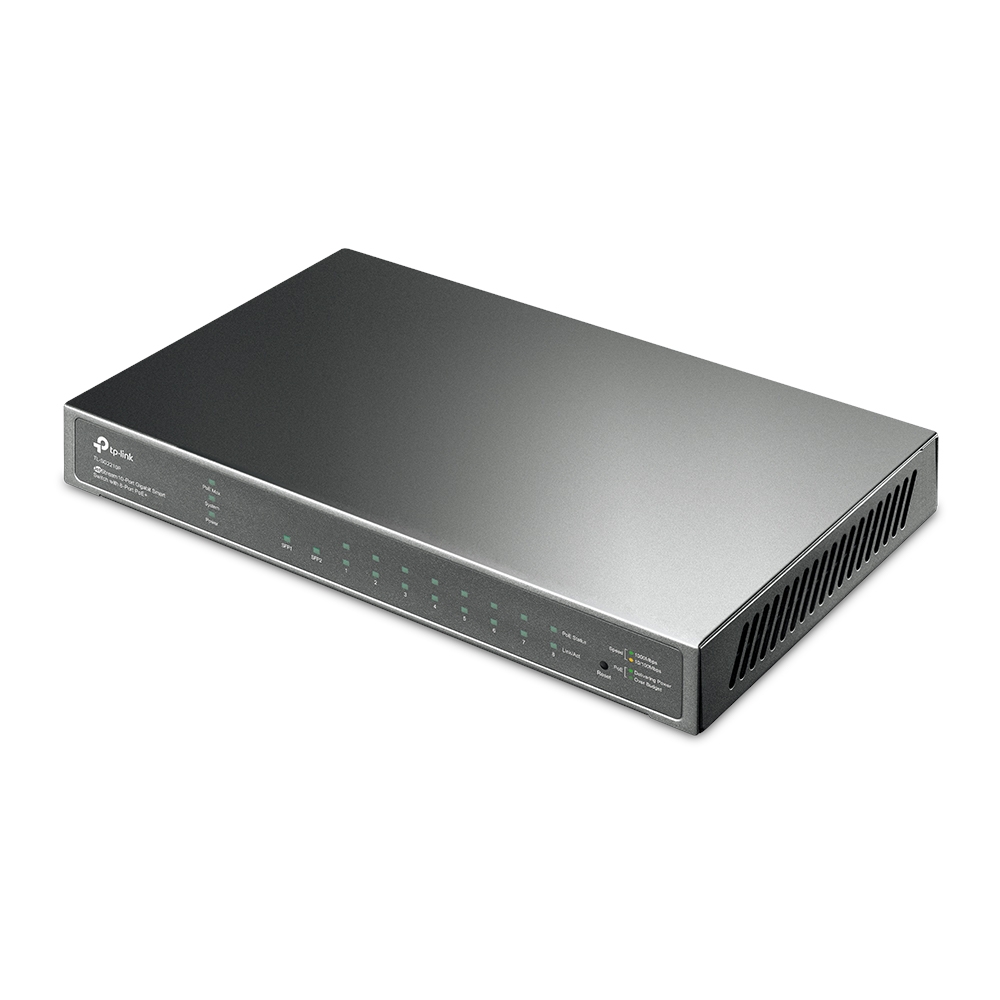

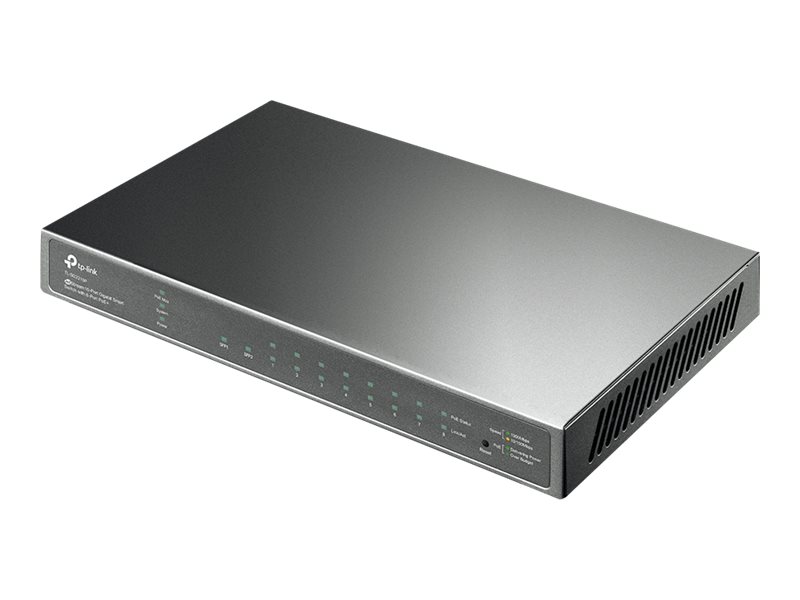

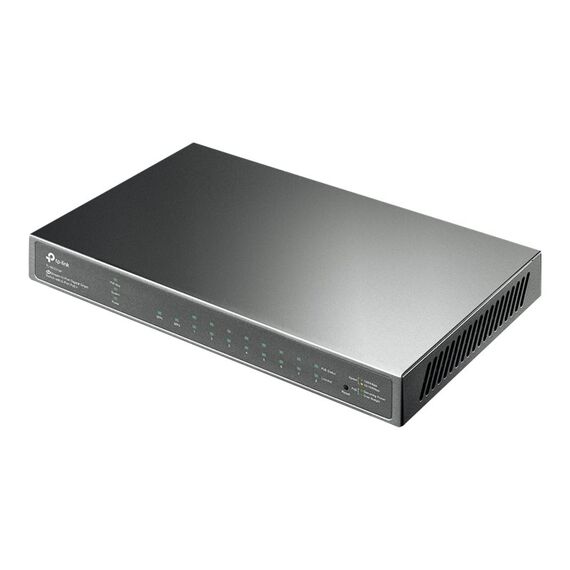

TP-Link JetStream TL-SG2008P / V3.0 / switch / smart / 8 x 10/100/1000 / desktop, wall-mountable | TL-SG2008
Please sign in so that we can notify you about a reply
Special Features
- 62 W PoE budget
- Full Gigabit ports
- Integrated into Omada SDN
- Centralized management
- Robust security strategies
- Optimize voice and video applications
Product Specification
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Bandwidth: 16 Gbps Packet forwarding rate: 11.9 Mpps Packet buffer size: 4.1 Mbit |
| Capacity | IP interfaces: 16 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS |
| Encryption Algorithm | MD5, SSL, SSL 3.0, PEAP, TLS 1.2, EAP-TLS, EAP-TTLS |
| Authentication Method | Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS |
| Features | Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 256 MB |
| Flash Memory | 32 MB |

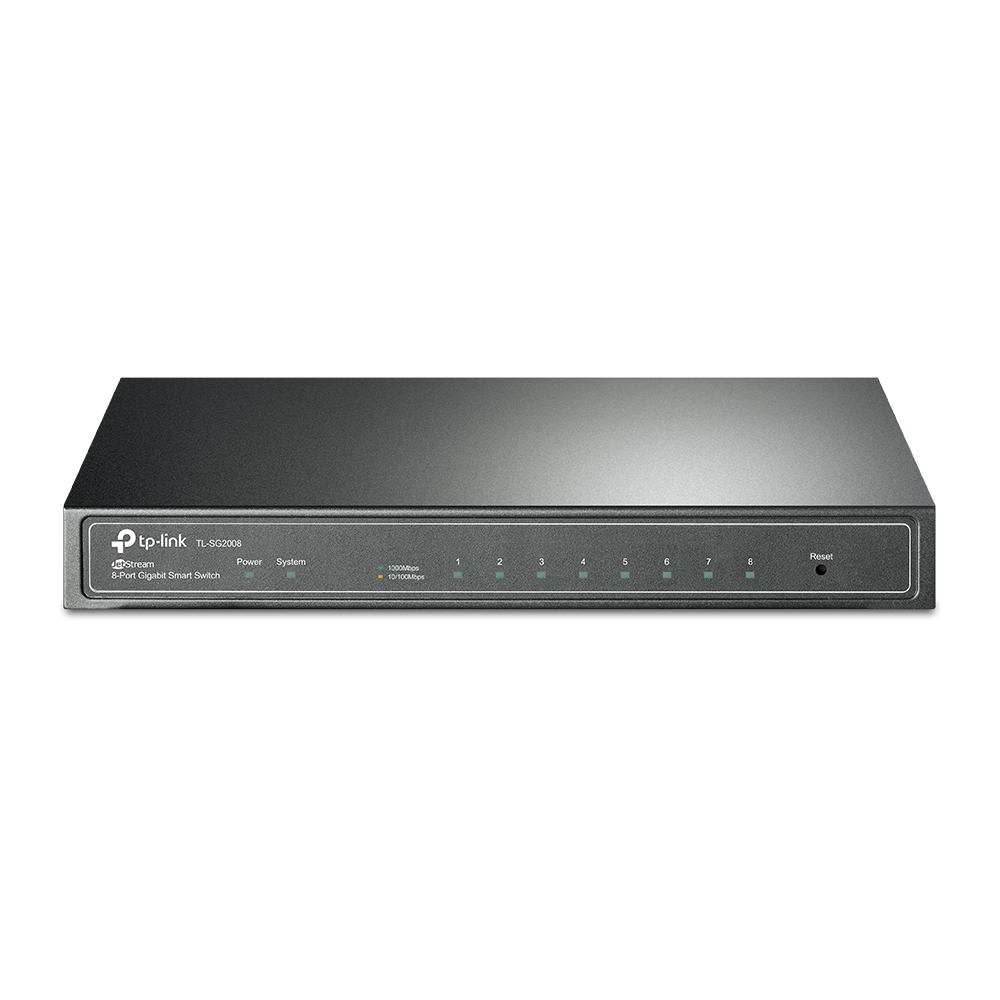

| Status Indicators | Power, system |
| Expansion / Connectivity | Expansion / Connectivity |

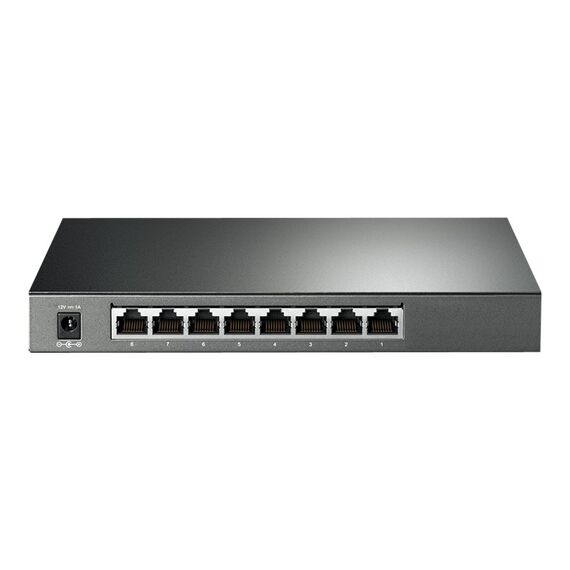

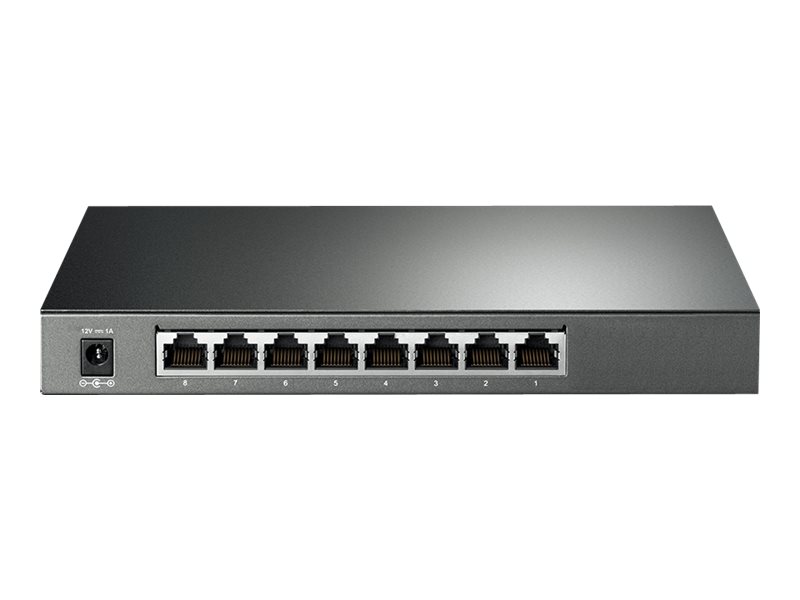

| Interfaces | 8 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | DC 12 V |
| Power Consumption Operational | 6.4 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Compliant Standards | FCC, RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20.9 cm |
| Depth | 12.6 cm |
| Height | 2.6 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |

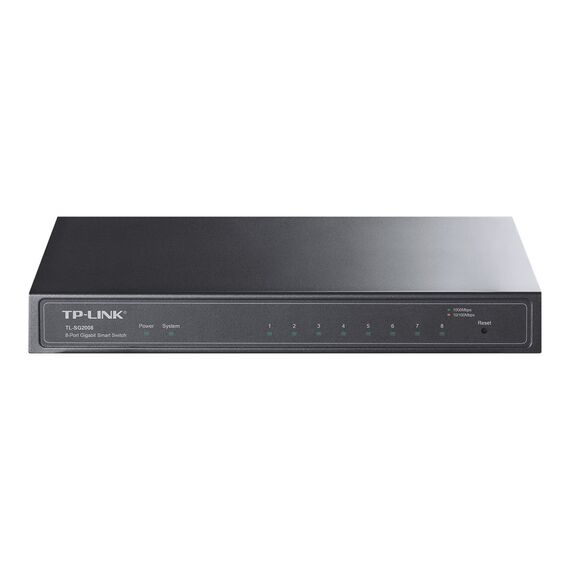

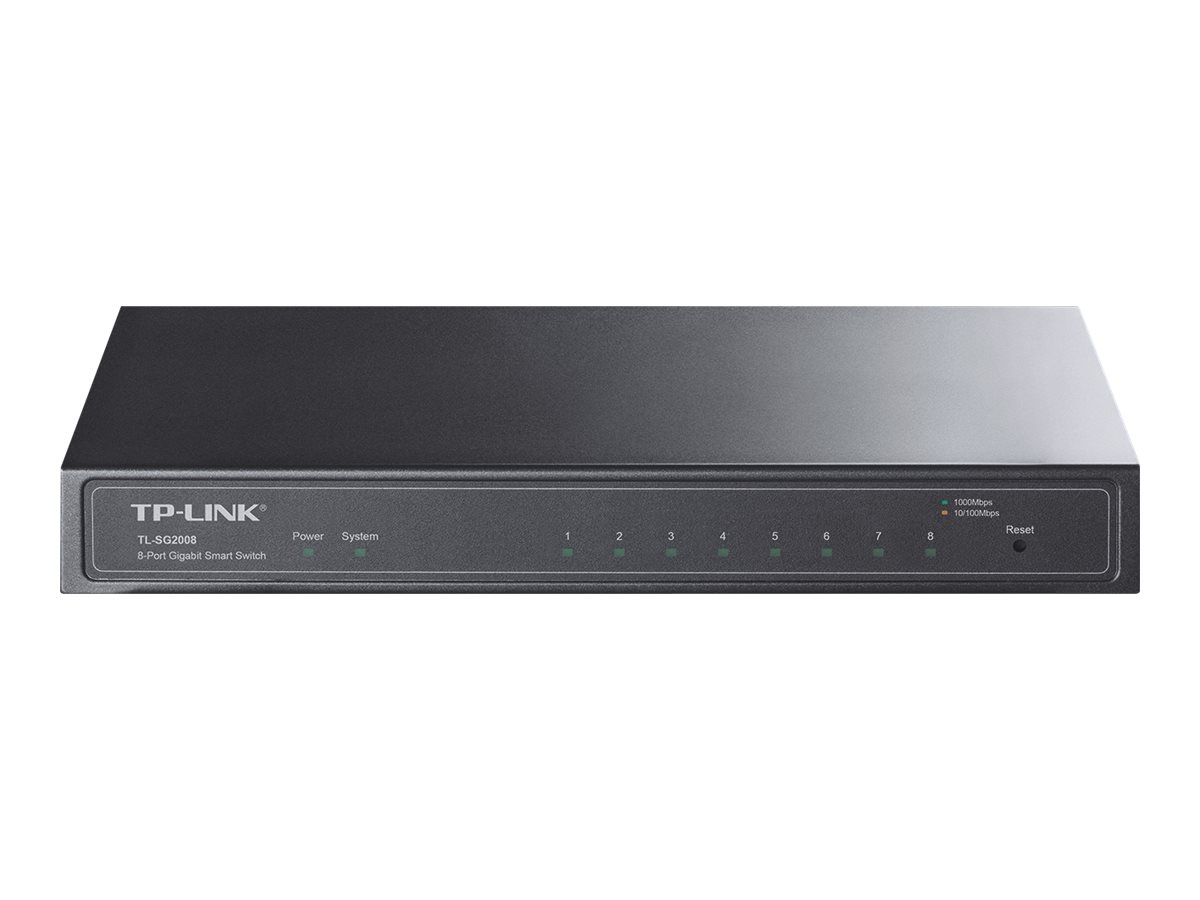

Features - TP-LINK - TL-SG2008
General
8-Port
More Details
Product Code
07:127252
EAN Code
6935364010546
Manufacturer
TP-LINK
