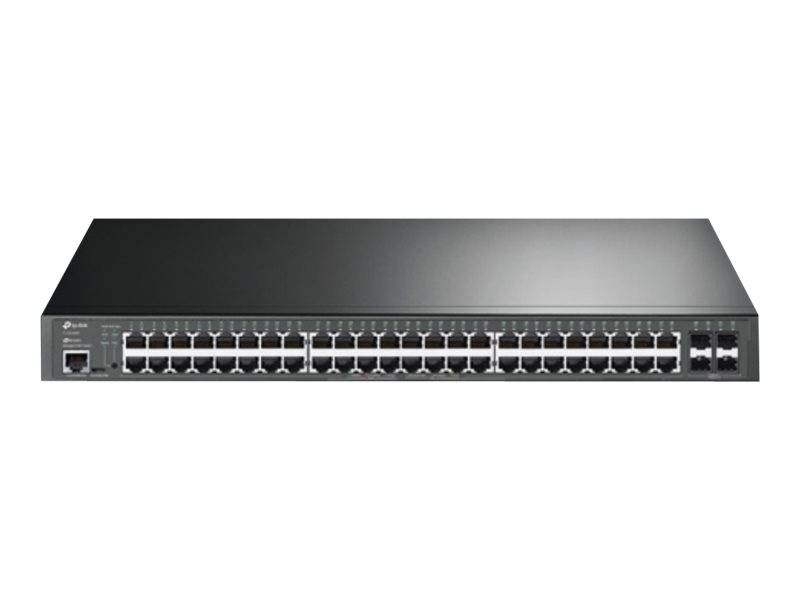

TP-Link JetStream TL-SG3452P V1 / Switch / Managed / 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / rack-mountable / PoE+ (384 W) | TL-SG3452P
Please sign in so that we can notify you about a reply
Special Features
- 48 802.3at/af-compliant PoE+ ports with a total power supply of 384 W
- 48 gigabit RJ45 ports and four gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized management: cloud access and Omada app for ultra-convenience and easy management
- Static routing: helps route internal traffic for more efficient use of network resources
- Robust security strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1x, Radius Authentication, and more
- Optimize voice and video applications: L2/L3/L4 QoS and IGMP snooping
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Product Specification
| Device Type | Switch - 52 ports - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 384 W |
| Performance | Switching capacity: 104 Gbps ¦ Packet forwarding rate: 77.38 Mpps |
| Capacity | IP interfaces: 16 ¦ IPv4 routes (static): 48 ¦ IPv6 routes (static): 48 ¦ Packet buffer size: 12 Mbit |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, OAM, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | SSL, SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, VPN support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, Device Link Detection Protocol (DLDP) support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Multicast VLAN Registration (MVR), Neighbor Discovery Protocol (NDP), port isolation, Class of Service (CoS), Strict Priority (SP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, cloud managed, DiffServ Code Point (DSCP) support, 3 fans, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), dual image support, Software Defined Networking (SDN), Authentication, Authorization and Accounting (AAA), LLDP-MED, VLAN group, guest access, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Advanced QoS, MAC Access Bypass (MAB), security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x micro-USB console |
| Power | Power |
| Power Device | Internal power supply |
| Power Consumption Operational | 463.8 Watt |
| Power Consumption Stand by | 27.2 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - TP-LINK - SG3452P
General
48-Port
More Details
Product Code
07:131477
EAN Code
6935364006273
Manufacturer
TP-LINK
