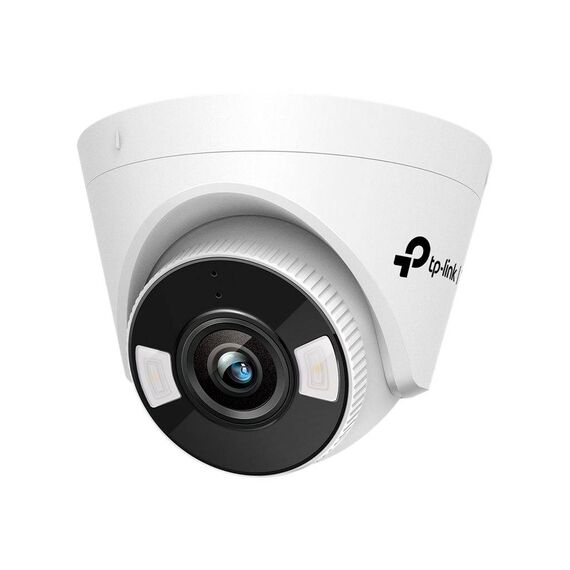

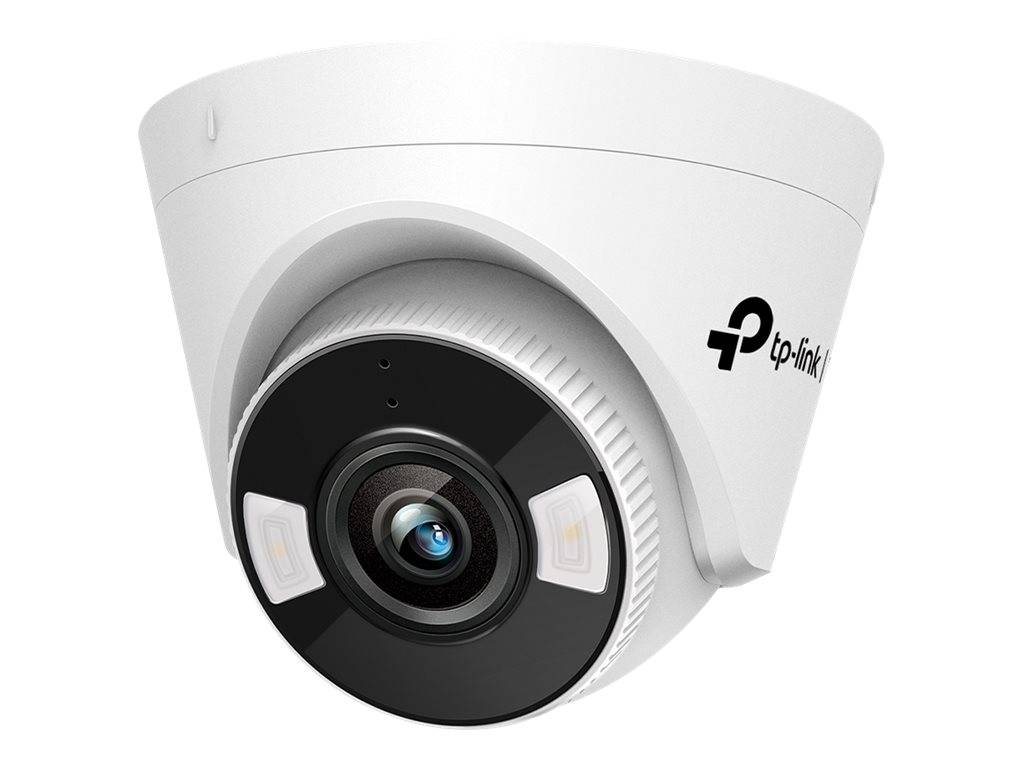

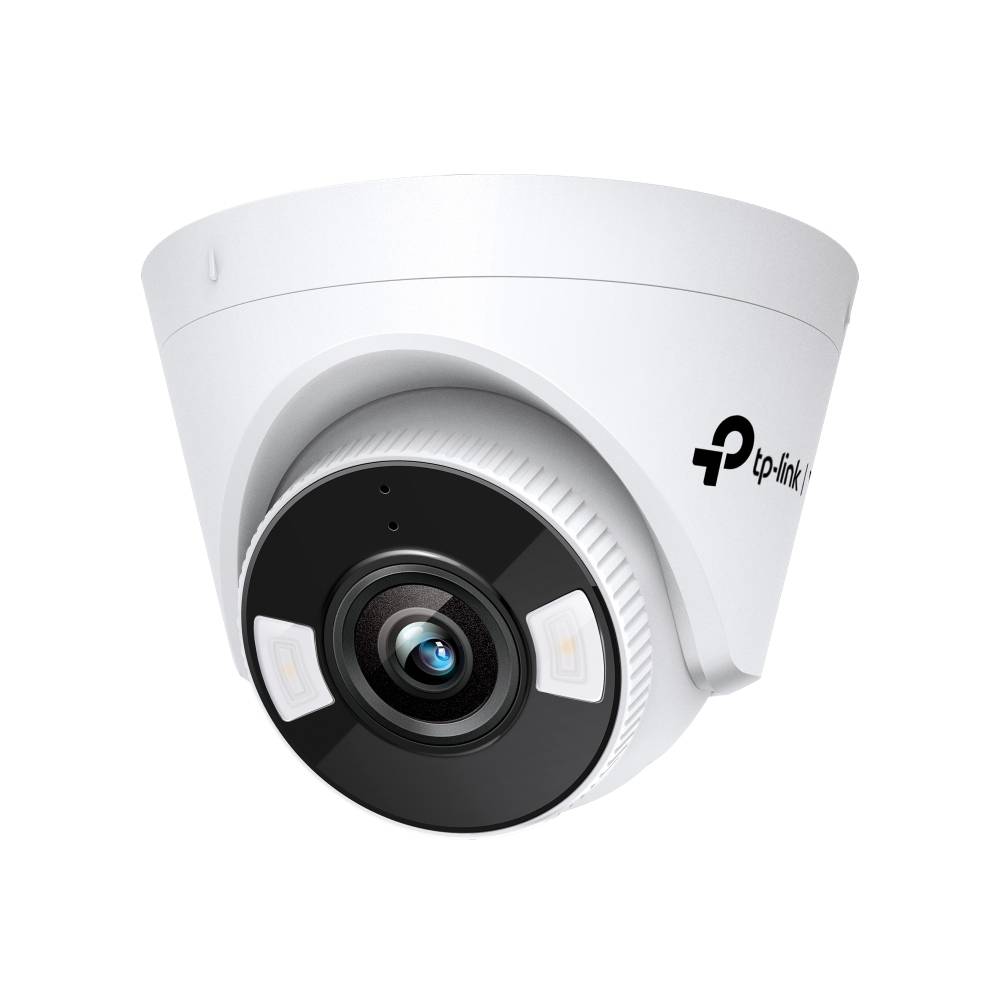

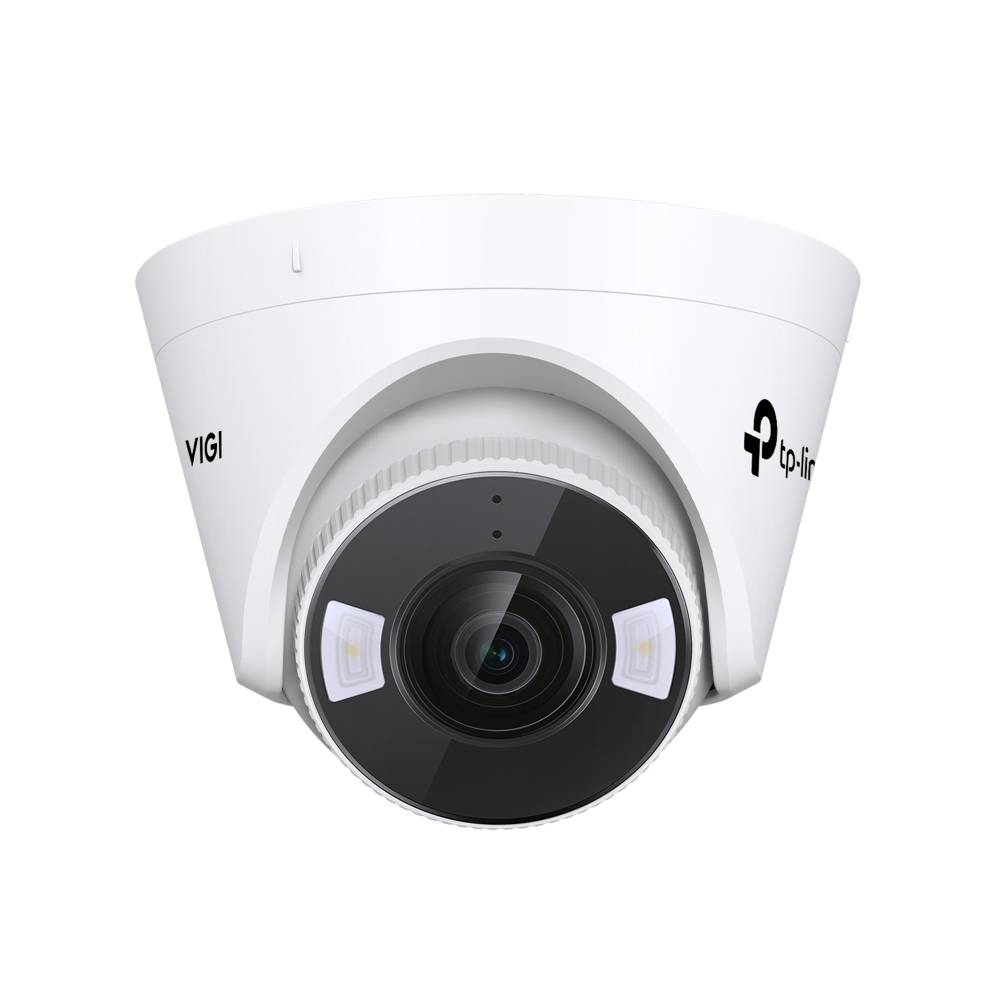

TP-Link VIGI C430 V1 / Network surveillance camera / pan / tilt / turret / colour (Day&Night) / 3 MP / 2304 x 1296 / M12 mount / fixed focal / audio / LAN 10/100 / H.265+, H.265, H.264+, H.264 / DC 12 V / PoE | VIGI C430(2.8mm)
Please sign in so that we can notify you about a reply
Product Features
- Clarity and colors, all in one
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. - Human and vehicle classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications. - Smart detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects. - No more silent surveillance
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind. - Never miss a detail
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision. - More compression, more savings, same quality
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. - Plug-and-Play with one cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. - Flexible management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Special Features
- 3MP super-high definition
- 24h full-color
- Human and vehicle classification
- Smart detection
- Built-in microphone
- H.265+
- Smart video enhancement
- PoE/12 V DC
- Flexible management
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Form Factor | Turret |
| Camera Mount Type | Ceiling mount, wall mount |
| Connectivity Technology | Wired |
| Width | 12.3 cm |
| Depth | 12.3 cm |
| Height | 8.3 cm |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt |
| Digital Video Format | H.265+, H.265, H.264+, H.264 |
| Max Digital Video Resolution | 2304 x 1296 |
| Motion Detection | Yes |
| Minimum Illumination | 0.005 lux - colour 0 lux - white light 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 2304 x 1296, 2048 x 1280, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| Features | Smart Detection, human and vehicle filtering, object removal detection, Line Crossing Detection, Camera Tampering Detection, Abandoned Object Detection, Smart IR, Wide Dynamic Range (WDR), 3D digital noise reduction (DNR), infrared cut filter, Vehicle Detection, region entrance detection, region exiting detection, Open Network Video Interface Forum (ONVIF), HTTPs encryption, Backlight Compensation (BLC), Highlight Compensation (HLC), image mirror, brightness control, contrast control, saturation control, sharpness control, exposure control, white balance, 2 video streams, password reset via e-mail, IP address filtering, digest authentication, reset button, plastic housing, Privacy Mask Function, intrusion detection, human detection, Digital Wide Dynamic Range (D-WDR) |
| Image Sensor | Image Sensor |
| Type | 3 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 107.5 |
| Vertical Field of View (degree) | 57.2 |
| Diagonal Field of View (degree) | 128.7 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | 0 to 85 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | TCP/IP, UDP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL, TLS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting hardware |
| Compliant Standards | IEC 62368-1, IEEE 802.3af, IEEE 802.3at, BSMI, VCCI |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
Features - TP-LINK - VIGI C430(2.8mm)
More Details
Product Code
09:VIGI C430(2.8mm)
EAN Code
4897098689929
Manufacturer
TP-LINK
