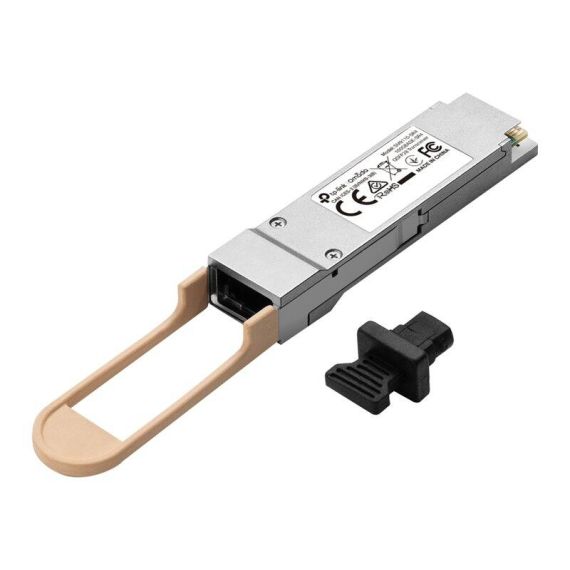

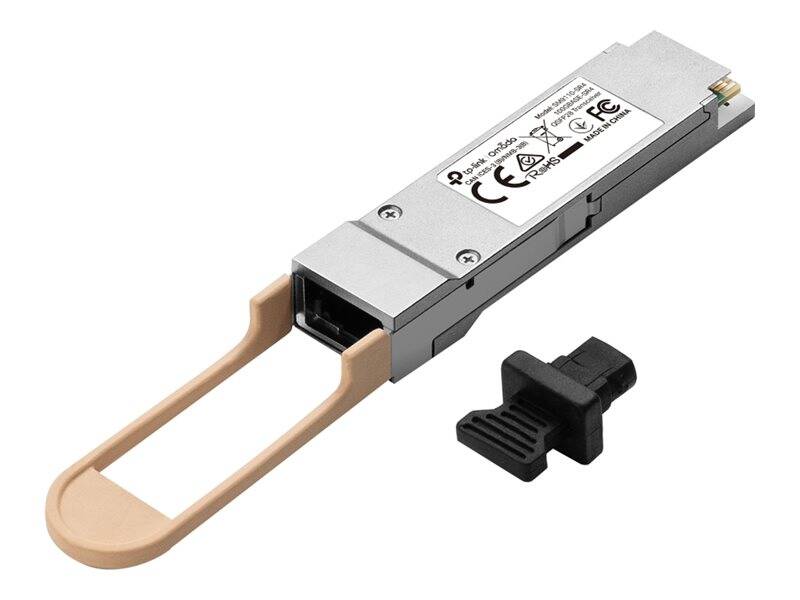

TP-Link Omada SM9110-SR4 V1 - QSFP28 transceiver module - 100GbE, CPRI, eCPRI - 100GBase-SR4, 40GBASE-SR4 - MTP/MPO-12 multi-mode - up to 150 m - 850 nm | SM9110-SR4(UN)
Please sign in so that we can notify you about a reply
Product Features
- High-speed connectivity
The TP-Link Omada SM9110-SR4 V1 offers a data transfer rate of 103.125 Gbps, ensuring rapid and reliable data transmission for demanding networking environments. - Flexible installation
Designed as a plug-in module, this transceiver allows for easy integration into existing network infrastructure without the need for significant adjustments. - Robust environmental performance
With an operating temperature range of 0°C to 70°C and humidity tolerance of up to 85% RH, the module is built to perform consistently in diverse conditions. - Widespread compatibility
Compliant with various standards, including IEEE 802.3ba and RoHS, this product is suitable for a range of applications and ensures seamless interoperability. - Maximum transfer distance
The transceiver can achieve a maximum transfer distance of 150 m, allowing for versatile deployment options in different setups.
Special Fetures
- Supports data transfer rates of 103.125 Gbps
- Hot swappable for easy module exchange
- Operates in a temperature range from 0°C to 70°C
- Compatible with standards including IEEE 802.3ba
- Max transfer distance of 150 m
Product Specification
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-SR4, 40GBASE-SR4 |
| Data Link Protocol | 100GbE, CPRI, eCPRI |
| Data Transfer Rate | 103.125 Gbps |
| Optical Wave Length | 850 nm |
| Remote Management Protocol | TCP/IP |
| Max Transfer Distance | 150 m |
| Features | Digital Diagnostics Monitoring (DDM), hot swappable |
| Compliant Standards | IEEE 802.3bm, IEEE 802.3ba |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-SR4/100GBase-SR4 - MTP/MPO-12 multi-mode female |
| Miscellaneous | |
| Compliant Standards | RoHS, RCM, FCC, WEEE, CAN ICES-3, OM4, QSFP28-MSA |
| Power | |
| Voltage Required | 3.3 V |
| Dimensions & Weight | |
| Width | 12.4 cm |
| Depth | 1.835 cm |
| Height | 1.17 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
Features - TP-LINK - SM9110-SR4(UN)
More Details
Product Code
07:21235758
EAN Code
8885020625493
Manufacturer
TP-LINK
