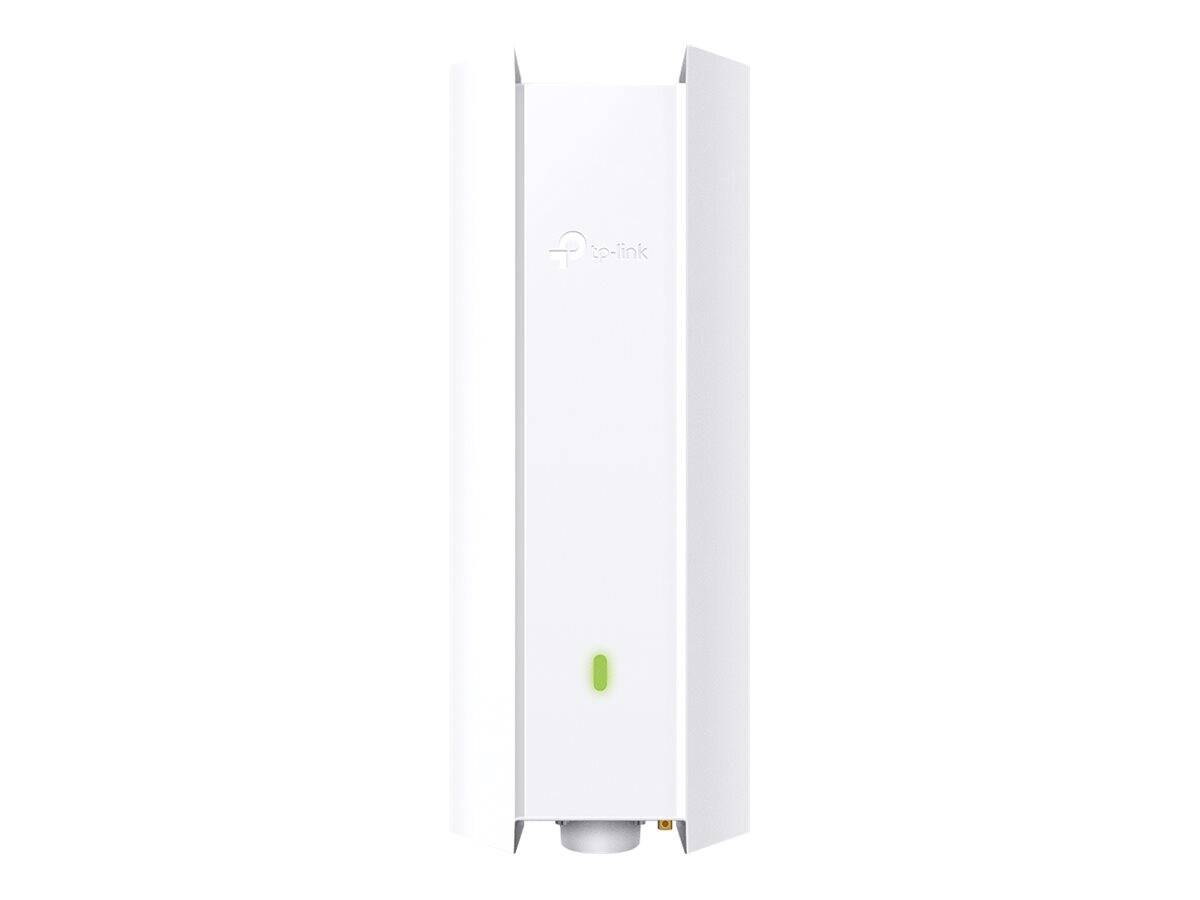

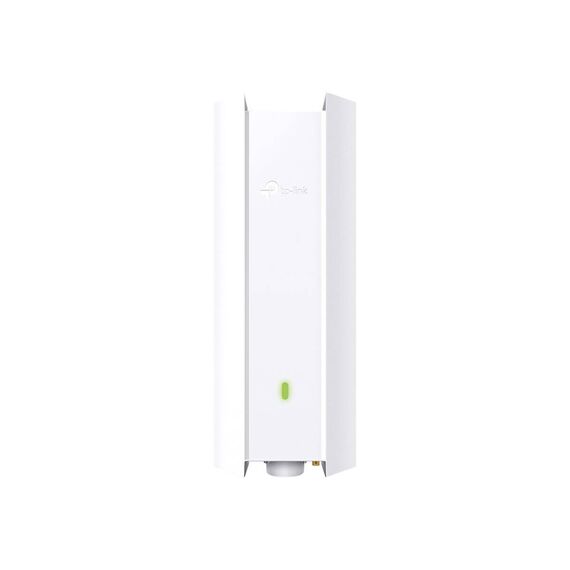

TP-Link Omada EAP623-Outdoor HD V1 - Radio access point - 1GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall / pole mountable | EAP623-OUTDOOR HD
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor, indoor |
| Width | 10.65 cm |
| Depth | 5.68 cm |
| Height | 28.04 cm |
| Weight | 789 g |
| Networking | |
| Form Factor | Wall / pole mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.8 Gbps |
| Line Coding Format | 1024 QAM, OFDMA |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | NTP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, SSH, NTP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 ¦ SSIDs per wireless band: 8 ¦ Number of concurrent clients: 1000+ ¦ Maximum MAC filters: 4000 |
| Wi-Fi Rating | AX1800 |
| Status Indicators | Status |
| Features | Load balancing, VLAN support, firmware upgradable, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Access Control List (ACL) support, Quality of Service (QoS), static IP mode, reset button, e-mail notification, Captive Portal, 802.1x authentication, beamforming technology, band steering, rate limit, Wireless Scheduler, MAC address authentication, seamless roaming, Airtime Fairness, 2x2 MU-MIMO technology, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), client isolation, dustproof, waterproof, schedule reboot, smart aerial, Guest Network, long range, Omada Mesh technology, rogue AP detection, wireless radio enable/disable, 6KV lightning protection (common mode), SSID broadcast |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Authentication Method | Secure Shell (SSH), RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Pole/wall mount kit, waterproof kit |
| Compliant Standards | FCC, RoHS, IP67 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | Power injector (not included) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - EAP623-OUTDOOR HD
More Details
Product Code
CJ77750
EAN Code
4895252506303
Manufacturer
TP-LINK
