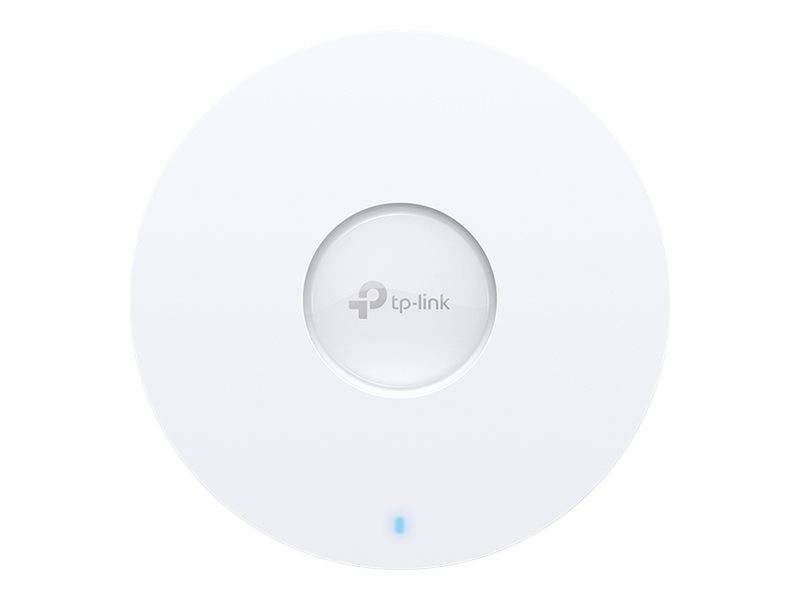

TP-Link Omada EAP650 V1 / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / DC power / cloud-managed / wall / ceiling mountable | EAP650
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 3.36 cm |
| Networking | Networking |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, OFDMA |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 |
| Wi-Fi Rating | AX3000 |
| Status Indicators | Status |
| Features | Load balancing, Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Access Control List (ACL) support, Quality of Service (QoS), reset button, rogue access point detection, Captive Portal, 802.1x authentication, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, Software Defined Networking (SDN), LED on/off button, seamless roaming, Airtime Fairness, schedule reboot, 160MHz bandwidth support, Omada Mesh technology, secure guest network |
| Encryption Algorithm | WPA, WPA-Enterprise, WPA2-Enterprise, WPA3, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Authentication Method | Secure Shell (SSH), Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | Internal |
| Directivity | Omni-directional |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | FCC, RoHS |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
Features - TP-LINK - EAP650
More Details
Product Code
CE23293
EAN Code
4897098683545
Manufacturer
TP-LINK
