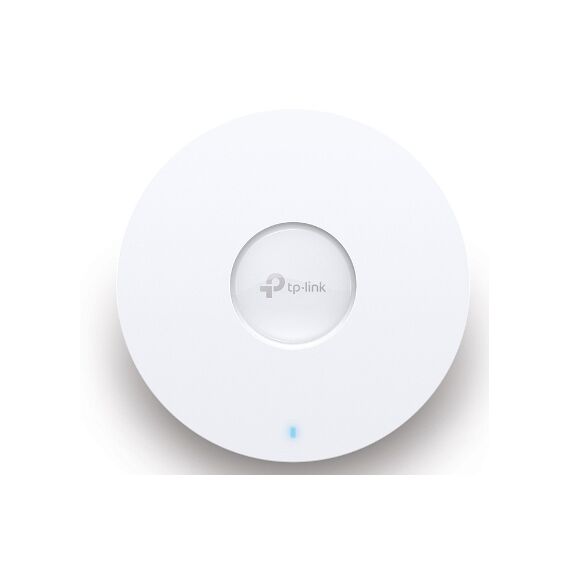

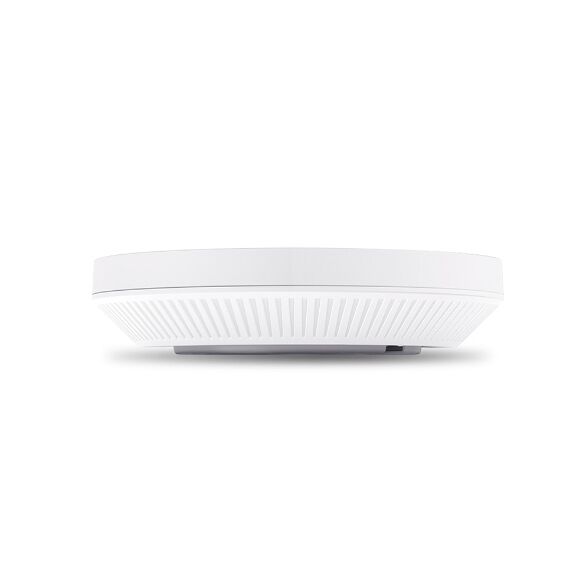

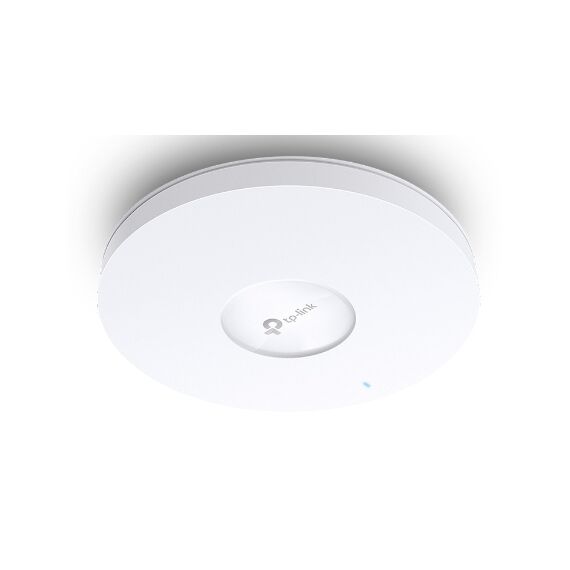

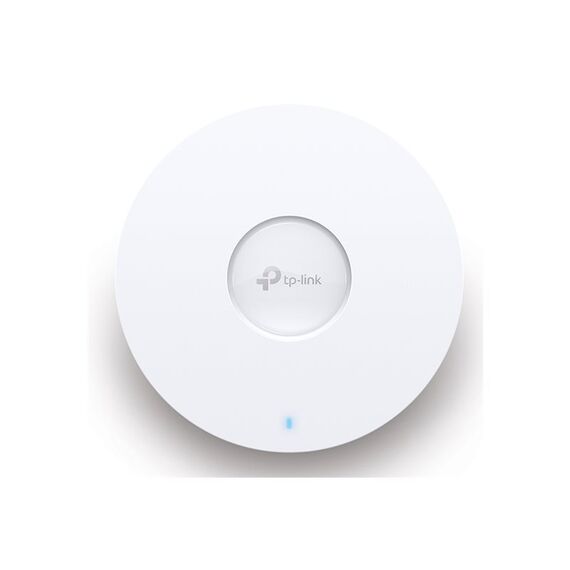

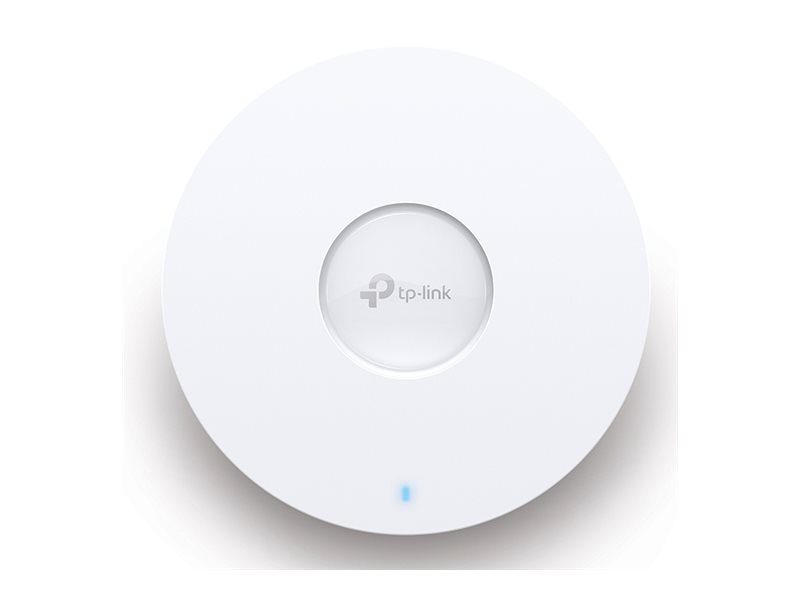

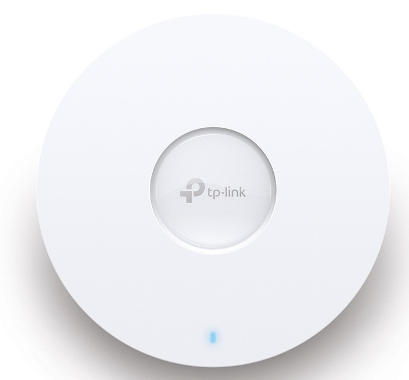

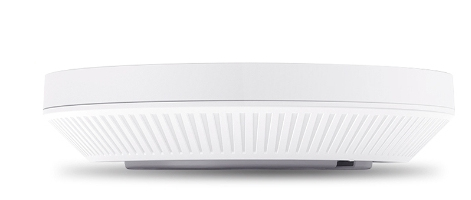

TP-Link Omada EAP653 UR V1 - Radio access point - 1GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall / ceiling mountable | EAP653 UR
Product Features
- Robust security
Equipped with WPA3-Personal and WPA3-Enterprise encryption algorithms, the TP-Link Omada EAP653 UR V1 ensures a secure network environment, protecting sensitive data from potential threats. - Exceptional connectivity
With Wi-Fi 6 technology, this wireless access point supports up to 250+ connected devices and delivers a maximum data rate of 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, ensuring smooth and efficient Internet access for all users. - Comprehensive coverage
Designed for optimal performance, the device offers up to 1,500 sq.ft of coverage, making it an ideal solution for medium to large-sized homes or offices. - Advanced management features
Features such as Omada Mesh technology, seamless roaming, and zero-touch provisioning (ZTP) allow for easy network expansion, maintenance, and management, providing a flexible and efficient networking solution. - Efficient operation
Supports Power over Ethernet (PoE+) for convenient installation and power management, while the MU-MIMO technology ensures a more efficient distribution of Wi-Fi to multiple devices.
Special Fetures
- Wi-Fi 6 technology for faster speeds and more efficient data transmission
- Supports up to 250+ devices with dual-band Wi-Fi offering extensive coverage
- Advanced encryption with WPA3 for enhanced network security
- Seamless roaming and Omada Mesh technology for comprehensive network coverage
- Power over Ethernet (PoE+) support for simplified deployment and flexibility
Product Specification
Device Type | Radio access point |
Width | 16 cm |
Depth | 16 cm |
Height | 3.36 cm |
Networking | |
Form Factor | Wall / ceiling mountable |
Connectivity Technology | Wireless |
Line Coding Format | OFDM, 1024 QAM, OFDMA |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method | OFDM, OFDMA |
Network / Transport Protocol | HTTP, HTTPs |
Routing Protocol | Static IP routing |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz |
Max Coverage Area | Up to 1,500 sq.ft |
Performance | Maximum data rate (2.4 GHz): 574 Mbps <br /> Maximum data rate (5 GHz): 2402 Mbps <br /> Channel bandwidth: 160 MHz |
Capacity | Maximum number of configured SSIDs: 16 <br /> SSIDs per wireless band: 8 <br /> Connected devices: 250+ |
Wi-Fi Rating | AX3000 |
Status Indicators | Status |
Features | Load balancing, VLAN support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, e-mail notification, Captive Portal, 802.1x authentication, MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, MAC address authentication, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), client isolation, schedule reboot, self-healing network, Omada Mesh technology, ACL MAC based, rogue AP detection, wireless radio enable/disable |
Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
Authentication Method | Secure Shell (SSH), Radio Service Set ID (SSID) |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | |
Antenna | Internal |
Directivity | Omni-directional |
Expansion / Connectivity | |

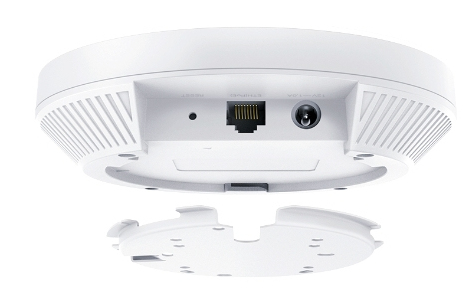

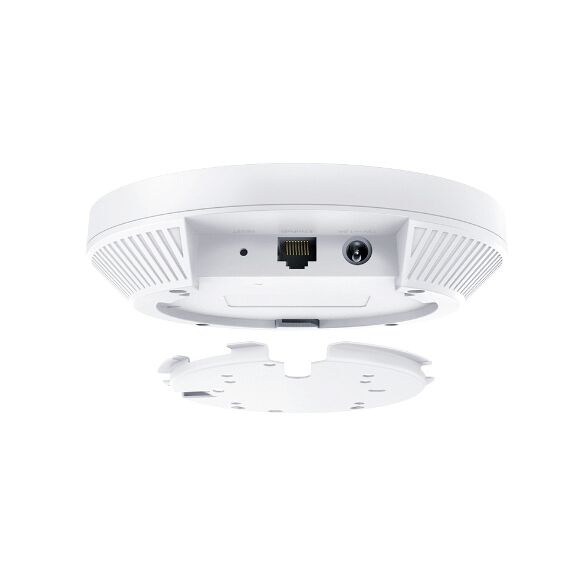

Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
Miscellaneous | |
Included Accessories | Wall/ceiling mounting kit |
Compliant Standards | FCC, RoHS |
Power | |
Power Over Ethernet (PoE) Supported | PoE+ |
Power Device | External power adapter / power injector (not included) |
Power Consumption Operational | 14.2 Watt |
Software / System Requirements | |
Software Included | Omada Controller |
OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% RH (non-condensing) |
