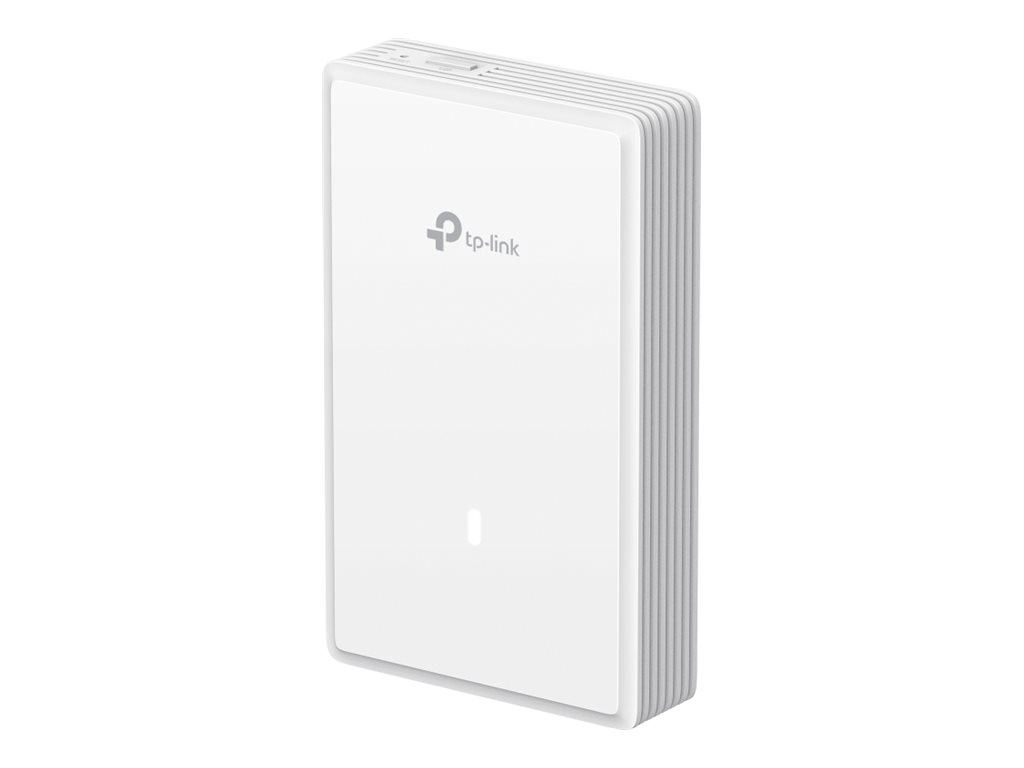

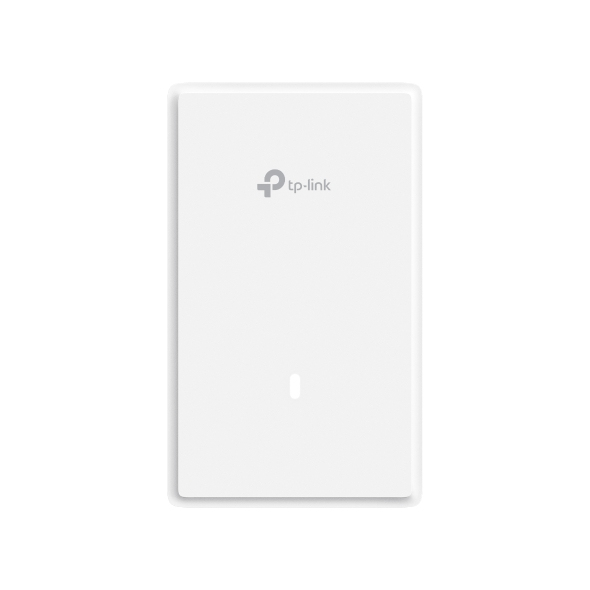

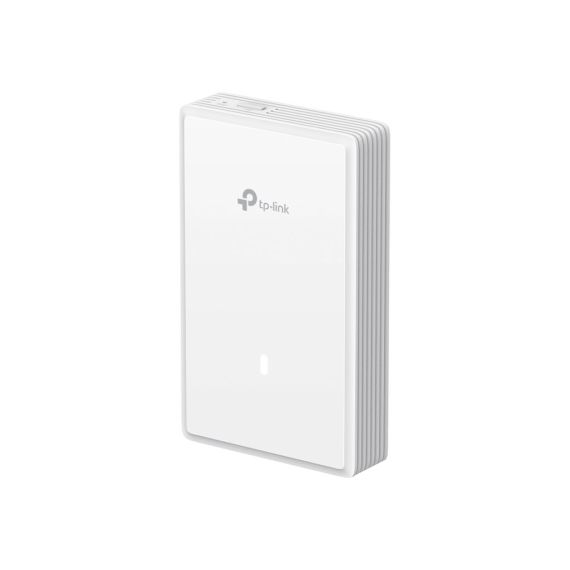

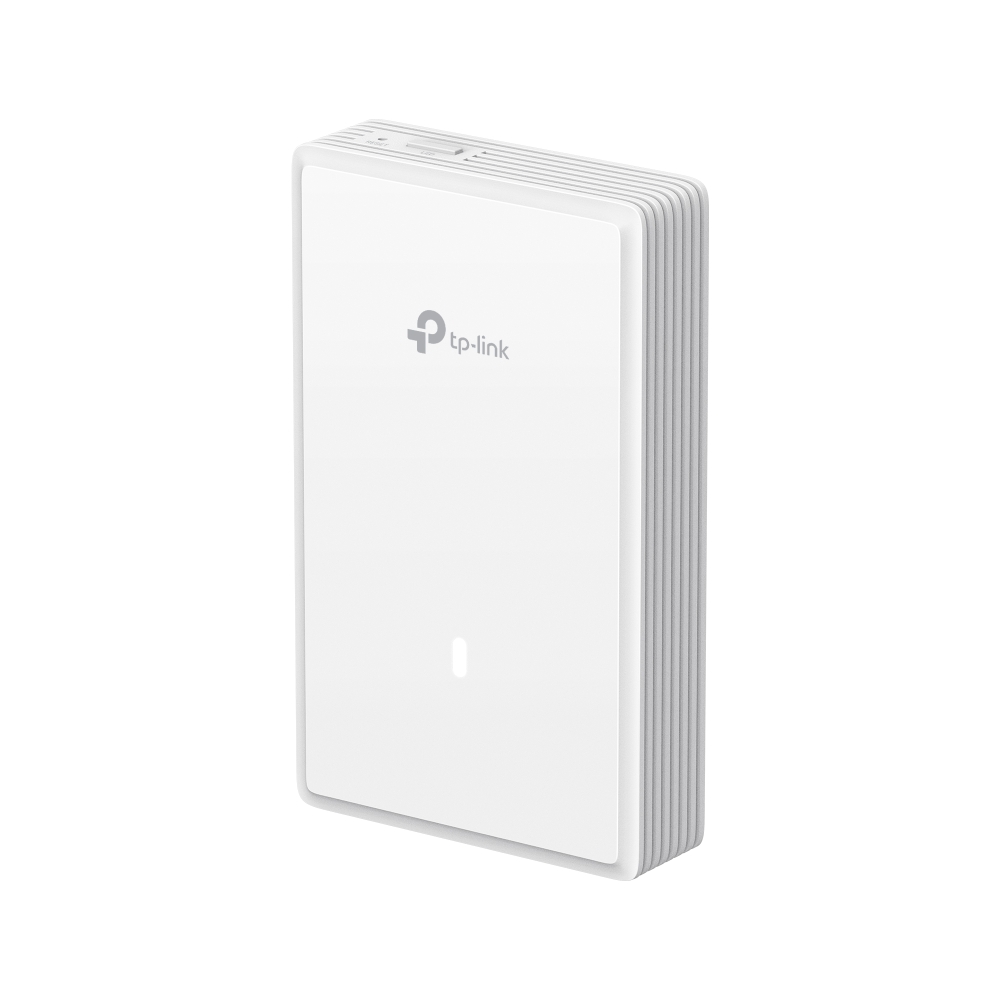

TP-Link Omada EAP725-Wall V1 / Radio access point / 1GbE, 2.5GbE, Wi-Fi 7 / Wi-Fi 7, Bluetooth / 2.4 GHz, 5 GHz / cloud-managed / wall mountable | EAP725-Wall(EU)
Please sign in so that we can notify you about a reply
Product Features
- Robust performance for high-demand applications
The EAP725-Wall supports a data transfer rate of 3.6 Gbps, ensuring high-speed connectivity for demanding applications and multiple users. It is capable of serving up to 4000 connected devices efficiently. - Advanced security protocols for peace of mind
Equipped with various encryption options, including WPA3-Enterprise and WPA2-Personal, this access point offers enhanced security to protect sensitive data and guest connections alike. - Flexible installation with wall-mountable design
The wall-mountable form factor allows for easy installation, making it an excellent choice for office spaces, classrooms, and meeting rooms, effectively covering areas up to 50 sq.m. - Enhanced user experience with smart features
Features like MU-MIMO technology, beamforming, and seamless roaming improve the overall user experience, providing efficient and uninterrupted connectivity as users move through the space. - Comprehensive management and monitoring
Support for cloud management and a variety of remote management protocols ensures that network administrators can efficiently monitor and manage the device for optimal performance.
Special Fetures
- Data transfer rate of 3.6 Gbps ensures fast wireless performance
- Supports up to 4000 connected devices for high-density environments
- Multiple security protocols including WPA3 for enhanced protection
- Wall-mountable design for convenient installation and coverage
- MU-MIMO technology and beamforming for improved wireless efficiency
Product Specification
| Device Type | Radio access point |
| Width | 8.6 cm |
| Depth | 4 cm |
| Height | 14.3 cm |
| Weight | 365.8 g |
| Networking | |
| Form Factor | Wall mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.6 Gbps |
| Line Coding Format | 4096 QAM, OFDMA |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.2 |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | NTP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, SSH, NTP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Max Coverage Area | Up to 50 sq.m |
| Performance | Maximum data rate (2.4 GHz): 688 Mbps <br /> Maximum data rate (5 GHz): 2882 Mbps <br /> Channel bandwidth: 160 MHz |
| Capacity | Connected devices: 250+ <br /> SSIDs per device: 16 <br /> SSIDs per radio: 8 <br /> MAC filter entries: 4000 |
| Wi-Fi Rating | BE3600 |
| Status Indicators | Status |
| Features | PoE Pass Through, Multiple Resource Unit (MRU), seamless roaming, Omada Mesh technology, secure guest network, rogue AP detection, reset button, Captive Portal, Access Control List (ACL) support, client isolation, VLAN support, enable/disable SSID broadcast, wireless radio enable/disable, Auto Channel Select (ACS), Quality of Service (QoS), Wi-Fi Multimedia (WMM) support, beamforming technology, MU-MIMO technology, rate limit, load balancing, Airtime Fairness, band steering, MAC address authentication, schedule reboot, Wireless Scheduler, dynamic IP mode, LED control, MAC-based Access Control (MAC), firmware upgradable, system log, e-mail notification, polycarbonate enclosure, Transmit Power Control (TPC) |
| Encryption Algorithm | WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise |
| Authentication Method | Radio Service Set ID (SSID), RADIUS, Secure Shell (SSH) |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3at, IEEE 802.3bt |
| Aerial | |
| Antenna | Internal |
| Expansion / Connectivity | |

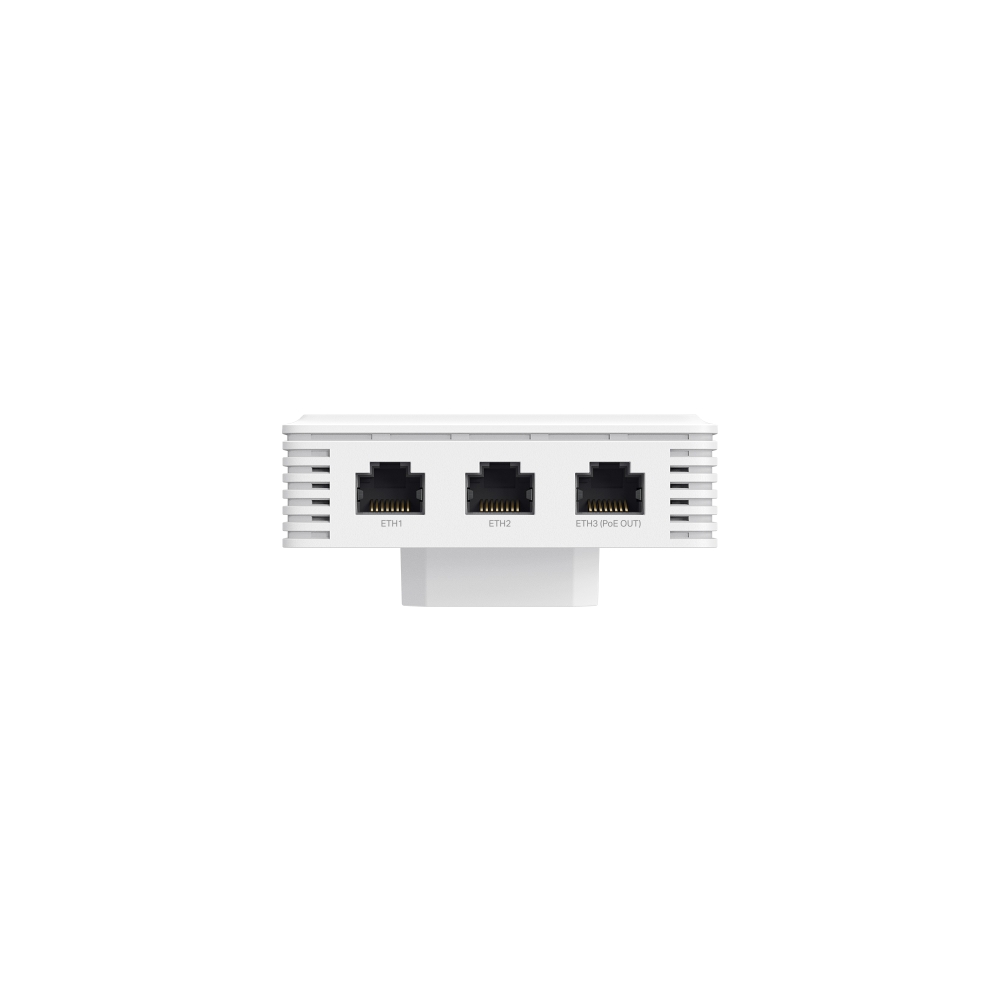

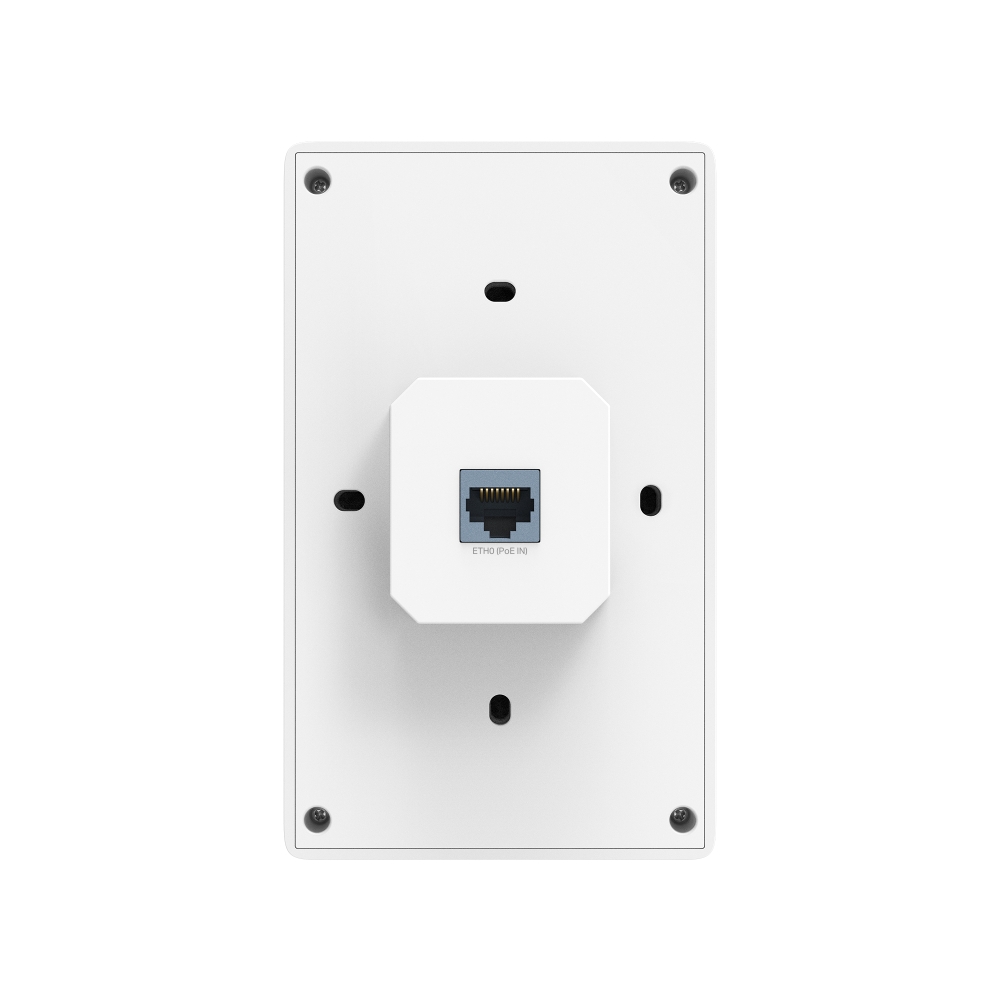

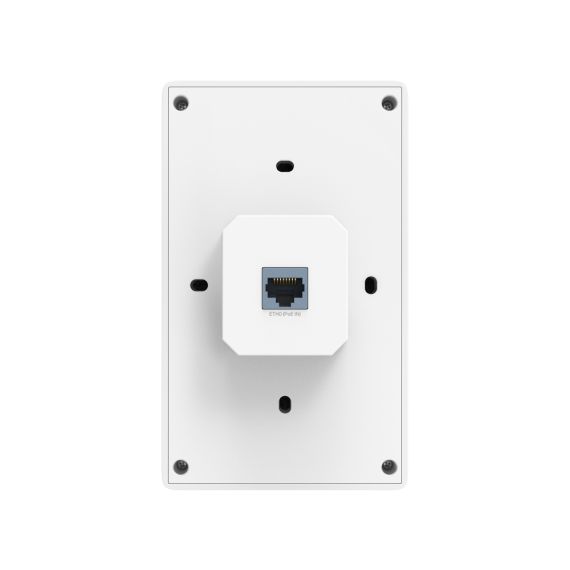

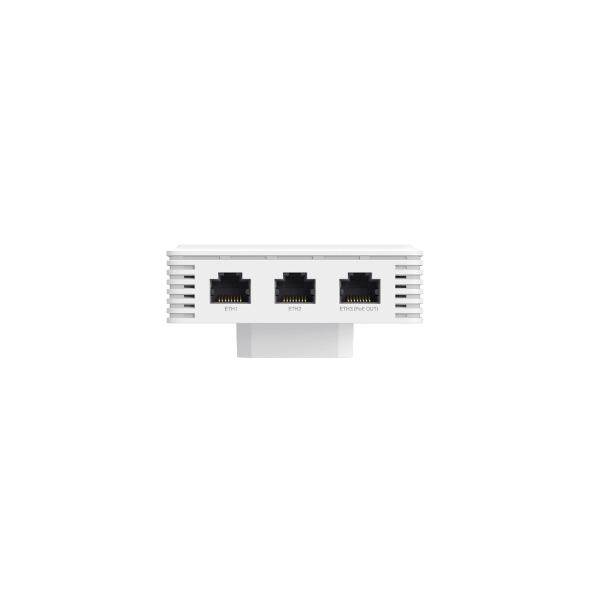

| Interfaces | 2 x 10/100/1000Base-T - RJ-45 <br /> 2 x 100/1000/2500Base-T (PoE++) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Wall mounting kit |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE++ |
| Power Device | Power injector (not included) |
| Software / System Requirements | |
| Software Included | Omada Controller |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 / 11, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - EAP725-Wall
More Details
Product Code
05:21235745
EAN Code
8885020626353
Manufacturer
TP-LINK
