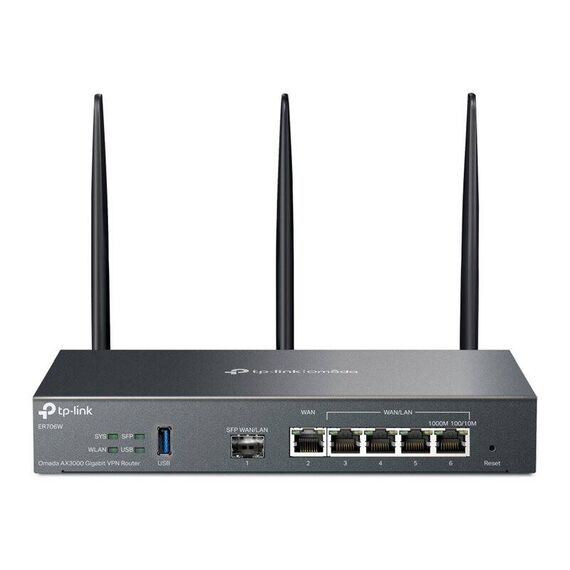

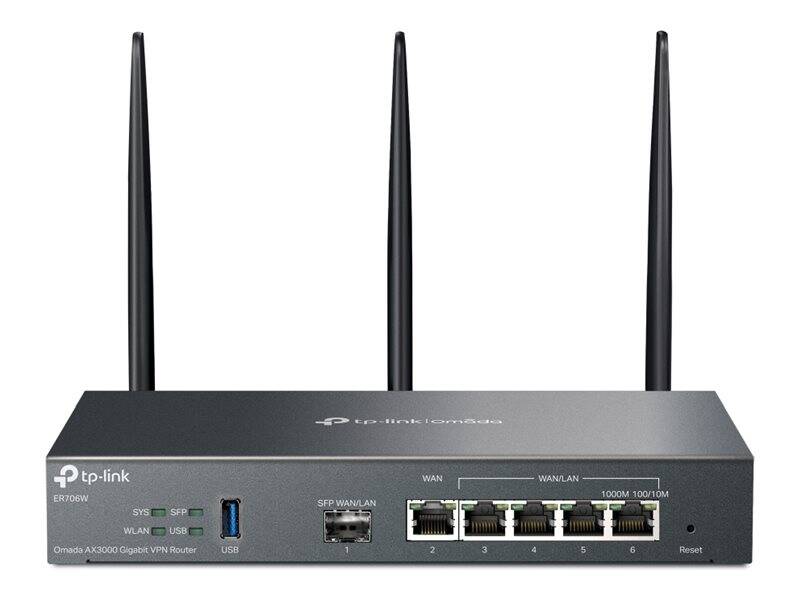

TP-Link Omada ER706W V1 / - wireless router / 4-port switch / 1GbE / WAN ports: 6 / Wi-Fi 6 / Dual Band / wall-mountable | ER706W
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum throughput (5 GHz): 2402 Mbps ¦ Maximum throughput (2.4 GHz): 574 Mbps ¦ Channel bandwidth (5 GHz): 160 MHz ¦ GRE unencrypted throughput: 624.2 Mbps ¦ GRE encrypted throughput: 301.5 Mbps ¦ VPN WireGuard throughput: 393.5 Mbps ¦ VPN throughput (256-bit AES+SHA1 IPSec): 646.9Mbps ¦ VPN throughput (256-bit AES+SHA256 IPSec): 642.8Mbps ¦ VPN throughput (256-bit AES+SHA384 IPSec): 648.9Mbps ¦ VPN throughput (256-bit AES+SHA512 IPSec): 658.4 Mbps ¦ OpenVPN throughput: 129.3 Mbps ¦ VPN unencrypted throughput (L2TP): 1034.0 Mbps ¦ VPN encrypted throughput (L2TP): 570.0 Mbps ¦ VPN unencrypted throughput (PPTP): 1165.0 Mbps ¦ VPN encrypted throughput (PPTP): 209.0 Mbps ¦ VPN throughput (SSL): 126.7Mbps ¦ Download forwarding rate (66-byte packet size): 1453489 pps ¦ Upload forwarding rate (66-byte packet size): 1453488 pps ¦ Download forwarding rate (1518-byte packet size): 81274 pps ¦ Upload forwarding rate (1518-byte packet size): 91275 pps |
| Capacity | Concurrent sessions: 150000 ¦ New sessions per second: 5100 ¦ SSL VPN tunnels: 50 ¦ IPSec VPN tunnels: 100 ¦ PPTP VPN clients: 10 ¦ PPTP VPN tunnels: 50 ¦ L2TP VPN clients: 10 ¦ L2TP VPN tunnels: 50 ¦ OpenVPN clients: 5 ¦ OpenVPN tunnels: 55 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, DDNS, WireGuard, OpenVPN, UDP, TCP |
| Routing Protocol | OSPF, RIP, static IP routing, GRE |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, ICMP, DHCP |
| Encryption Algorithm | DES, MD5, MPPE, SSL, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, WPA-Enterprise, WPA2-Enterprise, IKEv2, 384-bit SHA-2, 512-bit SHA-2, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal, IKEv1, 3DES |
| Authentication Method | RADIUS, LDAP, Extensible Authentication Protocol (EAP) |
| Wi-Fi Rating | AX3000 |
| Features | NAT support, load balancing, Syslog support, ALG support, port mirroring, MAC address filtering, URL filtering, IP address filtering, Mesh networking, Access Control List (ACL) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), reset button, bandwidth control, port triggering, IP-MAC binding, Generic Attribute Registration Protocol (GARP), MU-MIMO technology, ARP inspection, Self Organizing Network (SON) technology, beamforming technology, Perfect Forward Secrecy (PFS), seamless roaming, L2TP over IPSec, DMZ support, remote device cloud access, DynDNS, schedule reboot, DDoS Protection, OpenVPN server, self-healing network, Guest Network, NTP support, session rate limiting, IP policy routing, L2TP VPN client, PPTP VPN server, IPsec failover |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS |
| RAM | 512 MB DDR4 SDRAM |
| Flash Memory | 128 MB |
| Built-in Devices | 3G/4G module |
| Status Indicators | System, WLAN, USB, SFP |
| Line Properties | Line Properties |
| Line Coding Format | 1024 QAM, OFDMA |
| Communications | Communications |
| Digital Signaling Protocol | H.323, SIP |
| IP Telephony | IP Telephony |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 1000Base-X - SFP (mini-GBIC) ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ WAN / LAN: 4 x 1000Base-T - RJ-45 ¦ USB 3.0: 1 x - LTE |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 3 |
| Power | Power |
| Power Device | Internal power supply |
| Software / System Requirements | Software / System Requirements |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 22.6 cm |
| Depth | 13.1 cm |
| Height | 3.5 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - ER706W
More Details
Product Code
CI66985
EAN Code
4895252500691
Manufacturer
TP-LINK
