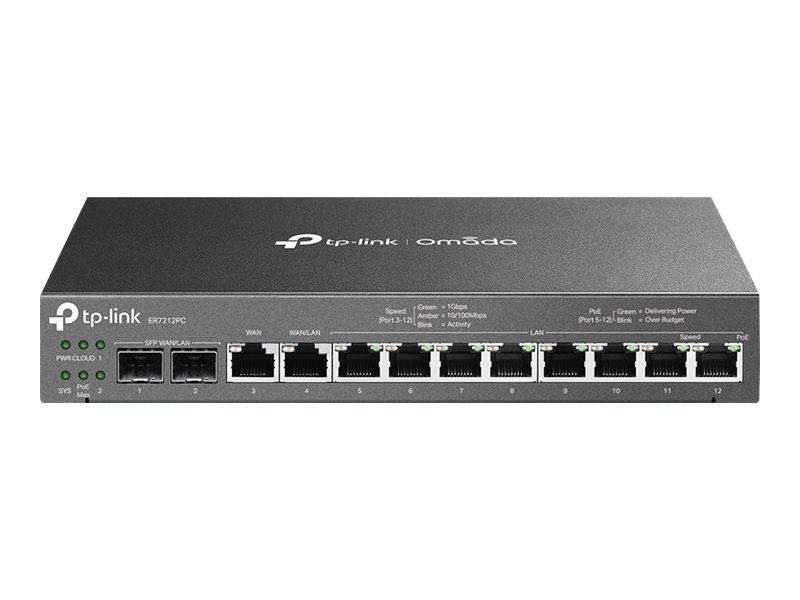

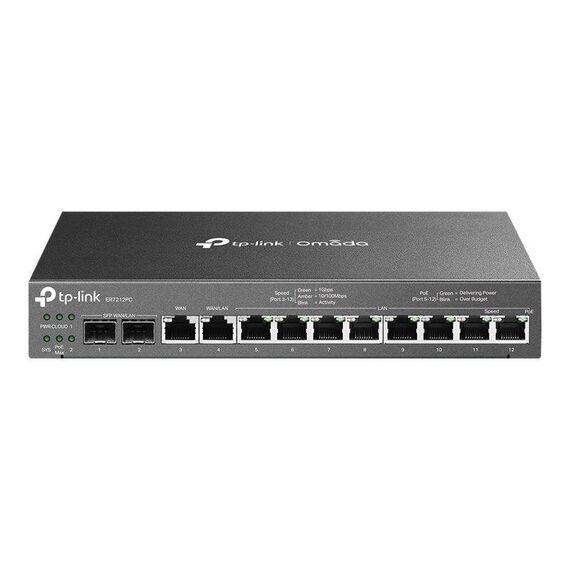

TP-Link Omada ER7212PC V1 / Router / 8-port switch / GigE / WAN ports: 4 / wall-mountable | ER7212PC
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | PoE power budget: 110 Watt ¦ NAT upload throughput (Static IP): 935.5 Mbps ¦ NAT download throughput (Static IP): 942.1 Mbps ¦ NAT upload throughput (DHCP): 940.2 Mbps ¦ NAT download throughput (DHCP): 941.7 Mbps ¦ NAT upload throughput (PPPoE): 913.1 Mbps ¦ NAT download throughput (PPPoE): 935.2 Mbps ¦ NAT upload throughput (L2TP): 545 Mbps ¦ NAT download throughput (L2TP): 912.7 Mbps ¦ NAT upload throughput (PPTP): 523 Mbps ¦ NAT download throughput (PPTP): 912.8 Mbps ¦ VPN throughput (256-bit AES IPSec): 168.5 Mbps ¦ OpenVPN throughput: 34 Mbps ¦ VPN unencrypted throughput (L2TP): 845.3 Mbps ¦ VPN encrypted throughput (L2TP): 333.2 Mbps ¦ VPN unencrypted throughput (PPTP): 1012.6 Mbps ¦ VPN encrypted throughput (PPTP): 401.4 Mbps ¦ Upload forwarding rate (66-byte packet size): 154.069 pps ¦ Download forwarding rate (66-byte packet size): 156.977 pps ¦ Download forwarding rate (1518-byte packet size): 81.193 pps ¦ Upload forwarding rate (1518-byte packet size): 81.193 pps |
| Capacity | Concurrent sessions: 24980 ¦ New sessions per second: 1900 ¦ IPSec VPN tunnels: 20 ¦ PPTP VPN tunnels: 16 ¦ PPTP VPN clients: 10 ¦ L2TP VPN tunnels: 16 ¦ L2TP VPN clients: 10 ¦ OpenVPN clients: 10 ¦ OpenVPN tunnels: 16 |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, FTP, DHCP, DNS, HTTP, HTTPs, IPv6 |
| Routing Protocol | IGMPv2, static IP routing, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Encryption Algorithm | MPPE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, SHA-2, IKEv1 |
| Authentication Method | RADIUS |
| Features | Network monitoring, NAT support, Syslog support, URL filtering, IPSec Virtual Private Network (VPN), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DHCP server, static IP mode, reset button, fanless, dynamic IP mode, IGMP proxy, 4KV Surge protection, Software Defined Networking (SDN), Perfect Forward Secrecy (PFS), Zero-touch provisioning (ZTP), schedule reboot, remote access management, security slot (Kensington security lock compatible), OpenVPN server, Address Reservation, session rate limiting, auto-discovery, dynamic DNS, network access control |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, UPnP, FCC, RoHS, Directive 2009/125/EC, Directive 2011/65/EU, EAC, Directive 2014/35/EU, Directive 2014/30/EU, Directive 2015/863/EU, EIA/TIA-568, UKCA |
| Processor | 1.2 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Status Indicators | Power, system, PoE, link/activity, cloud, speed, PoE max |
| Communications | Communications |
| Digital Signaling Protocol | H.323, SIP |
| IP Telephony | IP Telephony |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN / LAN: 2 x 1000Base-X - SFP (mini-GBIC) ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 8 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 - output |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 rubber feet |
| Cables Included | 1 x power cable |
| Software / System Requirements | Software / System Requirements |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 22.6 cm |
| Depth | 13.1 cm |
| Height | 3.5 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - ER7212PC
More Details
Product Code
CF71877
EAN Code
4897098688717
Manufacturer
TP-LINK
