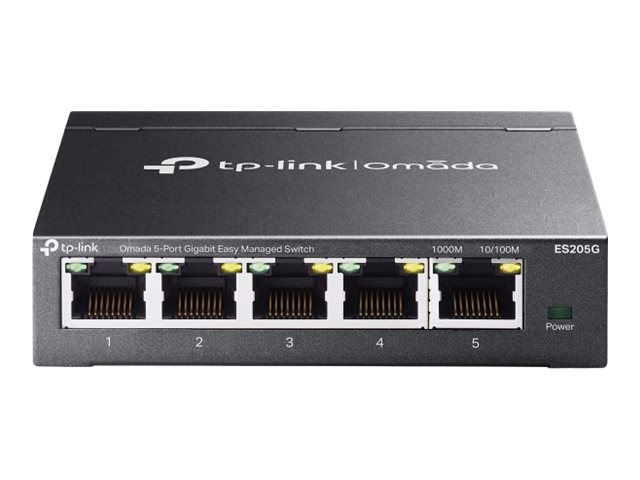

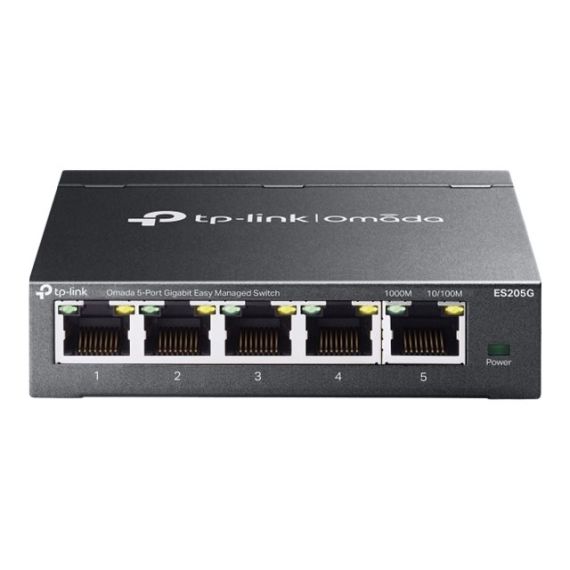

TP-Link Omada ES205G V1 - Switch - Managed - 5 x 10/100/1000Base-T - desktop, wall-mountable | ES205G
Please sign in so that we can notify you about a reply
Product Features
- Robust capacity
Supports up to 4000 VLANs and 8 VLAN groups for flexible network design. - High performance
Provides a switching capacity of 10 Gbps, enhancing data flow and connectivity. - Efficient management
Includes DHCP for easy provisioning and remote management functionalities. - Reliable operation
Designed to operate in temperatures from 0°C to 40°C, with storage capability from -40°C to 70°C. - Versatile design
Supports desktop and wall-mount installation to fit various workspace needs.
Special Fetures
- Supports up to 4000 VLANs for advanced network segmentation
- Features 10 Gbps switching capacity for high-speed data transfer
- Equipped with QoS to prioritize network traffic efficiently
- Offers a fanless design for silent operation
- Cloud managed for easier remote management and monitoring
Product Specification
| Device Type | Switch - 5 ports - Managed |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000Base-T |
| Performance | Switching capacity: 10 Gbps <br /> Packet forwarding rate: 7.4 Mpps <br /> Packet buffer size: 4 Mbit |
| Capacity | Priority queues: 8 <br /> VLAN groups: 32 <br /> VLANs supported: 4000 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 15KB |
| Routing Protocol | IGMP, IGMPv2, IGMPv3 |
| Remote Management Protocol | DHCP |
| Features | Loop prevention, VLAN support, IGMP snooping, fanless, metal housing, security lock slot (cable lock sold separately), reset button, cloud managed, QoS, SDN, traffic prioritisation, ZTP, auto-negotiation, auto-uplink (auto MDI/MDI-X), scheduler, WRR, bandwidth control, rate limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, fast leave, VLAN Tagging, store and forward, DHCP client, Cable Diagnostics Function, automatic device discovery, firmware upgradable, DSCP based QoS, port-based priority, 6KV Surge protection, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge) |
| Compliant Standards | IEEE 802.1p, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u |
| Flash Memory | 64 MB |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 5 V |
| Electric Current Required | 0.6 A |
| Miscellaneous | |
| Included Accessories | 4 rubber feet |
| MTBF | 159,666.4 hours |
| Compliant Standards | Plug and Play, RoHS, FCC |
| Dimensions & Weight | |
| Width | 10 cm |
| Depth | 9.8 cm |
| Height | 2.5 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - TP-LINK - ES205G
General
5-Port
More Details
Product Code
CL54497
EAN Code
8885020620917
Manufacturer
TP-LINK
