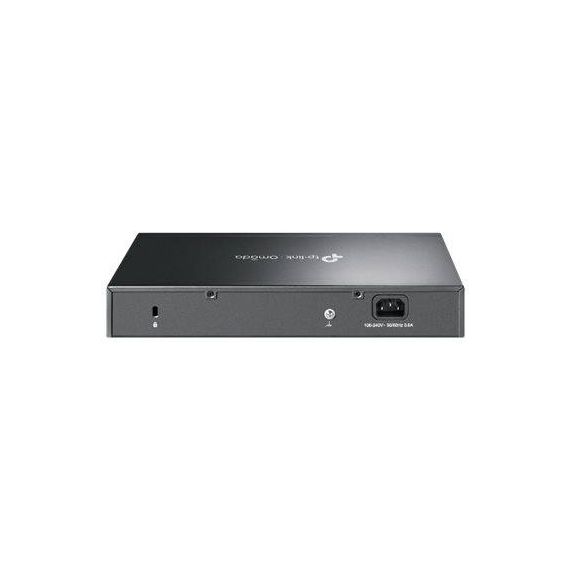

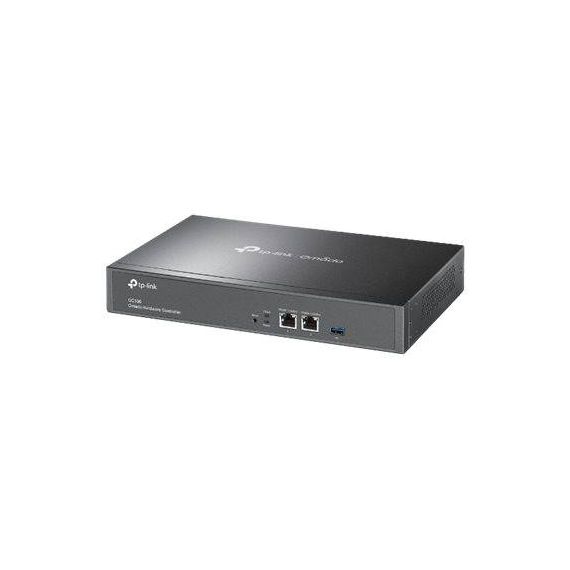

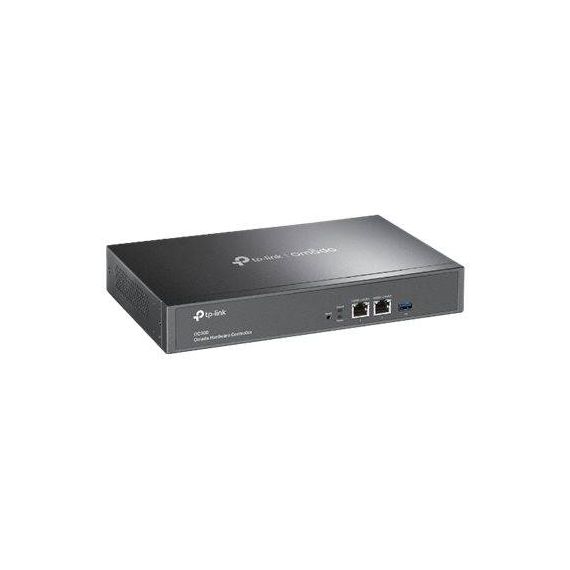

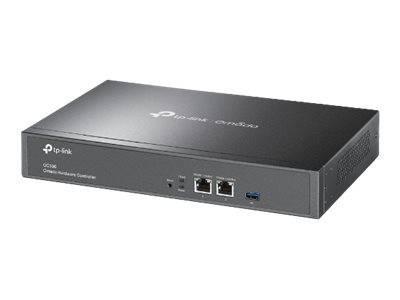

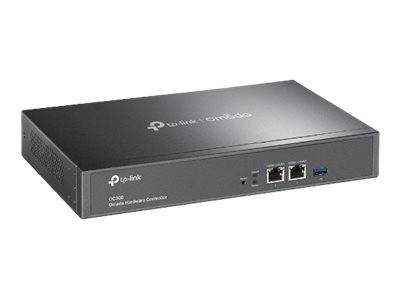

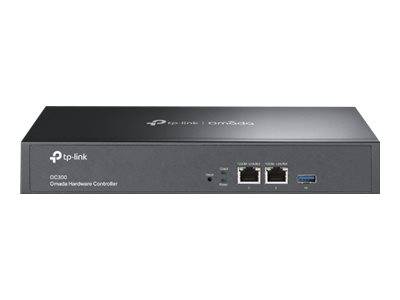

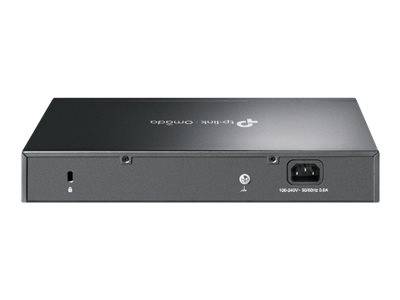

TP-Link Omada OC300 / Network management device / 1GbE / AC 100/240 V / cloud-managed / rack-mountable | OC300
Please sign in so that we can notify you about a reply
Special Features
- Centralized management for up to 500 Omada access points, JetStream switches, and SafeStream routers
- Cloud access to manage from anywhere, anytime
- Locally monitor and manage devices with the ultimate security and stability
- The Omada app for convenient management
- Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup
- Batch management, multi-site management, and remote firmware updates benefit network maintenance
- The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution
- Network topology helps IT admins quickly see and troubleshoot connections at a glance
Product Specification
| Device Type | Network management device |
| Width | 29.4 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x Cortex-A72 1.2 GHz |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 8 GB |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | PPTP, L2TP, IPSec, DDNS |
| Remote Management Protocol | SNMP, SSH, RADIUS |
| Cloud-Managed | Yes |
| Capacity | Maximum number of clients: up to 15000 ¦ Manageable access points: up to 500 ¦ Maximum number of accounts: 1000 ¦ Maximum number of vouchers: 50000 ¦ Maximum number of WLAN groups: 500 |
| Status Indicators | Power, cloud |
| Features | Routing, NAT support, VPN support, DoS attack prevention, URL filtering, firmware upgradable, Access Control List (ACL) support, reset button, Captive Portal, metal housing, event notification, MAC address authentication, schedule reboot, layer 3 management, security slot (Kensington security lock compatible) |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.1x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rack mount kit |
| Cables Included | 1 x network cable |
| Compliant Standards | FCC, RoHS |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100/240 V (50/60 Hz) |
| Power Consumption Operational | 14.8 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - OC300
More Details
Product Code
07:131056
EAN Code
6935364089863
Manufacturer
TP-LINK
