TP-Link Omada SG2210XMP-M2 V1.6 - Switch - L2+ - smart - 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ - desktop, wall-mountable - PoE+ (160 W) | SG2210XMP-M2
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 8 ports - L2+ - smart |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 160 W |
| Performance | Switching capacity: 80 Gbps ¦ Packet forwarding rate: 59.52 Mpps ¦ Packet buffer size: 12 Mbit |
| Capacity | Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Multicast groups: 511 ¦ IP multicast profiles: 256 ¦ IP multicast entries: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ Access control entries: 320 ¦ IPv6 MAC port binding entries: 512 ¦ IP source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 64 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMP, static IP routing, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, DHCP, IPv4, IPv6, RADIUS, MIB, TCP/IP, UDP |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), EAP-MD5 |
| Features | Flow control, network monitoring, ARP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, ACL support, QoS, DHCP server, reset button, Cable Diagnostics Function, bandwidth control, DLDP support, fanless, DHCP relay, dynamic IP mode, MVR, GVRP, port isolation, Multicast filtering function, CoS, SP, security lock slot (cable lock sold separately), cloud managed, Storm Control, system log, ARP inspection, Link Aggregation, scheduler, rate limit, AAA, Voice VLAN, IPMB, Guest VLAN, proxy ARP, ZTP, EEE, WRR, loopback detection, Unknown Storm Control, schedule reboot, DSCP prioritisation, ND snooping, device discovery, LLDP-MED, ND detection |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Status Indicators | Power, system, link/activity, PoE max, SFP+ |
| Expansion / Connectivity | |
| Interfaces | 8 x 2.5GBase-T RJ-45 PoE+ - 30 W ¦ 2 x 10GBase-X SFP+ |
| Power | |

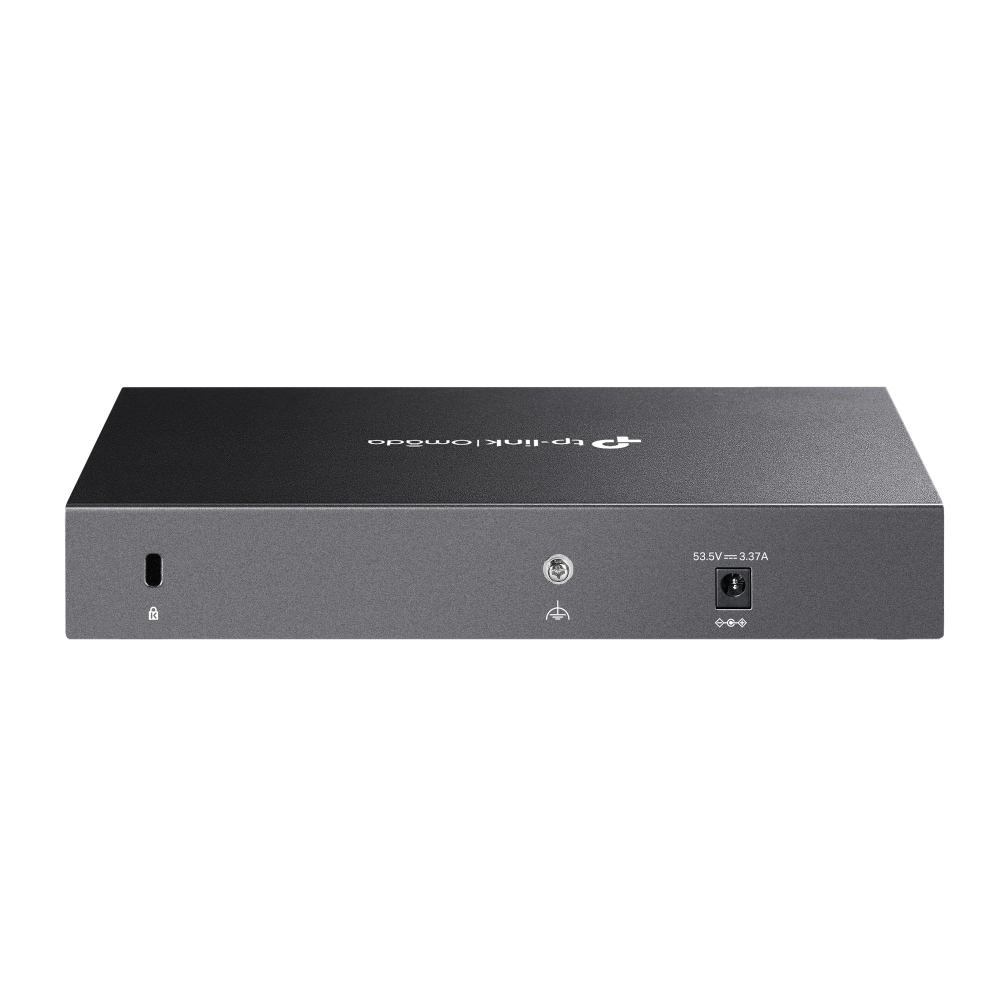

| Power Device | External power adapter |
| Power Provided | 53.5 V - 3.37 A |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
| Dimensions & Weight | |
| Width | 22.6 cm |
| Depth | 13.12 cm |
| Height | 3.5 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
Features - TP-LINK - SG2210XMP-M2
General
8-Port
More Details
Product Code
CJ77733
EAN Code
4895252504774
Manufacturer
TP-LINK
