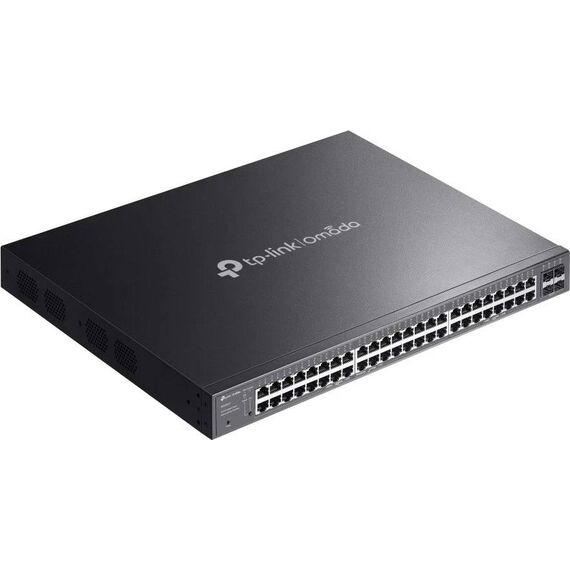

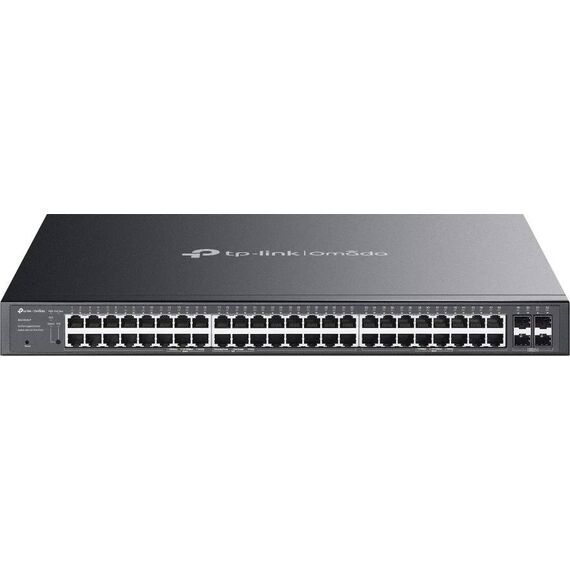

TP-Link Omada SG2452LP V1.8 - Switch - smart - 32 x 10/100/1000 (PoE+) + 16 x 10/100/1000 + 4 x Gigabit Ethernet SFP - rack-mountable - PoE+ (230 W) | SG2452LP
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With 52 ports, including 32 PoE+ capable of delivering 30 W per port, and 4 Gigabit Ethernet SFP slots, this switch offers extensive connectivity options for a variety of devices and applications. - Robust security features
Features like 802.1x authentication, Access Control List (ACL) support, and IP/Mac/Port Binding ensure your network remains secure against unauthorized access and threats. - Comprehensive network management
Manageable via various protocols including SNMP, RMON, and HTTP, and equipped with features like Quality of Service (QoS) and VLAN support, this switch allows for efficient network monitoring and management. - High performance
Boasting a switching capacity of 104 Gbps and a packet forwarding rate of 77.37 Mpps, this switch is designed to handle high volumes of traffic, ensuring smooth data transmission across the network. - Durable and reliable
Housed in a sturdy metal case with a fanless design for silent operation, and an impressive MTBF of 349,554 hours, this switch is built to last in demanding environments.
Special Fetures
- 52 ports including 32 PoE+ and 4 Gigabit Ethernet SFP slots for versatile connectivity
- Advanced security with 802.1x authentication, ACL support, and IP/Mac/Port Binding
- Efficient network management with SNMP, RMON, HTTP protocols, and QoS and VLAN support
- High switching capacity of 104 Gbps and packet forwarding rate of 77.37 Mpps for robust performance
- Fanless design in a durable metal housing for silent operation and enhanced reliability
Product Specification
| Device Type | Switch - 52 ports - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 32 x 10/100/1000 (PoE+) + 16 x 10/100/1000 + 4 x Gigabit Ethernet SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 230 W |
| Performance | Switching capacity: 104 Gbps ¦ Packet forwarding rate: 77.37 Mpps ¦ Packet buffer size: 12 Mbit |
| Capacity | Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 32 ¦ Multicast groups: 511 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ Port security entries: 64 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ IPv4 source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ IPv6 MAC port binding entries: 512 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP, MIB, TCP/IP, UDP, BOOTP |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), PAP, Secure Shell v.2 (SSH2), EAP-MD5 |
| Features | Flow control, network monitoring, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, ACL support, QoS, DHCP server, reset button, Cable Diagnostics Function, bandwidth control, DLDP support, fanless, DHCP relay, Port Security, dynamic IP mode, SNMP trap, MVR, GVRP, Multicast filtering function, CoS, SP, security lock slot (cable lock sold separately), 802.1x authentication, metal housing, ARP inspection, Link Aggregation, rate limit, AAA, Voice VLAN, IPMB, Guest VLAN, proxy ARP, ZTP, EEE, WRR, client isolation, loopback detection, VLAN Tagging, MAB, Unknown Storm Control, bridge mode, schedule reboot, DSCP prioritisation, DHCPv6 snooping, LLDP-MED, path MTU discovery, ND detection, DoS protection, automatic device discovery |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Status Indicators | Power, system, link/activity, PoE max |
| Expansion / Connectivity | |
| Interfaces | 32 x 10/100/1000 Base-T (PoE+) RJ-45 30 W ¦ 16 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1000Base-X SFP |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 21.5 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet, power cord |
| Rack Mounting Kit | Included |
| MTBF | 349,554 hours |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
Features - TP-LINK - SG2452LP
General
16-Port
More Details
Product Code
CL31755
EAN Code
8885020620818
Manufacturer
TP-LINK
