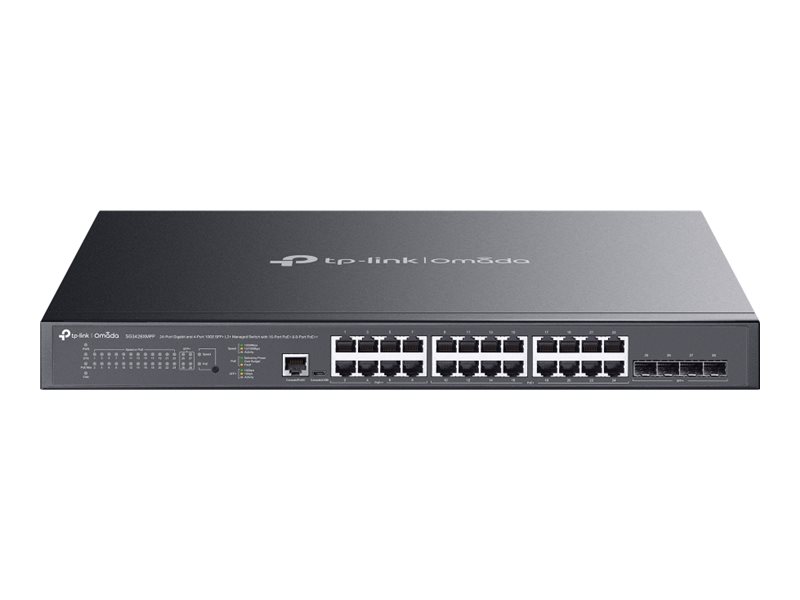

TP-Link Omada SG3428XMPP V1.8 - Switch - L2+ - Managed - 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+ - rack-mountable - PoE++ (500 W) | SG3428XMPP
Please sign in so that we can notify you about a reply
Product Features
- Robust performance
With a switching capacity of 128 Gbps and a packet forwarding rate of 95.23 Mpps, this switch is engineered to handle high volumes of traffic, ensuring efficient data flow across the network. - Comprehensive connectivity
Equipped with 16 PoE+ ports, 8 PoE++ ports, and 4 10Gb Ethernet SFP+ ports, the device offers versatile connection options for a wide range of devices and applications, from high-powered wireless access points to surveillance cameras. - Advanced security features
Features such as 802.1x authentication, Access Control List (ACL) support, and IP/Mac/Port Binding (IPMB) provide a secure network environment by preventing unauthorized access and protecting sensitive data. - Efficient power management
With a total PoE budget of 500 W, this switch supports energy-efficient operation of connected devices, reducing operational costs and environmental impact. - Easy network management
Manageable via various protocols including SNMP, RMON, and HTTP/HTTPS, this switch offers flexibility in network management and monitoring, simplifying the administration of network resources.
Special Fetures
- 128 Gbps switching capacity for high-speed data processing
- 95.23 Mpps packet forwarding rate ensures smooth traffic flow
- 500 W PoE budget accommodates a wide range of power-over-Ethernet devices
- Advanced security protocols including 802.1x and ACL support
- Flexible management options with SNMP, RMON, and HTTP/HTTPS
Product Specification
| Device Type | Switch - 24 ports - L2+ - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 500 W |
| Performance | Switching capacity: 128 Gbps ¦ Packet forwarding rate: 95.23 Mpps ¦ Packet buffer size: 12 Mbit |
| Capacity | Priority queues: 8 ¦ IPv6 interfaces: 128 ¦ IPv4 interfaces: 128 ¦ IPv4 routes (static): 48 ¦ IPv6 routes (static): 48 ¦ Static ARP entries: 128 ¦ ARP entries: 512 ¦ IGMP groups: 1000 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 30 ¦ VLAN templates: 16 ¦ IP MAC port binding entries: 512 ¦ Port security entries: 64 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP, L2PT, PPPoE |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, OAM, ICMP, DHCP, IPv4, IPv6, RSTP, MIB, TCP/IP, UDP, BOOTP |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, ARP support, ISP, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, DLDP support, DHCP relay, Port Security, MVR, GVRP, NDP, port isolation, CoS, SP, tagged VLAN, security lock slot (cable lock sold separately), 802.1x authentication, metal housing, ToS, ERPS, system log, ARP inspection, Link Aggregation, rate limit, DDM, fast leave, AAA, Voice VLAN, IPMB, Private VLAN, Guest VLAN, proxy ARP, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, queue scheduling support, schedule reboot, DSCP prioritisation, LLDP-MED, path MTU discovery, DoS protection, automatic device discovery |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bt |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Built-in Devices | 3 x fans |
| Status Indicators | Power, system, link/activity, fan, PoE max |
| Expansion / Connectivity | |
| Interfaces | 16 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 8 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 16.9 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
Features - TP-LINK - SG3428XMPP
General
16-Port
More Details
Product Code
CL02773
EAN Code
8885020620856
Manufacturer
TP-LINK
