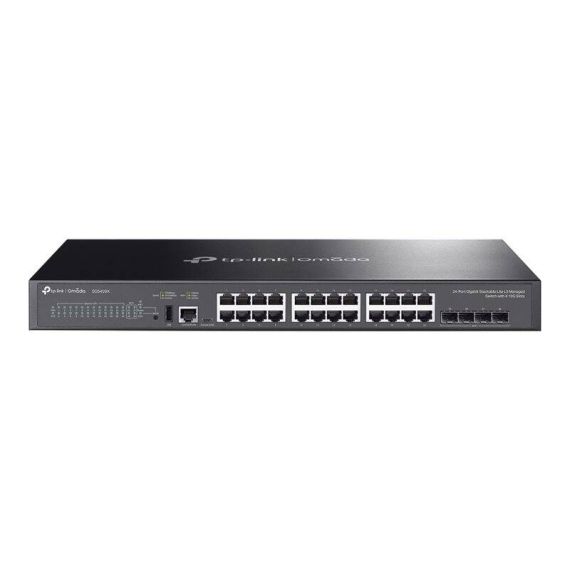

TP-Link Omada SG5428X V1 - Switch - L3 Lite - Managed - 24 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ - rack-mountable | SG5428X
Please sign in so that we can notify you about a reply
Product Features
- Robust switching capacity
With a switching capacity of 80 Gbps, the SG5428X V1 handles heavy data traffic efficiently, ensuring stable performance for demanding applications. - Versatile port options
Featuring 24 10/100/1000 Base-T ports and 4 additional 10Gb Ethernet SFP+ ports, this switch offers flexible scaling options to meet evolving networking needs. - Advanced security protocols
The switch supports multiple authentication methods such as Secure Shell and RADIUS, enhancing network security and protecting sensitive data. - Environmentally friendly design
Designed to operate quietly with a fanless mechanism, the SG5428X V1 minimizes noise in office environments while maintaining efficient thermal management. - Easy installation
The included rack mounting kit simplifies the installation process, making it convenient to integrate this switch into existing setups.
Special Fetures
- 80 Gbps switching capacity for efficient data handling
- 24 ports of 10/100/1000 Base-T and 4 10Gb Ethernet SFP+ ports
- Fanless design for quiet operation
- Advanced security features including SSH and RADIUS
- Comes with a rack mounting kit for easy installation
Product Specification
| Device Type | Switch - 24 ports - L3 Lite - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ |
| Performance | Switching capacity: 128 Gbps <br /> Packet forwarding rate: 95.23 Mpps <br /> Stacking bandwidth: 80 Gbps <br /> Forwarding bandwidth: 64 Gbps |
| Capacity | Buffer capacity (MB): 12 <br /> Priority queues: 8 <br /> IPv4 interfaces: 128 <br /> IPv6 interfaces: 128 <br /> Maximum host route table: 1024 <br /> IPv4 routes (static): 512 <br /> IPv6 routes (static): 128 <br /> RIP routes: 1796 <br /> OSPFv2 routes: 1796 <br /> OSPFv3 routes: 450 <br /> Static ARP entries: 512 <br /> Dynamic ARP: 3600 <br /> DHCP pool: 64 <br /> Binding entries: 1000 <br /> Maximum L2 multicast table: 2000 <br /> VLAN groups: 4000 <br /> MAC VLAN address entries: 60 <br /> VLAN VPN (QinQ) entries: 256 <br /> IP MAC port binding entries: 1024 <br /> IPv6 MAC port binding entries: 1024 <br /> MAC addresses per port: 64 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Max Units In A Stack | 4 |
| Routing Protocol | Static IP routing, RIP-1, RIP-2, OSPFv2, OSPFv3, L2PT, MLD, IGMP, MLDv2, MSTP, PPPoE, RIPng, RSTP, STP |
| Remote Management Protocol | DHCP, HTTP, HTTPS, CLI, SNMP 1, SNMP 2c, SNMP 3, BOOTP, RMON 1, RMON 2, RMON 3, RMON 9, MIB, Telnet, TFTP |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS, TACACS+, RADSEC, PAP, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS |
| Features | DHCP relay, DHCP server, ACL support, DoS attack prevention, Port Security, ERPS, SDN, DAI, MAB, ZTP, security slot (Kensington security lock compatible), metal housing, fanless, bandwidth control, port priority, QoS, rate limit, Storm Control, Voice VLAN, flow control, IGMP snooping, IP multicast, Link Aggregation, loopback detection, MLD snooping, port mirroring, RSPAN, STP support, fast leave, MVR, Multicast filtering function, DLDP support, DDM, sFlow, GVRP, port isolation, DHCP snooping, DHCPv6 snooping, AAA, Broadcast Storm Control, Guest VLAN, Multicast Storm Control, Unknown Storm Control, LLDP-MED, EEE, store and forward, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge) |
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x |
| Processor | X ARM: 1.2 GHz |
| RAM | 2 GB DDR4 SDRAM |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 <br /> 4 x 1000Base-X/10GBase-X SFP+ <br /> 1 x console RJ-45 <br /> 1 x USB-C console <br /> 1 x USB 2.0 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | Rubber feet, power cord |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| MTBF | 519,543 hours |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11, Apple MacOS, Linux, Novell NetWare, UNIX |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
Features - TP-LINK - SG5428X
General
24-Port
More Details
Product Code
07:21235499
EAN Code
8885020626421
