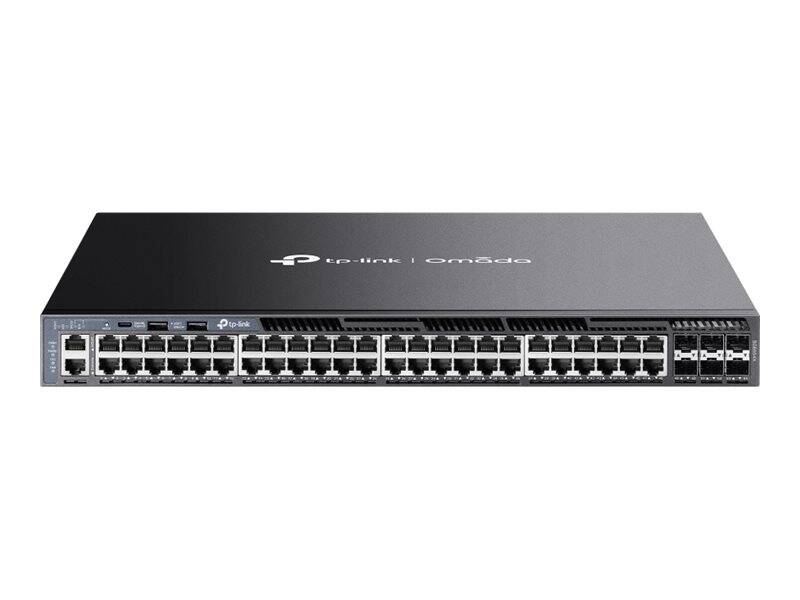

TP-Link Omada SG6654X V1 - Switch - L3 - Managed - 48 x 10/100/1000 + 6 x 10Gb Ethernet SFP+ - front to back airflow - rack-mountable | SG6654X(UN)
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 6 x 10Gb Ethernet SFP+ |
| Performance | Switching capacity: 216 Gbps <br /> Forwarding bandwidth: 108 Gbps <br /> Switching capacity with stacking: 864 Gbps <br /> Stacking bandwidth (full-duplex): 20 Gbps <br /> Packet forwarding rate: 160.7 Mpps <br /> Packet buffer size: 3 Mbit |
| Capacity | Priority queues: 8 <br /> IPv6 interfaces: 256 <br /> IPv4 interfaces: 256 <br /> IPv4 routes (static): 1024 <br /> IPv6 routes (static): 512 <br /> Maximum host route table: 6100 <br /> RIP routes: 8190 <br /> OSPFv2 routes: 8190 <br /> OSPFv3 routes: 4097 <br /> VRRP groups: 64 <br /> ECMP entries: 256 <br /> ECMP next hops per route: 32 <br /> Static ARP entries: 512 <br /> Dynamic ARP: 7680 <br /> Dynamic IP pool: 8000 <br /> Binding entries: 1000 <br /> IGMP groups: 2048 <br /> VLAN groups: 4000 <br /> MAC VLAN address entries: 200 <br /> VLAN VPN (QinQ) entries: 256 <br /> VLAN entries: 12 <br /> VLAN templates: 16 <br /> IP MAC port binding entries: 1024 <br /> IPv6 MAC port binding entries: 1024 <br /> Port security entries: 64 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Max Units In A Stack | 4 |
| Routing Protocol | Static IP routing, RIP, OSPF, ECMP, VRRP, PIM-DM, RIP-1, RIP-2, OSPFv2, OSPFv3, VRRPv2, VRRPv3, STP, IGMP, MLD, L2PT, PPPoE, RSTP, MSTP, IGMPv2, IGMPv3, MLDv2 |
| Remote Management Protocol | HTTP, HTTPS, DHCP, CLI, SNMP, SNMP 1, SNMP 2c, SNMP 3, RMON, RMON 1, RMON 2, RMON 3, RMON 9, BOOTP, MIB, NTP, RSTP, IPv4, IPv6, TCP/IP, UDP, SSH, SSH-2, ICMP, TFTP, Telnet, RADIUS |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | DHCP server, DHCP relay, ACL support, Port Security, DoS attack prevention, 802.1x authentication, ERPS, cloud managed, ARP inspection, MAB, ZTP, security lock slot (cable lock sold separately), 4 fans, QoS, port-based priority, DSCP support, scheduler, bandwidth control, rate limit, Storm Control, Voice VLAN, proxy ARP, ARP support, Link Aggregation, loopback detection, flow control, port mirroring, RSPAN, IGMP snooping, MLD snooping, fast leave, MVR, Multicast filtering function, device discovery, firmware upgradable, schedule reboot, DLDP support, DDM, sFlow, tagged VLAN, Multicast VLAN routing, VLAN management, GVRP, Private VLAN, port isolation, cpu defend policy, DAI, IP-MAC binding, IP source guard, DHCPv6 snooping, ND detection, ND snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, Guest VLAN, AAA, Cable Diagnostics Function, SNTP support, system log, EEE, LLDP-MED, store and forward, 6KV Surge protection, 15KV ESD Protector (air-gap discharge), 15KV ESD Protector (contact discharge), auto-uplink (auto MDI/MDI-X), auto-negotiation, Back Pressure Support |
| Compliant Standards | IEEE 802.1p, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Processor | X ARM: 1.5 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 8 GB |
| Status Indicators | Link/activity, power, system, fan, management, stack |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 30 W <br /> 6 x 10GBase-X SFP <br /> 2 x USB 2.0 Type A <br /> 1 x USB-C console <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 1 x console RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 16.2 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| MTBF | 547,093 hours |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 38 cm |
| Height | 4.4 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
