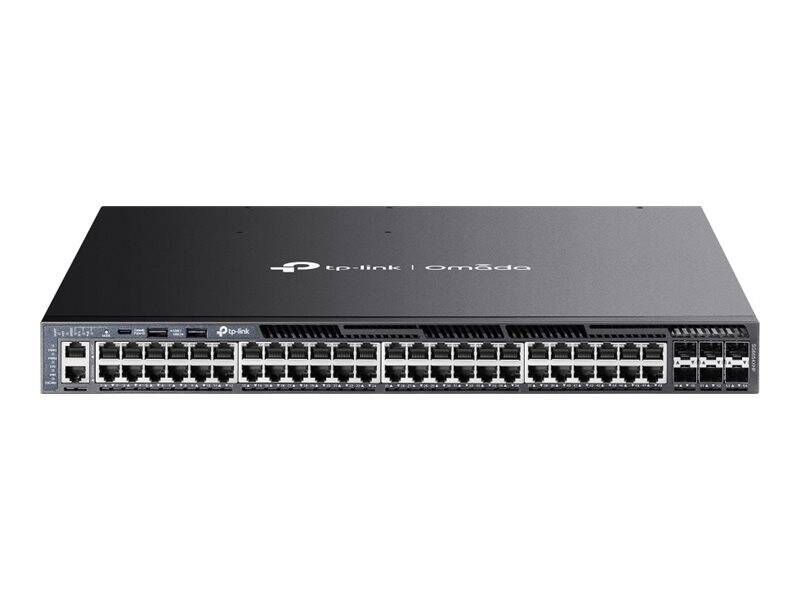

TP-Link Omada SG6654XHP V1 / Switch / L3 / Managed / 48 x 10/100/1000 (PoE+) + 6 x 10Gb Ethernet SFP+ / front to back airflow / rack-mountable / PoE+ (1440 W) | SG6654XHP(UN)
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 6 x 10Gb Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 1440 W |
| Performance | Switching capacity: 216 Gbps Forwarding bandwidth: 108 Gbps Switching capacity with stacking: 864 Gbps Stacking bandwidth (full-duplex): 20 Gbps Packet forwarding rate: 160.7 Mpps Packet buffer size: 3 Mbit |
| Capacity | Priority queues: 8 IPv6 interfaces: 256 IPv4 interfaces: 256 IPv4 routes (static): 1024 IPv6 routes (static): 512 Maximum host route table: 6100 RIP routes: 8190 OSPFv2 routes: 8190 OSPFv3 routes: 4097 VRRP groups: 64 ECMP entries: 256 ECMP next hops per route: 32 Static ARP entries: 512 Dynamic ARP: 7680 Dynamic IP pool: 8000 Binding entries: 1000 IGMP groups: 2048 VLAN groups: 4000 MAC VLAN address entries: 200 VLAN VPN (QinQ) entries: 256 VLAN entries: 12 VLAN templates: 16 IP MAC port binding entries: 1024 IPv6 MAC port binding entries: 1024 Port security entries: 64 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Max Units In A Stack | 4 |
| Routing Protocol | Static IP routing, RIP, OSPF, ECMP, VRRP, PIM-DM, RIP-1, RIP-2, OSPFv2, OSPFv3, VRRPv2, VRRPv3, STP, IGMP, MLD, L2PT, PPPoE, RSTP, MSTP, IGMPv2, IGMPv3, MLDv2 |
| Remote Management Protocol | HTTP, HTTPS, DHCP, CLI, SNMP, SNMP 1, SNMP 2c, SNMP 3, RMON, RMON 1, RMON 2, RMON 3, RMON 9, BOOTP, MIB, NTP, RSTP, IPv4, IPv6, TCP/IP, UDP, SSH, SSH-2, ICMP, TFTP, Telnet, RADIUS |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | DHCP server, DHCP relay, ACL support, Port Security, DoS attack prevention, 802.1x authentication, ERPS, cloud managed, ARP inspection, MAB, ZTP, security lock slot (cable lock sold separately), 4 fans, QoS, port-based priority, DSCP support, scheduler, bandwidth control, rate limit, Storm Control, Voice VLAN, proxy ARP, ARP support, Link Aggregation, loopback detection, flow control, port mirroring, RSPAN, IGMP snooping, MLD snooping, fast leave, MVR, Multicast filtering function, device discovery, firmware upgradable, schedule reboot, DLDP support, DDM, sFlow, tagged VLAN, Multicast VLAN routing, VLAN management, GVRP, Private VLAN, port isolation, cpu defend policy, DAI, IP-MAC binding, IP source guard, DHCPv6 snooping, ND detection, ND snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, Guest VLAN, AAA, Cable Diagnostics Function, SNTP support, system log, EEE, LLDP-MED, store and forward, 6KV Surge protection, 15KV ESD Protector (air-gap discharge), 15KV ESD Protector (contact discharge), auto-uplink (auto MDI/MDI-X), auto-negotiation, Back Pressure Support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Processor | X ARM: 1.5 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 8 GB |
| Status Indicators | Link/activity, power, system, fan, PoE max, management, stack |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 6 x 10GBase-X SFP 2 x USB 2.0 Type A 1 x USB-C console 1 x management (Gigabit LAN) RJ-45 1 x console RJ-45 |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 41.43 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| MTBF | 648,538 hours |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 42 cm |
| Height | 4.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
Features - TP-LINK - SG6654XHP(UN)
General
48-Port
More Details
Product Code
07:21235506
EAN Code
4895252501414
Manufacturer
TP-LINK
