TP-LINK Powerline AV1200 / Gigabit ac Wi-Fi Kit / bridge / GigE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 / 802.11a/b/g/n/ac / Dual Band / wall-pluggable | TL-WPA8630 KIT
TP-LINK Powerline AV1200 / Gigabit ac Wi-Fi Kit / bridge / GigE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 / 802.11a/b/g/n/ac / Dual Band / wall-pluggable | TL-WPA8630 KIT

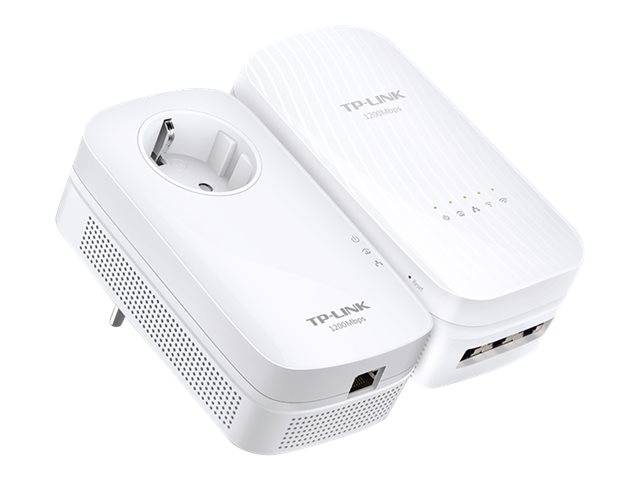

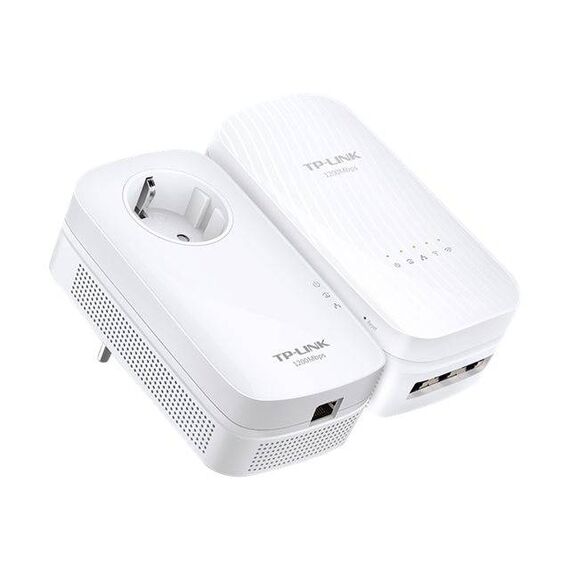

Description The TL-WPA8630 kit expands your home's Wi-Fi coverage into areas where the wireless signal from the main router is weak or nonexistent. The range extender kit can build a unified network using your home's existing powerlines and allow you to enjoy Wi-Fi coverage in any area with a power outlet. The TL-WPA8630 utilizes 802.11ac Wi-Fi to deliver dual band connections with combined speeds of up to 1200 Mbps, including 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. The combination of impressive speed and convenient powerline networking allows you to provide fast, reliable connections throughout your entire home. This is perfect for 4K streaming and online gaming, on multiple devices at the same time. TP-LINK Powerline AV1200 / Gigabit ac Wi-Fi Kit / Dual Band / wall-pluggable | TL-WPA8630 KITSpecial Features
Product features
|
Product Specification
Device Type | Bridge |
Enclosure Type | Wall-pluggable |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, IEEE 802.11ac |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 1750 Mbps |
Max Range Indoors | 300 m |
Network / Transport Protocol | CSMA/CD |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Remote Management Protocol | HTTP |
Encryption Algorithm | WPA, WPA2, 128-bit AES, WPA-Enterprise, WPA2-Enterprise, WEP |
Features | MAC address filtering, firmware upgradable, Quality of Service (QoS), reset button, 2T2R MIMO technology, Type of Service (ToS) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Plug and Play, RoHS |
Built-in Devices | Led panel |
Status Indicators | Power, LAN, wireless |
Line Coding Format | OFDM |
Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x HomePlug AV 2.0 |
Power Device | Internal power supply |
Power Consumption Operational | 10.8 Watt |
Included Accessories | TP-Link TL-PA8010P |
Cables Included | 2 x network cable - 2 m |
OS Required | Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
Width | 6.8 cm |
Depth | 4.5 cm |
Height | 14.06 cm |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
