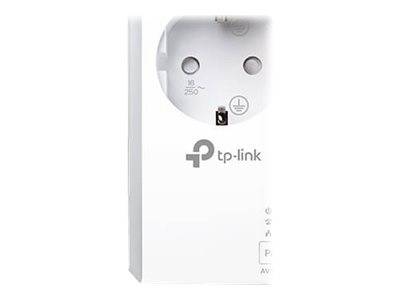

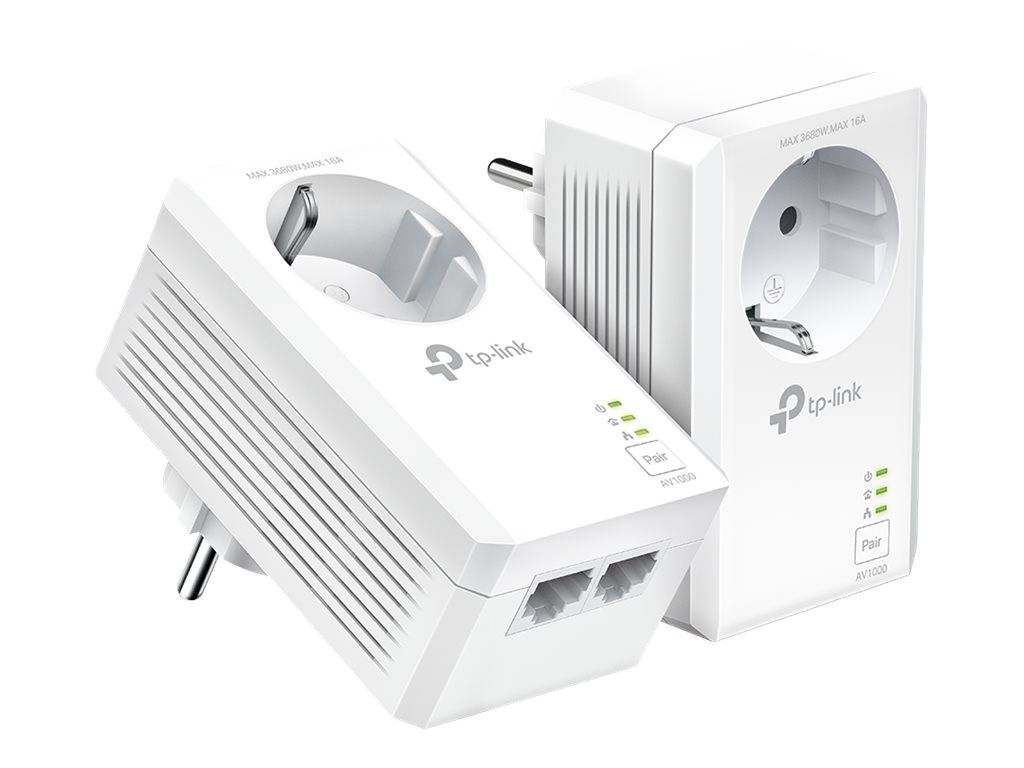

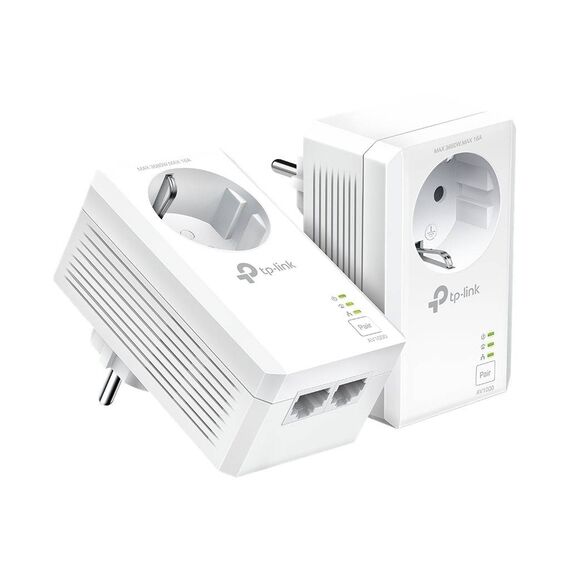

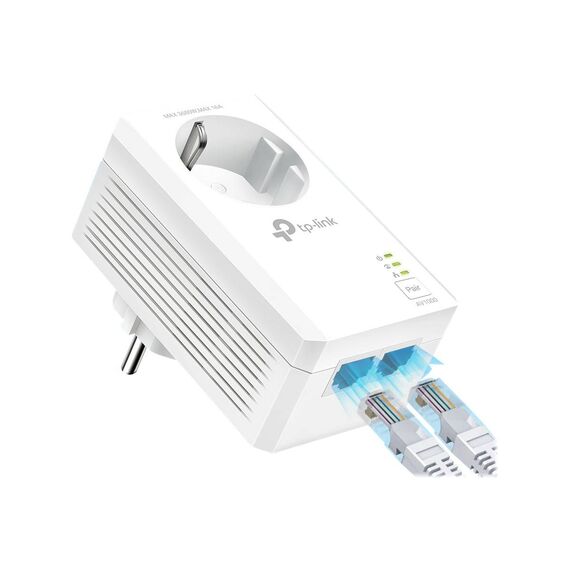

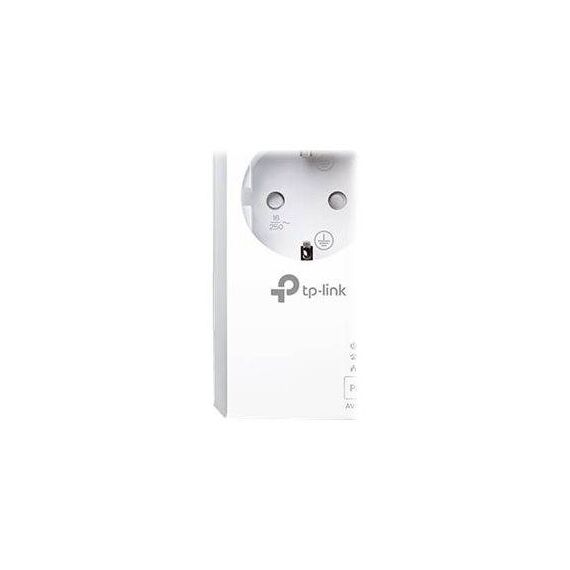

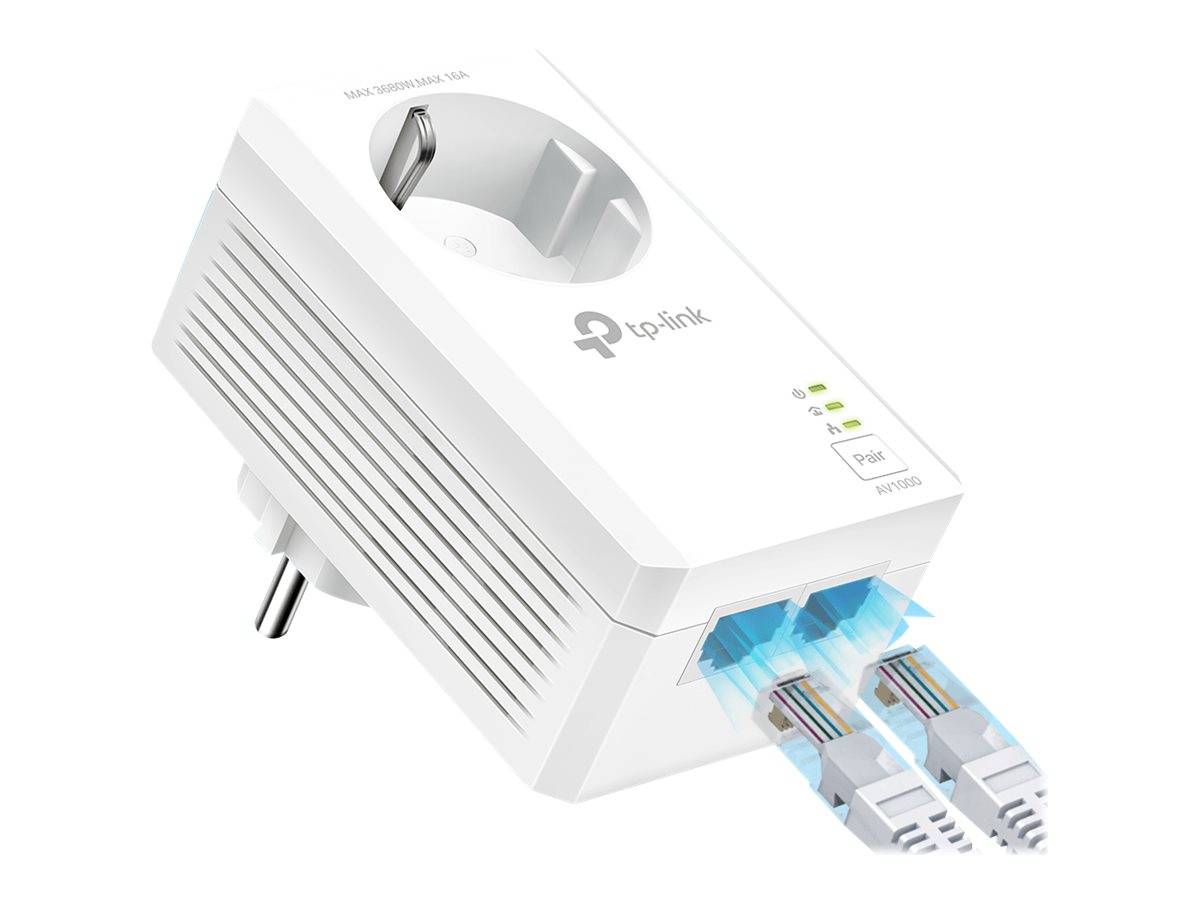

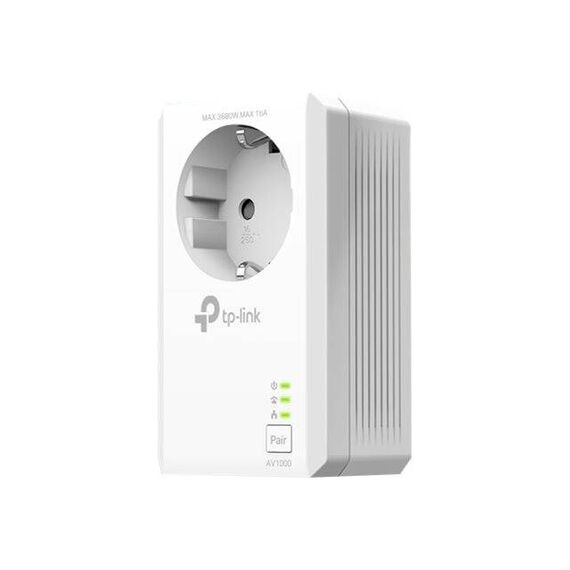

TP-Link TL-PA7027P V1 Starter Kit / Powerline adapter kit / 2-port switch / GigE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 / wall-pluggable | TL-PA7027P KIT
Product Features
- Extend an AV1000 speed network to any outlet
Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers. Just plug in and enjoy! - Two Gigabit ports for high-speed connections
Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more. - Don't worry about occupying an outlet
Simply plug into your TL-PA7027P KIT as though it were a normal wall socket. Feel free to plug in PCs, smart TVs, or other wired appliances without any performance differences. The built-in noise filter helps prevent electrical signal noise from affecting your powerline performance. - Up to 85% power saved
The future's looking green for powerline adapters. TL-PA7027P KIT's practical design and sophisticated Power-Saving Mode, which automatically switches from its regular "Working" mode to "Power-Saving" mode, reduce its energy consumption by up to 85%.
Special Features
- HomePlug AV2 standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- Two Gigabit ports provide secure wired networks for desktops, smart TVs or games consoles
- Plug and Play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
- Extra Power Socket ensures no power outlet goes to waste
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%
Product Specification
Device Type | Powerline adapter kit - 2-port switch (integrated) |
Enclosure Type | Wall-pluggable |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 |
Data Transfer Rate | 1000 Mbps |
Max Range Indoors | 300 m |
Encryption Algorithm | 128-bit AES |
Features | Reset button, power-saving mode, pair button |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901, Plug and Play, RoHS |
Built-in Devices | Power outlet |
Status Indicators | Port status, power, powerline |
Line Properties | Line Properties |
Line Coding Format | OFDM |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x HomePlug AV 2.0 |
Power | Power |
Power Device | Internal power supply |
Power Consumption Operational | 4 Watt |
Miscellaneous | Miscellaneous |
Cables Included | 2 x network cable - 2 m |
Software / System Requirements | Software / System Requirements |
OS Required | Apple MacOS, Linux, Microsoft Windows Vista / XP / 7 / 8 / 8.1 |
Dimensions & Weight | Dimensions & Weight |
Width | 5.8 cm |
Depth | 4.2 cm |
Height | 9.5 cm |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
