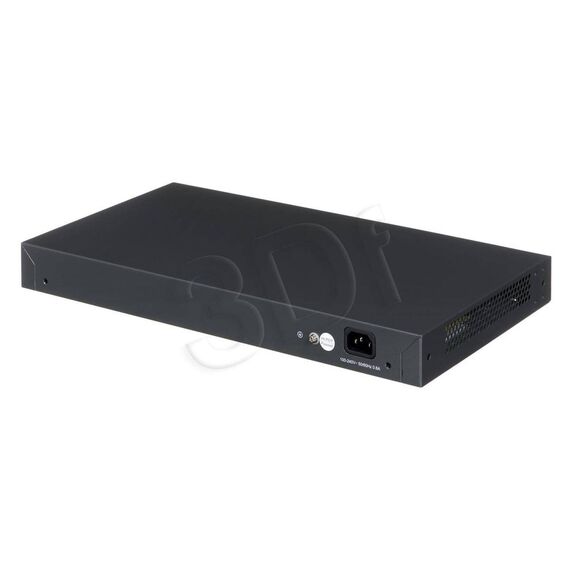

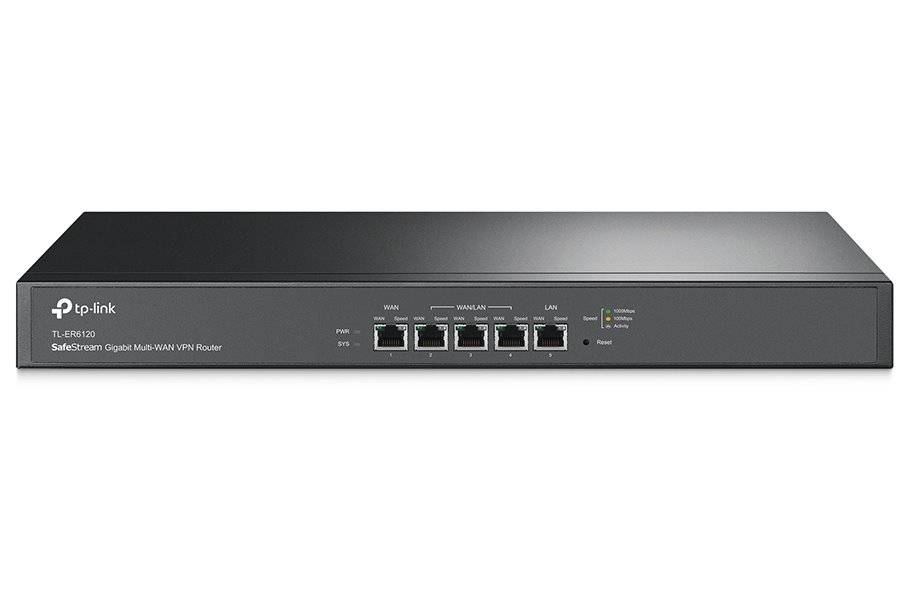

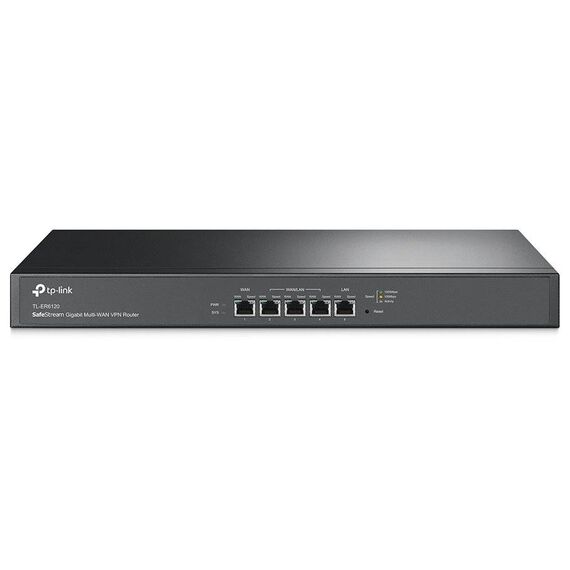

TP-Link SafeStream TL-ER6120 / V3 / router / 3-port switch / GigE / rack-mountable | TL-ER6120
TP-Link SafeStream TL-ER6120 / V3 / router / 3-port switch / GigE / rack-mountable | TL-ER6120
Description
The TL-ER6120 SafeStream Gigabit Dual-WAN VPN router from TP-LINK possesses excellent data processing capabilities and multiple powerful functions including IPsec/PPTP/L2TP VPN, load balance, access control, IM/P2P blocking, Dos defense, bandwidth control, session limit, PPPoE server and so on, which consumedly meet the needs of small and medium enterprises, hotels and communities with large volumes of users demanding an efficient and easy-to-manage network with high security.
TP-Link SafeStream TL-ER6120 / V3 | TL-ER6120
Special Features
- Supports multiple VPN protocols including IPsec/PPTP/L2TP, which helps users establish their VPN more flexibly
- Supports up to 100 IPsec VPN tunnels with a hardware-based VPN engine
- Abundant security features including ARP inspection, DoS defense, URL/keyword domain filter and access control
- Deploys one-click restriction of IM/P2P applications to manage staff online behavior
- Professional 4kV lightning protection keeps your investments as safe as possible
Product features
- High VPN performance
The TL-ER6120 supports multiple VPN protocols including IPsec, PPTP and L2TP in client/server mode and can handle pass-through traffic as well. It also features a built-in hardware-based VPN engine allowing the router to support and manage up to 100 LAN-to-LAN/Client-to-LAN IPsec VPN connections. - Abundant security features
For defense against external threats, TL-ER6120 features an automatic protection to detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP flooding, TCP scanning, ping of death and other related threats. Moreover, this router offers a hardware DMZ port, which allows you to setup public servers without exposing your internal network, to avoid attacks from external threats. For better management of the internal network, TL-ER6120 allows administrators to set rules to block specific web sites and IM/P2P applications with just one-click, and restrict staff to use specific services such as FTP, HTTP and SMTP. - Optimizing bandwidth usage
The TL-ER6120 features two WAN ports, allowing the router to satisfy various Internet access requirements through one device. The intelligent load balancing function can distribute data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. With IP-based bandwidth control and session limit functions, network administrators can flexibly manage network bandwidth to optimize bandwidth usage. - Safety minded enterprise investments
Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the electrical equipment and is discharged harmlessly into the Earth. This feature ensures that networking infrastructure investments remain as safe as possible from one of mother nature's more violent situations.
Product Specification
Device Type | Router - 3-port switch (integrated) |
Enclosure Type | Desktop, rack-mountable - 1U |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Performance | NAT (iMIX) throughput: 936 Mbps ¦ NAT (DHCP) throughput: 878 Mbps ¦ NAT (PPPoE) throughput: 665 Mbps ¦ VPN throughput (256-bit AES IPSec): 3730 Mbps |
Capacity | Concurrent sessions: 150000 ¦ L2TP VPN tunnels: 50 ¦ PPTP VPN tunnels: 50 |
Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS |
Remote Management Protocol | Telnet, HTTP, CLI |
Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
Features | Flow control, DMZ port, NAT support, ARP support, load balancing, VLAN support, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, MAC address filtering, VPN passthrough, URL filtering, SNTP support, DDos attack prevention, Access Control List (ACL) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), virtual server support, DHCP server, static IP mode, bandwidth control, port triggering, dynamic IP mode, DHCP client, NTP time synchronisation, Generic Attribute Registration Protocol (GARP), Perfect Forward Secrecy (PFS) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, UPnP, FCC, RoHS |
RAM | 512 MB DDR3 SDRAM |
Flash Memory | 32 MB |
Status Indicators | Port transmission speed, power, link/activity |
VoIP Protocols | H.323, SIP |
Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Cables Included | 1 x network cable |
Rack Mounting Kit | Included |
OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10 |
Width | 44 cm |
Depth | 18 cm |
Height | 4.4 cm |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
