TP-Link SafeStream TL-ER7206 / V1 / router / GigE | ER7206
Please sign in so that we can notify you about a reply
Special Features
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring
- Centralized management: ?loud access and Omada app for ultra-convenience and easy management

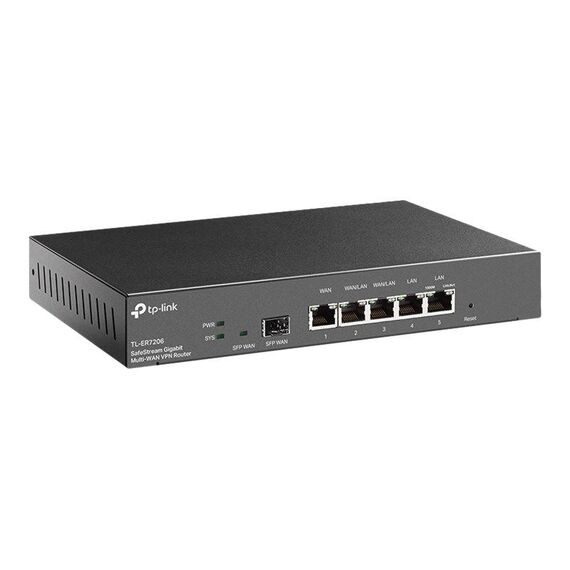

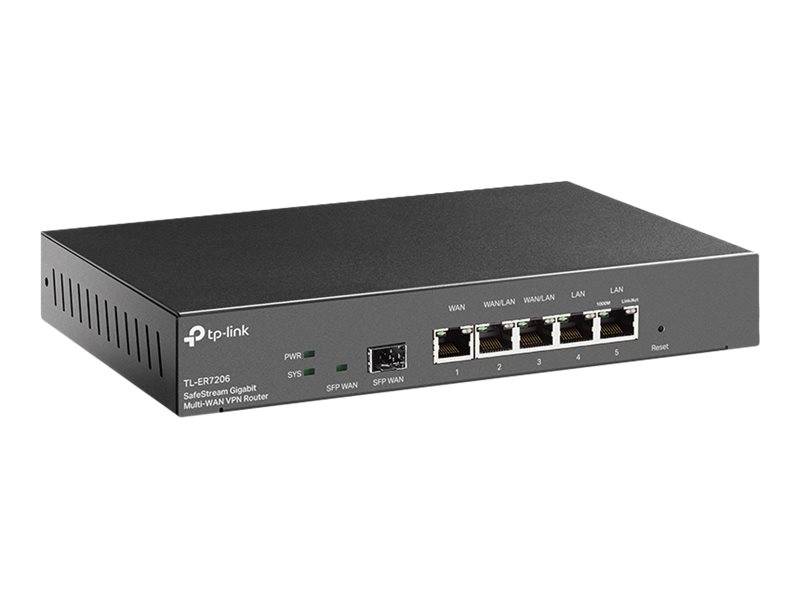

- Gigabit ports: one gigabit SFP and five gigabit RJ45 ports provide high-speed wired connectivity
- Up to four WAN ports: one gigabit SFP WAN port, one gigabit RJ45 WAN port, two gigabit WAN/LAN ports optimize bandwidth usage
- Highly secure VPN: supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN, 50x L2TP, and 50x PPTP VPN connections
- Abundant security features: advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data
Product Specification
| Device Type | Router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | VPN unencrypted throughput (PPTP): 1.3793 Gbps ¦ VPN encrypted throughput (PPTP): 115.6 Mbps ¦ VPN unencrypted throughput (L2TP): 1.3603 Gbps ¦ VPN encrypted throughput (L2TP): 202.3 Mbps ¦ VPN throughput (128-bit AES IPSec): 291.6 Mbps ¦ Routing throughput (1518-byte packet size): 81274 pps ¦ Upload forwarding rate (66-byte packet size): 486918pps ¦ Download forwarding rate (66-byte packet size): 488372 pps ¦ NAT upload throughput (PPTP): 918.9 Mbps ¦ NAT download throughput (PPTP): 914.7 Mbps ¦ NAT upload throughput (L2TP): 918 Mbps ¦ NAT download throughput (L2TP): 917.9 Mbps ¦ NAT upload throughput (PPPoE): 939.7 Mbps ¦ NAT download throughput (PPPoE): 937.9 Mbps ¦ NAT upload throughput (DHCP): 940.3 Mbps ¦ NAT download throughput (DHCP): 940.4 Mbps |
| Capacity | New sessions per second: 5500 ¦ Concurrent connections: 150000 |
| Network / Transport Protocol | TCP/IP, PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs |
| Routing Protocol | IGMPv2, static IP routing, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, ICMP |
| Encryption Algorithm | DES, MD5, MPPE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1, 3DES-168 |
| Features | NAT support, Syslog support, URL filtering, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), virtual server support, DHCP server, reset button, bandwidth control, port triggering, IP-MAC binding, Generic Attribute Registration Protocol (GARP), Captive Portal, ARP inspection, 4KV Surge protection, network diagnostics, Web Filtering, policy based routing, Perfect Forward Secrecy (PFS), Zero-touch provisioning (ZTP), L2TP support, DynDNS, schedule reboot, OpenVPN server, Block TCP Flood, Black UDP Flood |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP, FCC, RoHS, EIA/TIA-568 |
| RAM | 512 MB DDR3 SDRAM |
| Flash Memory | 128 MB |
| Status Indicators | Power, system, link/activity, speed |
| IP Telephony | IP Telephony |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x Ethernet 1000 - SFP (mini-GBIC) |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | Software / System Requirements |
| OS Required | UNIX, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 22.6 cm |
| Depth | 13.1 cm |
| Height | 3.5 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - ER7206(UN)
More Details
Product Code
04:406319
EAN Code
6935364072391
Manufacturer
TP-LINK
