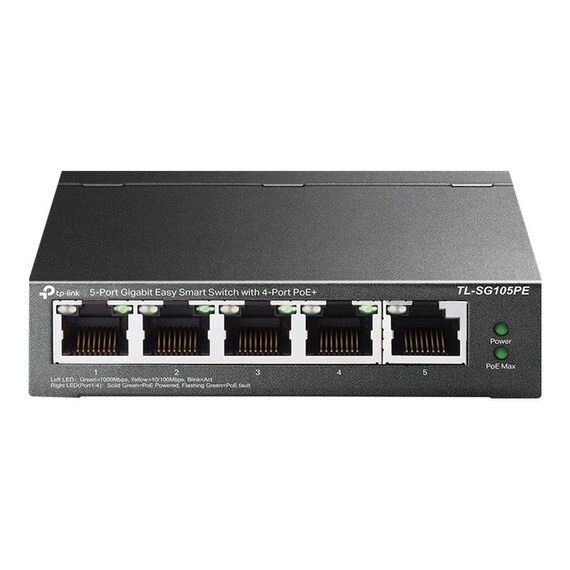

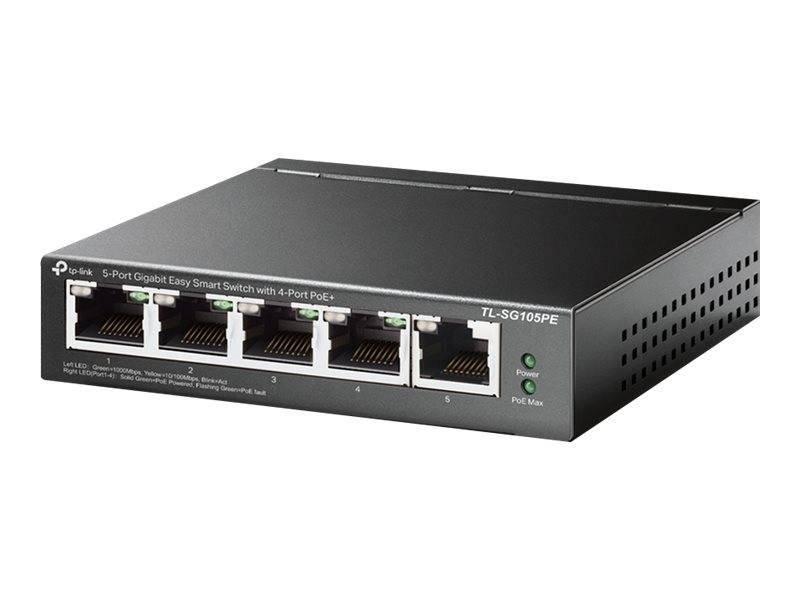

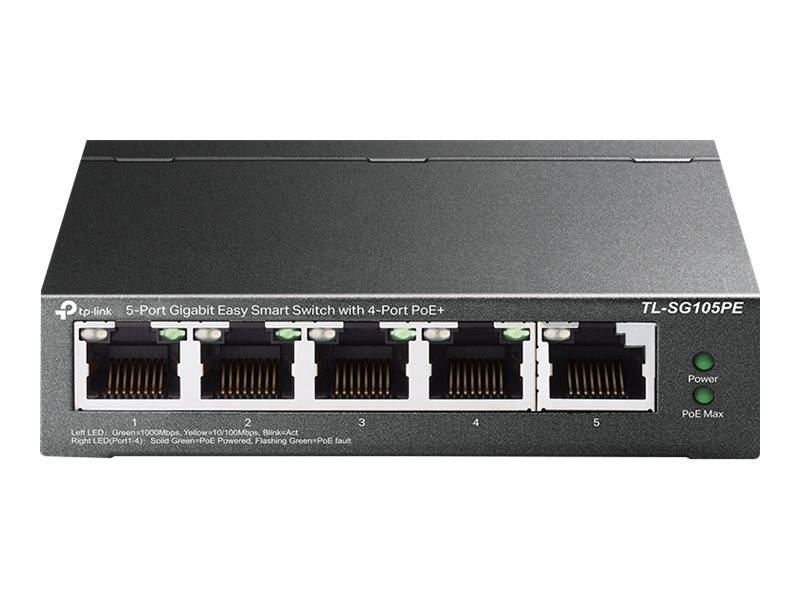

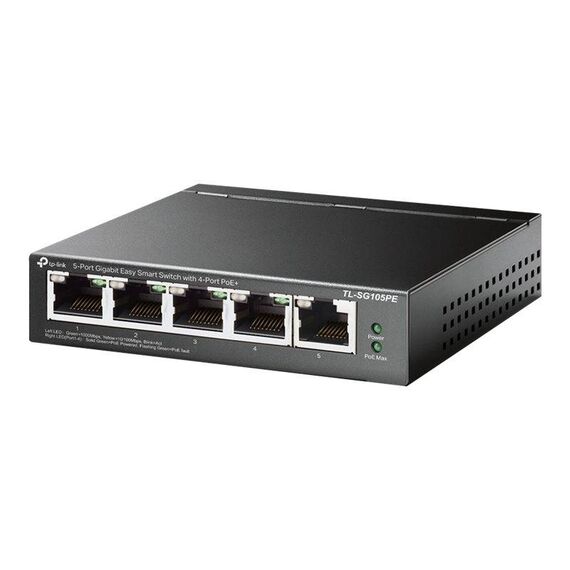

TP-Link TL-SG105PE / Switch / Managed / 5 x 10/100/1000 (4 PoE+) / desktop / PoE+ (65 W) | TL-SG105PE
Please sign in so that we can notify you about a reply
Special Features
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network setup on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Product Specification
| Device Type | Switch - 5 ports - Managed |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (4 PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 65 W |
| Performance | Switching capacity: 10 Gbps ¦ Packet forwarding rate: 7.44 Mpps |
| Capacity | Packet buffer size: 1.5 MB ¦ Priority queues: 4 ¦ Virtual interfaces (VLANs): 32 |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 16KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, store and forward, Cable Diagnostics Function, fanless, loop prevention, tagged VLAN, DiffServ Code Point (DSCP) support, Storm Control, rate limit, Static Link Aggregation, extend mode |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 1000Base-T RJ-45 4 ports (PoE+) - 30 W |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | DC 53.5 V - 1.31 A |
| Power Consumption Operational | 75.16 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Compliant Standards | FCC, RoHS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - TP-LINK - TL-SG105PE
General
5-Port
More Details
Product Code
07:126950
EAN Code
6935364052744
Manufacturer
TP-LINK
