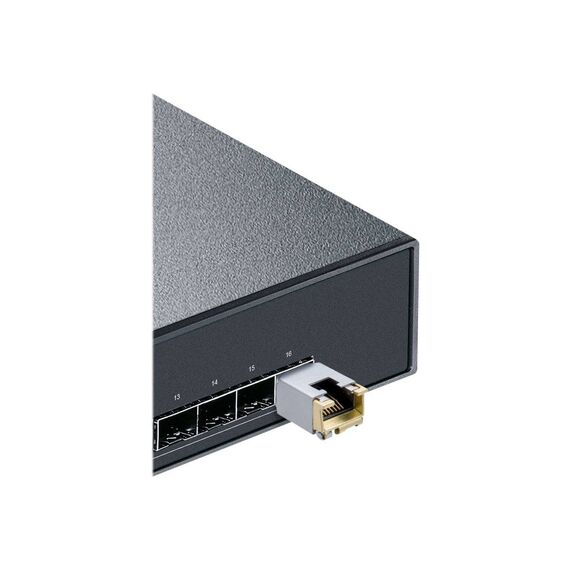

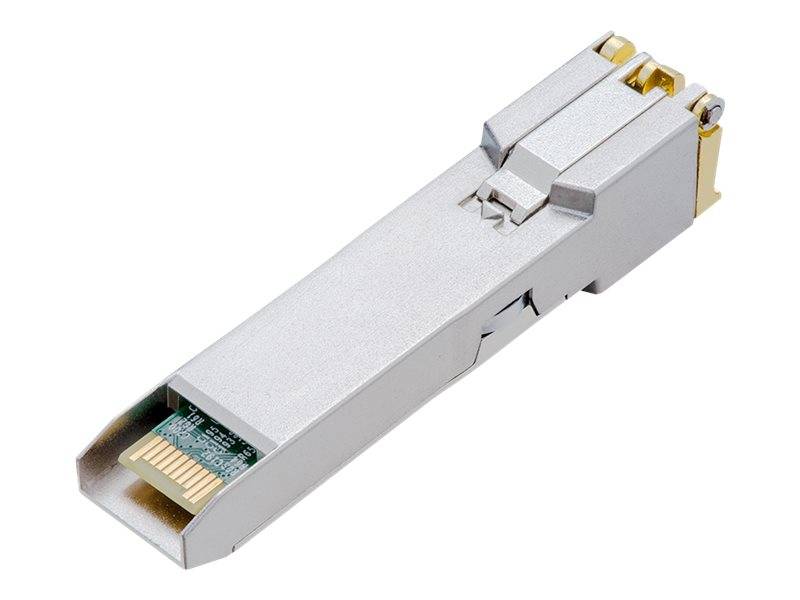

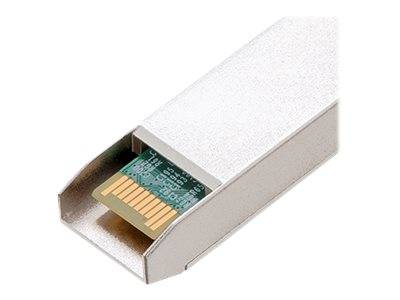

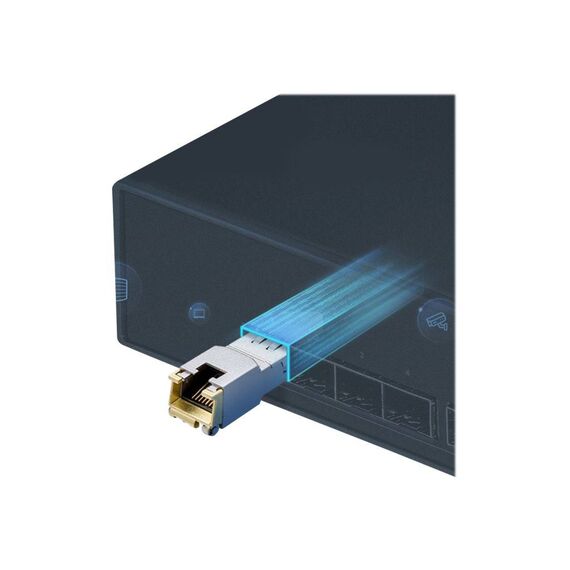

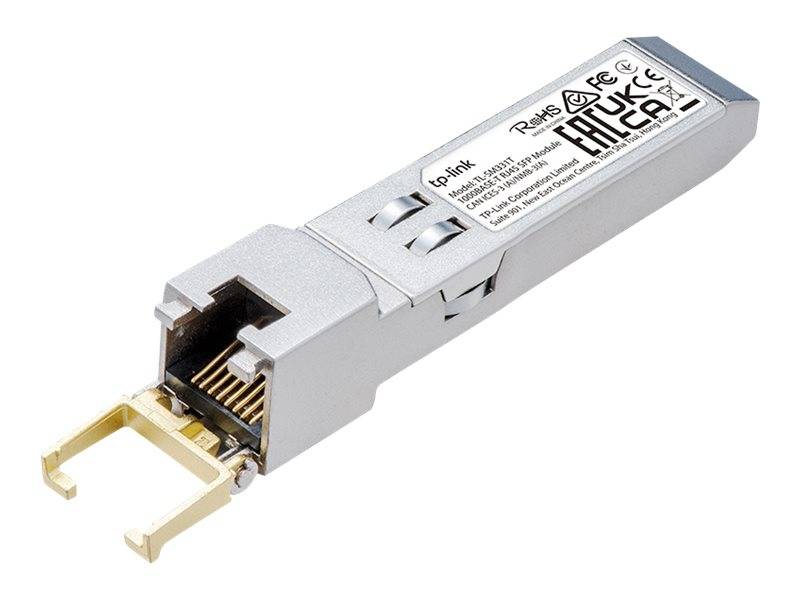

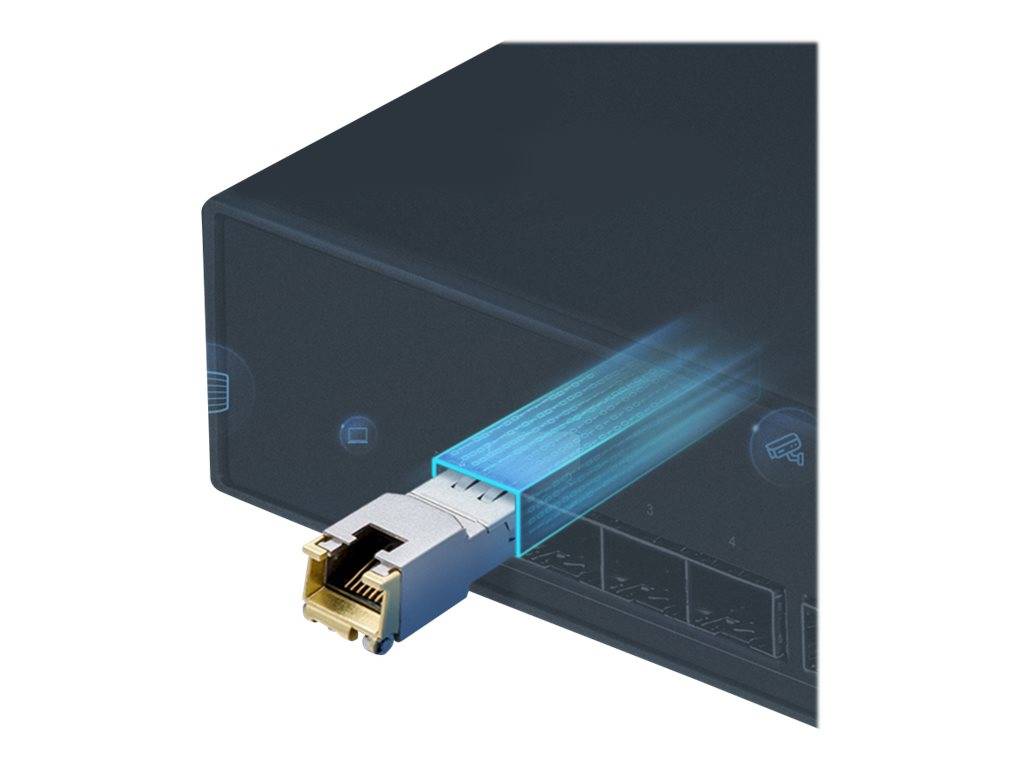

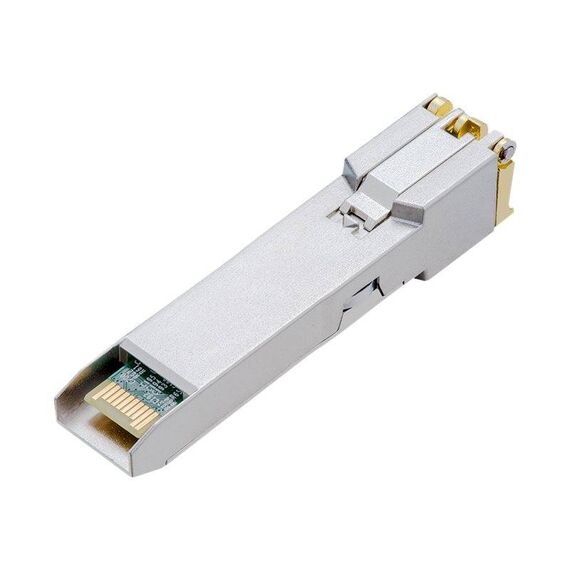

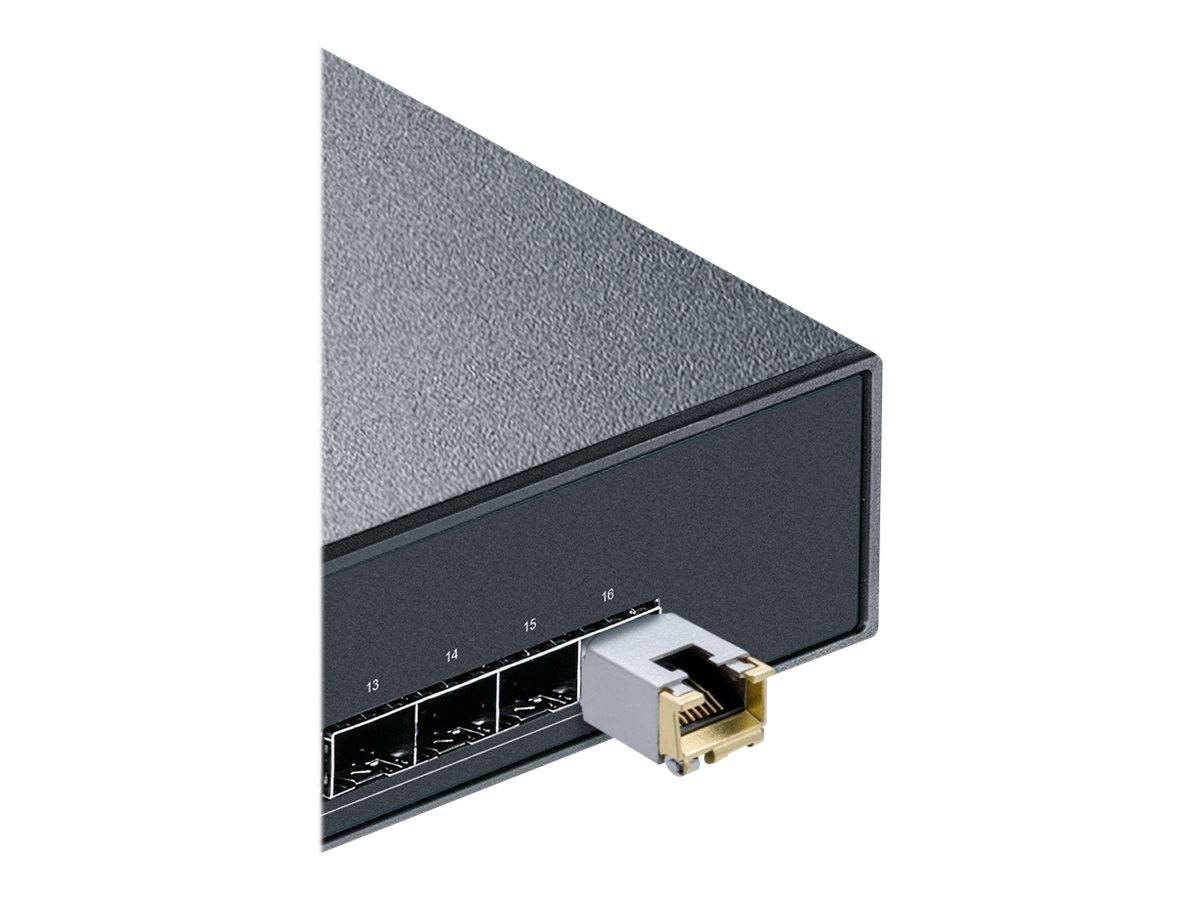

TP-Link TL-SM331T V1 / SFP (mini-GBIC) transceiver module / GigE / over CAT 5e / 1000Base-T / RJ-45 / up to 100 m / for JetStream TL-SG3452XP V1 | TL-SM331T
Please sign in so that we can notify you about a reply
Product Features
- Gigabit port for a high-speed connection
Transmit data seamlessly up to 100 meters between your SFP interface and the copper gigabit port. - Plug and Play
A plug-and-play design makes for easy deployment, no technician needed. - Durable metal casing
High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments. - Ensured compatibility
TL-SM331T is compatible with various optic fiber equipment from different vendors, such as TP-Link, Cisco, Huawei, Ubiquiti, D-link, Netgear and Mikrotik.
Special Features
- Support 1000BASE-T operation in host systems
- Support TX disable function
- For 100m reach over UTP Cat 5e or above cable
- Hot-pluggable SFP footprint features
- Commercial product operating temperature range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully metallic enclosure for low EMI
- Low power dissipation (0.5 W typical, 0.8 W max)
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 100 m |
| Compliant Standards | IEEE 802.3-2002 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play |
| Power | Power |
| Power Consumption Operational | 0.5 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Compatibility Information | Compatibility Information |
| Designed For | TP-Link JetStream TL-SG3452XP V1 |
Features - TP-LINK - SM331T
More Details
Product Code
CJ89224
EAN Code
4897098687741
Manufacturer
TP-LINK
