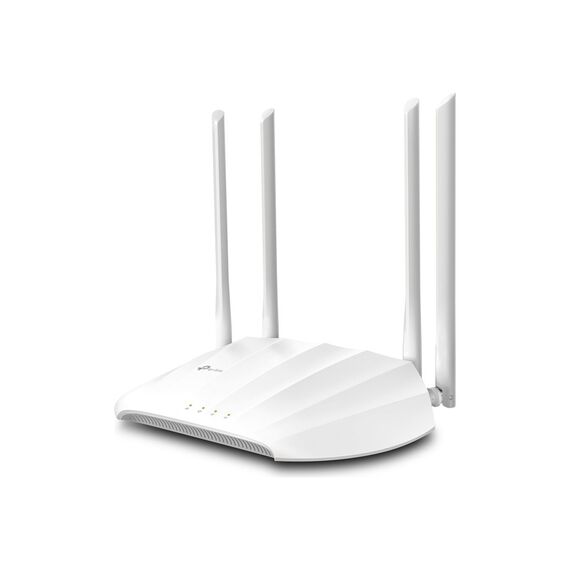

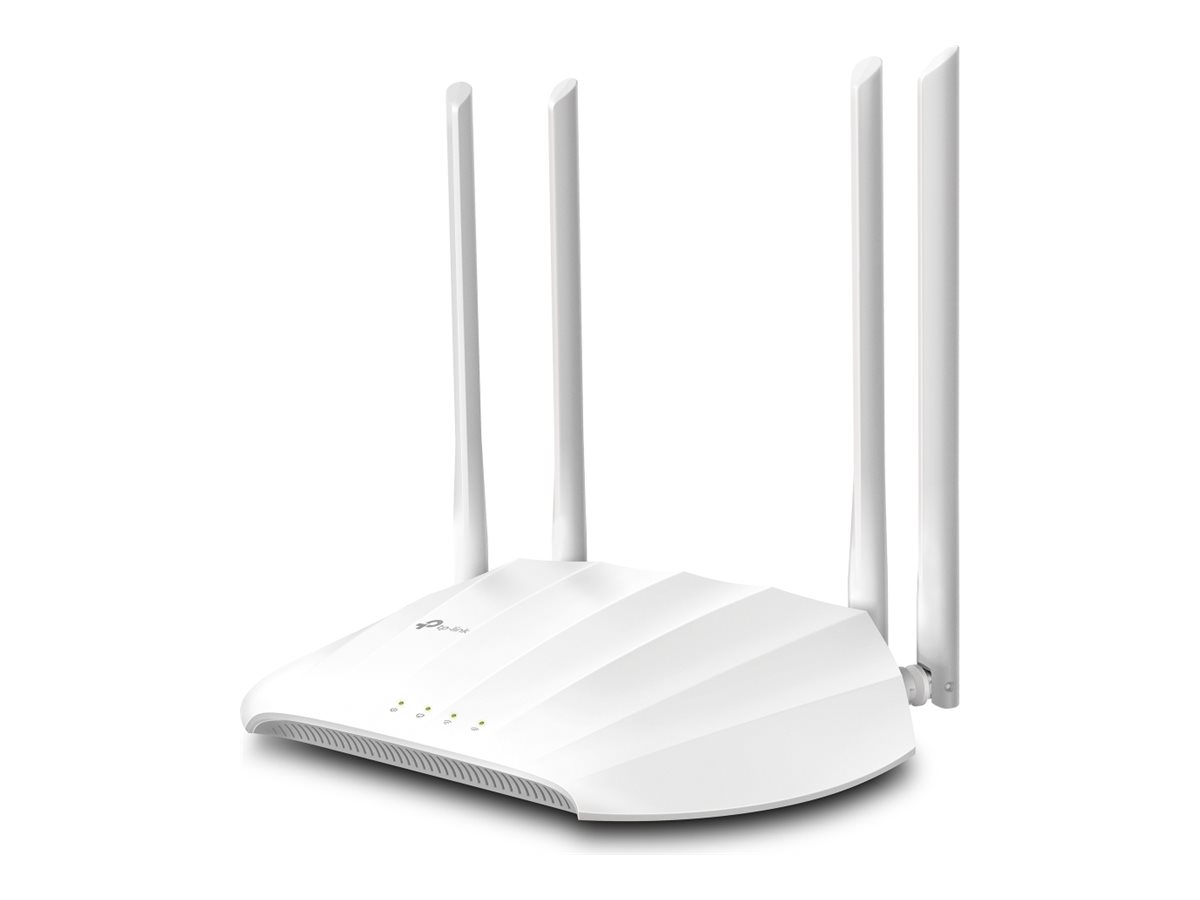

TP-Link TL-WA1801 V1 - Radio access point - GigE - Wi-Fi 6 - 2.4 GHz, 5 GHz | TL-WA1801
Product Features
- Lightning-fast AX1800 dual-band Wi-Fi
Upgrade your home or office network with the dual band 802.11ax access point, which offers combined speeds of up to 1800Mbps and is perfectly suited to serve multiple devices at the same time. The 5GHz band is ideal for Ultra-HD streaming video and online gaming, while the 2.4GHz band is there for all of your everyday Internet needs, like sending email and browsing the Internet. - Boosted Wi-Fi coverage
Four external antennas equipped with Beamforming technology concentrate Wi-Fi signals towards your devices to extend reliable Wi-Fi to every corner of your home or office - even over long distances. - WPA3 cyber security
The latest Wi-Fi security protocol, WPA3, brings capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi. - Gigabit-class wired performance
The Gigabit Ethernet port makes full use of Gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, IPTVs, and game consoles, etc. - Deploy anywhere with just one cable
Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration. - Multi-mode 4-in-1
Multiple operation modes are supported to give you full flexibility to tailor the Access Point to fit your network's needs. - Access Point Mode (Default Mode)
Extends your existing wired network and makes it wireless, allowing you to connect all of your Wi-Fi devices. - Multi-SSID mode
Simultaneously supports up to four separate SSIDs and VLANs on each band, making it ideal for offices where departments with different access policies share a wireless network. - Range extender mode
Extend your existing wireless coverage by repeating the wireless signal. - Client mode
Acts as a "Wireless Adapter" to connect your wired devices to a wireless network.
Special Fetures
- Gigabit Wi-Fi 6 speed - 1.8Gbps dual-band Wi-Fi for faster browsing, streaming and downloading, all at the same time
- Flexible deployment - supports passive PoE to carry electrical power and data simultaneously
- Multiple modes - supports access point, range extender, multi-SSID, and client modes to meet any network needs
- Boosted coverage - four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Captive portal - offers a designed portal page for heightened security and marketing
Product Specification
Device Type | Radio access point |
Width | 22.5 cm |
Depth | 14.55 cm |
Height | 3.7 cm |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 1.8 Gbps |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Network / Transport Protocol | IPv4, IPv6 |
Remote Management Protocol | SNMP, DHCP |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (5 GHz): 1201 Mbps <br /> Maximum data rate (2.4 GHz): 574 Mbps |
Wi-Fi Rating | AX1800 |
Features | Access Point operational mode, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), DHCP server, Multiple SSID support, reset button, Wireless Client Mode, DHCP client, Captive Portal, MU-MIMO technology, beamforming technology, WPS button, ping watchdog, range extender mode, wireless radio enable/disable |
Encryption Algorithm | WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3 |
Authentication Method | Radio Service Set ID (SSID) |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | |
Antenna | External integrated |
Antenna Qty | 4 |
Expansion / Connectivity | |
Interfaces | 1 x 1000Base-T - RJ-45 |
Miscellaneous | |
Included Accessories | PoE injector |
Cables Included | 1 x network cable |
Compliant Standards | FCC, RoHS |
Power | |
Power Over Ethernet (PoE) Supported | Passive PoE |
Power Device | External power adapter |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
