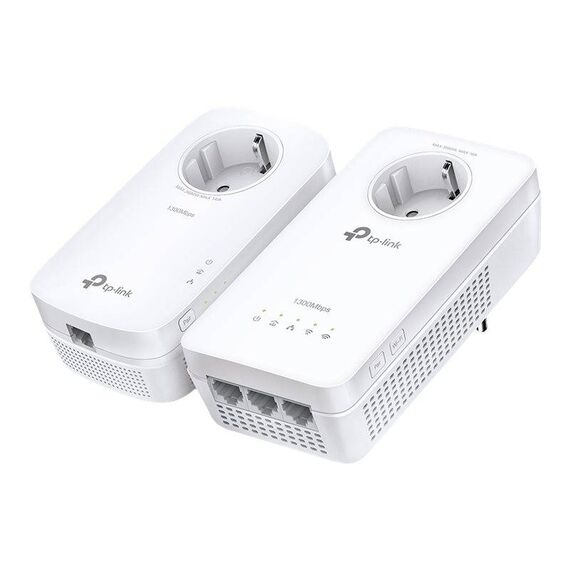

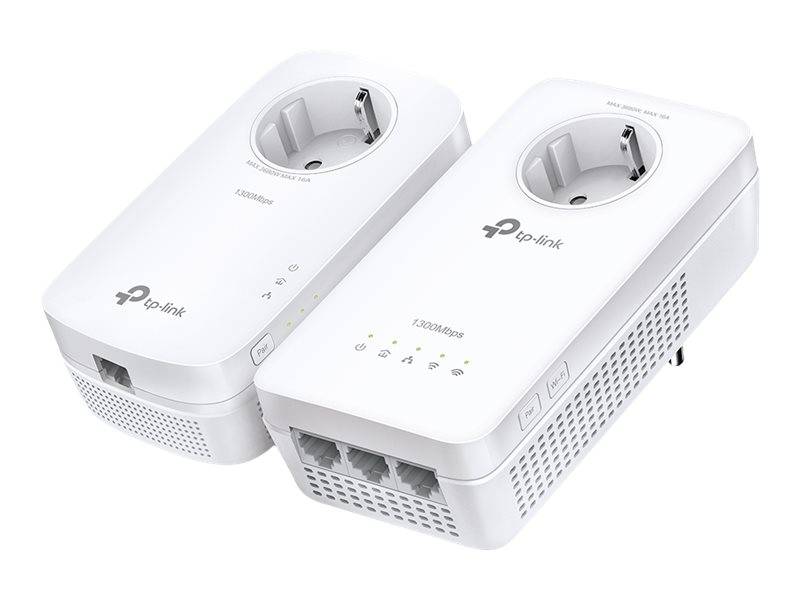

TP-Link TL-WPA8631P KIT V4 / Wi-Fi Kit / powerline adapter kit / GigE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 / Wi-Fi 5, Wi-Fi 6 / Dual Band / wall-pluggable | TL-WPA8631P KIT
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Powerline adapter kit |
| Kit Content | TL-PA8010P powerline adapter, TL-WPA8631P powerline adapter |
| Enclosure Type | Wall-pluggable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1300 Mbps |
| Max Range Indoors | 300 m |
| Performance | Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Encryption Algorithm | WPA, WPA2, 128-bit AES, WEP, WPA3 |
| Authentication Method | Radio Service Set ID (SSID) |
| Wi-Fi Rating | AC1200 |
| Features | Parental control, integrated power socket, reset button, beamforming technology, LED on/off button, Smart Roaming, Wi-Fi Auto-Sync, 2x2 MIMO technology, pair button, IPTV support, OneMesh support, Wi-Fi on/off button, One-Touch Connect |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV, HomePlug AV 2.0, IEEE 1901, IEEE 802.11ac, Plug and Play, RoHS |
| Status Indicators | Power, LAN, powerline, 2.4/5 GHz |
| Line Properties | Line Properties |
| Line Coding Format | OFDM |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - on extender ¦ 1 x HomePlug AV 2.0 ¦ 1 x HomePlug AV 2.0 - on extender |
| Power | Power |
| Power Device | Internal power supply |
| Miscellaneous | Miscellaneous |
| Cables Included | 2 x network cable |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - TL-WPA8631P KIT
More Details
Product Code
07:120222
EAN Code
6935364052539
Manufacturer
TP-LINK
