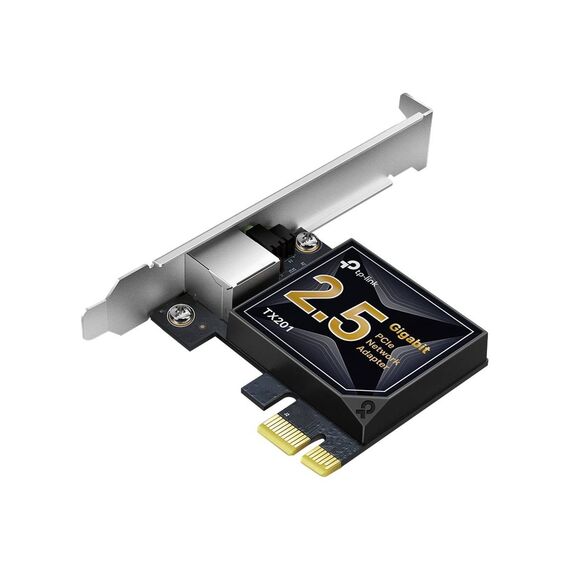

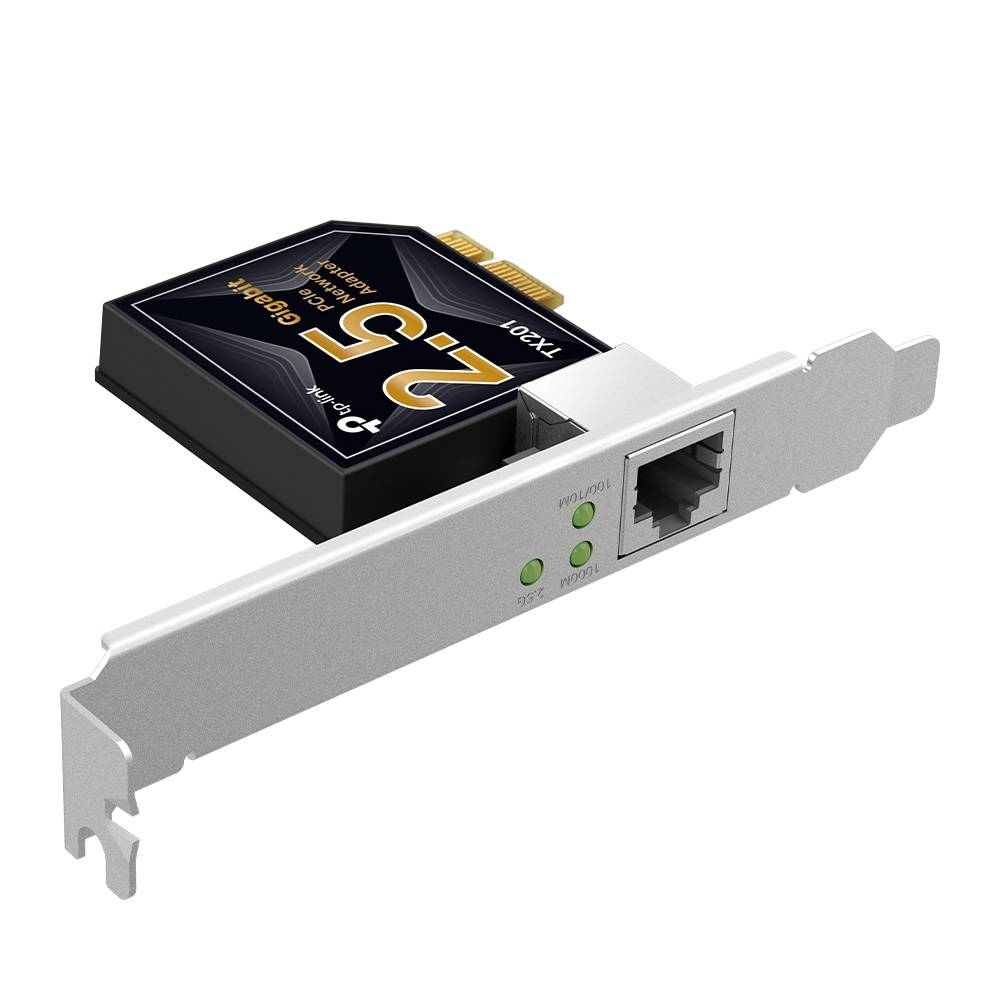

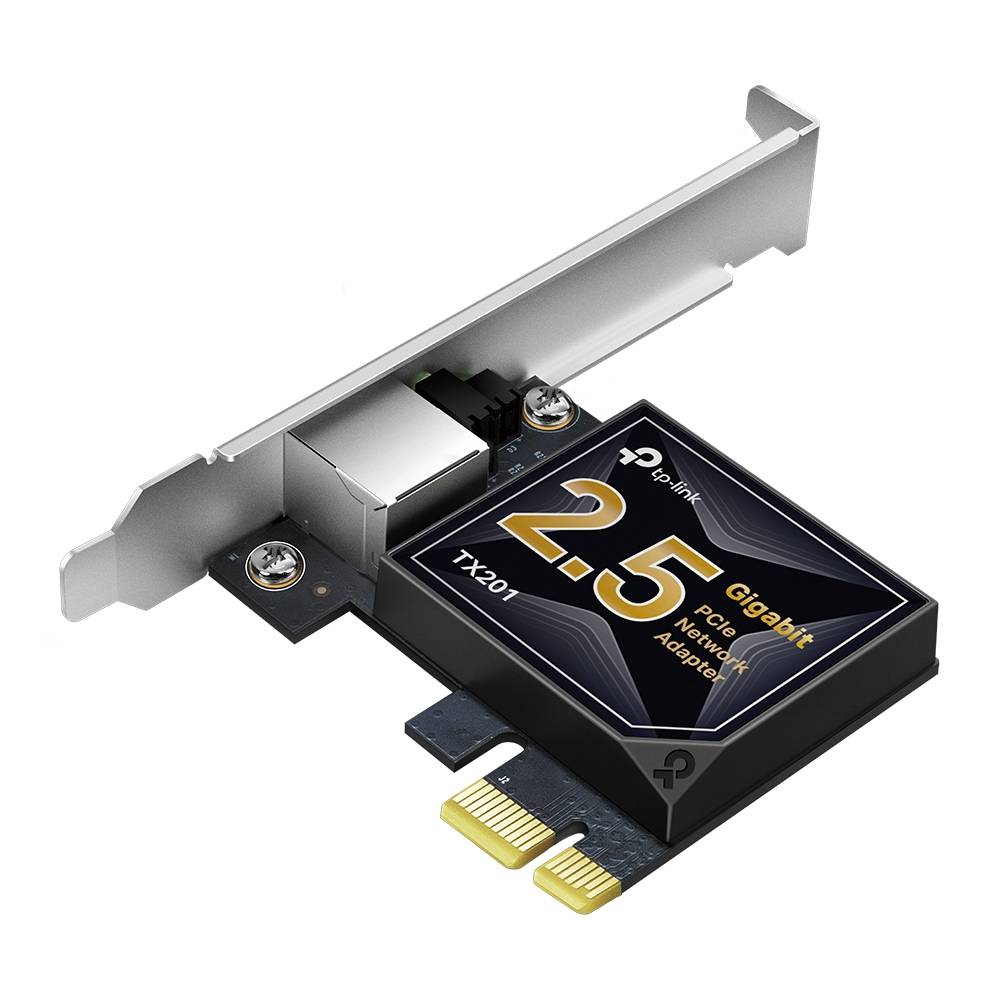

TP-Link TX201 V1 / Network adapter / PCIe 2.1 x4 low profile / 100M/1G/2.5G Gigabit Ethernet x 1 | TX201
Please sign in so that we can notify you about a reply
Product Features
- 2.5 Gbps networking
2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second - 2.5x faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task. - Low-profile and full-height brackets
In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design. - Household storage, share in seconds
For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office. - QoS support
Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.
Special Features
- 2.5 Gbps networking
- Low-profile and full-height brackets
- Household storage, share in seconds
- QoS support
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| Networking | Networking |
| Ports | 100M/1G/2.5G Gigabit Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Status Indicators | Link/activity |
| Features | Flow control, WOL, half duplex mode, full duplex mode, QoS, NAS support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 100M/1G/2.5 Gigabit Ethernet - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 7 / 8 / 8.1 / 10 / 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 2.15 cm |
| Depth | 12.08 cm |
| Height | 9.82 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - TX201
More Details
Product Code
CF88319
EAN Code
4897098687833
Manufacturer
TP-LINK
