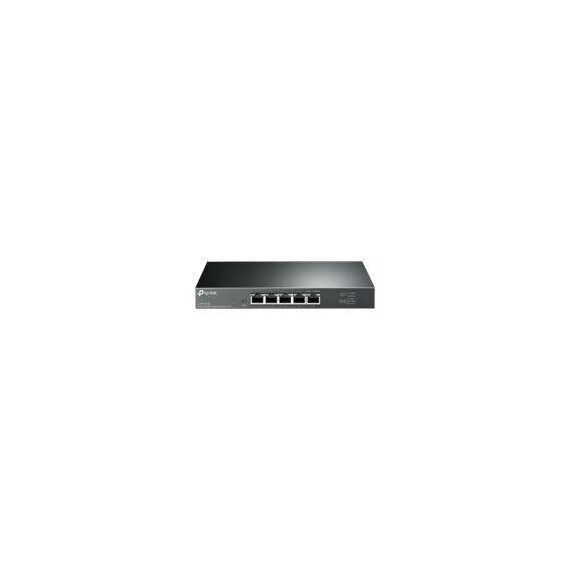

TP-Link TL-SG105-M2 / V1 / switch / unmanaged / 5 x 100/1000/2.5G / desktop, wall-mountable | TL-SG105-M2
Please sign in so that we can notify you about a reply
Product Features
- Five 2.5 Gbps ports
5x 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25 Gbps of switching capacity. - Super-fast connections
Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G Wi-Fi 6 AP, 4K video, and more. - Ideal for various scenarios
Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations, - Hassle-free cabling
Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle. - Silent operation
Industry-leading fanless design ensures silent operation, ideal for any home or business. - Plug and Play
Allows for easy deployment without the need for a technician. - Metal casing
Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Special Features
- Five 2.5 Gbps ports
- Super-fast connections
- Ideal for various scenarios
- Hassle-free cabling
- Silent operation
- Plug and Play
- Metal casing
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 5 x 100/1000/2.5G |
| Performance | Switching capacity: 25 Gbps ¦ Packet forwarding rate: 18.6 Mpps |
| Capacity | Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10000 bytes |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), fanless, metal housing, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.1p, IEEE 802.3x |
| Status Indicators | Power, status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 100/1000/2.5G RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | DC 12 V - 1 A |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20.9 cm |
| Depth | 12.6 cm |
| Height | 2.6 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - TP-LINK - TL-SG105-M2
General
5-Port
More Details
Product Code
CA70019
EAN Code
6935364052881
Manufacturer
TP-LINK
