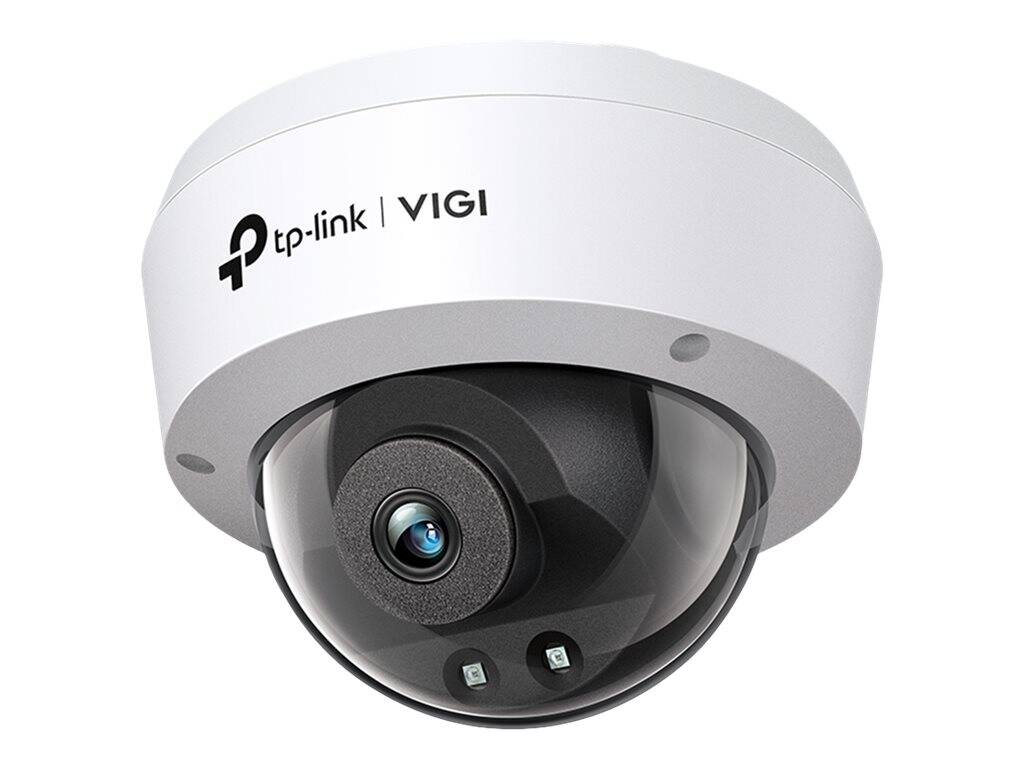

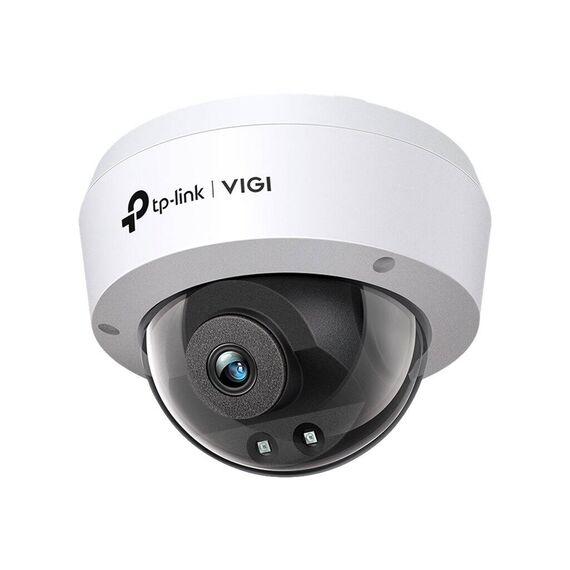

TP-Link VIGI C240 V1 / Network surveillance camera / pan / tilt / dome / vandal / waterproof / colour (Day&Night) / 4 MP / 2560 x 1440 / M12 mount / fixed focal / audio / LAN 10/100 / H.264, H.265, H.265+, H.264+ / DC 12 V / PoE | VIGI C240(4MM)
Please sign in so that we can notify you about a reply
Product Features
- 4MP super-high definition
The VIGI C240I camera comes with 4MP - more than enough pixels to pick up some of the more discrete details. - Human and vehicle classification
Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. - Smart detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects. - IK10 vandal-proof and IP67 waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime. - H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. - Smart video enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision. - PoE/12V DC
Two types of power supply not only give you more convenience but also make your wiring remarkably easy. - 2.8/4 mm lens
Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C240I comes with two different lens types to better suit your security needs. - Flexible management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Special Features
- 4MP super-high definition
- Human and vehicle classification
- Smart detection
- IK10 vandal-proof and IP67 waterproof
- H.265+
- Smart video enhancement
- PoE/12V DC
- 2.8/4 mm lens
- Flexible management
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Form Factor | Dome |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 11.5 cm |
| Depth | 11.5 cm |
| Height | 8.6 cm |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt - vandal / waterproof |
| Digital Video Format | H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Minimum Illumination | 0.005 lux - colour ¦ 0 lux - white light ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 640 x 480, 320 x 240, 352 x 288, 704 x 576, 1920 x 1080, 2304 x 1296, 2560 x 1440, 1280 x 1720, 2048 x 1280 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), sharpness control, white balance, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Open Network Video Interface Forum (ONVIF), infrared cut filter, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Abandoned Object Detection, Camera Tampering Detection, Smart IR, reset button, intrusion detection, object removal detection, exposure control, plastic housing, digest authentication, Line Crossing Detection, Vehicle Detection, IP address filtering, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, HTTPs encryption, human detection, Smart Detection, human and vehicle filtering, password reset via e-mail, 2 video streams |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/2.7" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 79.7 |
| Vertical Field of View (degree) | 42.9 |
| Diagonal Field of View (degree) | 93.9 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | 0 to 85 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting hardware, waterproof cable attachments |
| Compliant Standards | VCCI, BSMI, IP67, IK10, KC, IEEE 802.3af, IEEE 802.3at |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
Features - TP-LINK - VIGI C240(4mm)(UN)
More Details
Product Code
04:437973
EAN Code
4895252501094
Manufacturer
TP-LINK
