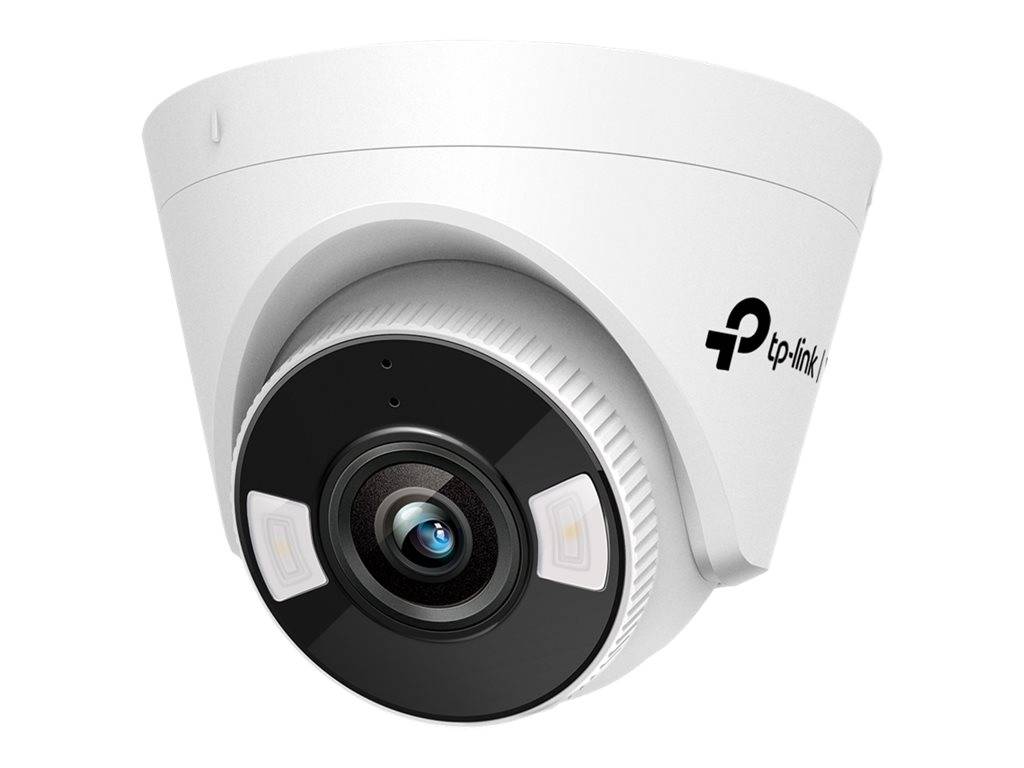

TP-Link VIGI C440 V1 / Network surveillance camera / pan / tilt / turret / colour (Day&Night) / 2560 x 1440 / M12 mount / fixed focal / audio / LAN 10/100 / H.264, H.265, H.265+, H.264+ / DC 12 V | VIGI C440(2.8MM)
Product Features
- Clarity and colors, all in one
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. - Plug-and-Play with one cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. - Smart detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera. - Active defense
Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected. - Every event is under your control
VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio. - More compression, more savings, same quality
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. - Flexible installation gives you more convenience
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.
Special Features
- Clarity and colors, all in one
- Plug-and-Play with one cable
- Smart detection
- Active defense
- Every event is under your control
- More compression, more savings, same quality
- Flexible installation gives you more convenience
Product Specification
Device Type | Network surveillance camera |
Audio Support | Yes: built-in speaker, built-in microphone |
Form Factor | Turret |
Connectivity Technology | Wired |
Width | 12.3 cm |
Depth | 8.4 cm |
Height | 12.3 cm |
Camera | Camera |
Type | Colour - Day&Night - pan / tilt |
Digital Video Format | H.264, H.265, H.265+, H.264+ |
Max Digital Video Resolution | 2560 x 1440 |
Motion Detection | Yes |
Infrared LEDs | Yes |
Infrared Distance | 30 m |
Digital Video Capture Resolution | 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2048 x 1280 |
Frame Rate (max) | 30 frames per second |
Features | Backlight Compensation (BLC), IR filter, sharpness control, saturation control, brightness control, contrast control, image mirror, ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), Live View Control, programmable white balance, Camera Tampering Detection, Smart IR, reset button, password protection, 2-way voice communication, Region of Interest (ROI), exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), HTTPs encryption, human detection, Smart Detection, instant notification, object enter area detection, MiMo WiFi connectivity, Active Defense, password reset via e-mail, 2 video streams, video tampering detection |
Image Sensor | Image Sensor |
Type | CMOS 1/3" |
Lens Construction | Lens Construction |
Type | M12 mount - fixed focal |
Focal Length | 2.8 mm |
Lens Iris | F/1.6 |
Horizontal Field of View (degree) | 102 |
Vertical Field of View (degree) | 55 |
Diagonal Field of View (degree) | 122 |
Panning | Panning |
Range (degree) | 0 to 360 |
Tilting | Tilting |
Range (degree) | 0 to 85 |
Interfaces | Interfaces |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL |
Expansion / Connectivity | Expansion / Connectivity |
Ports | LAN - RJ-45 |
Supported Memory Cards | SD Memory Card |
Miscellaneous | Miscellaneous |
Included Accessories | Screws, mounting template, anchors |
Compliant Standards | VCCI, BSMI, RoHS, RCM, IEEE 802.3af, IEEE 802.3at |
Power | Power |
Power Requirements | DC 12 V |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -30 °C |
Max Operating Temperature | 60 °C |
