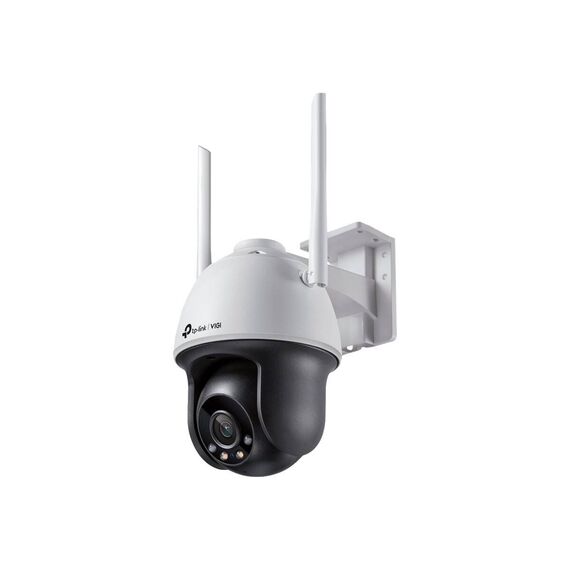

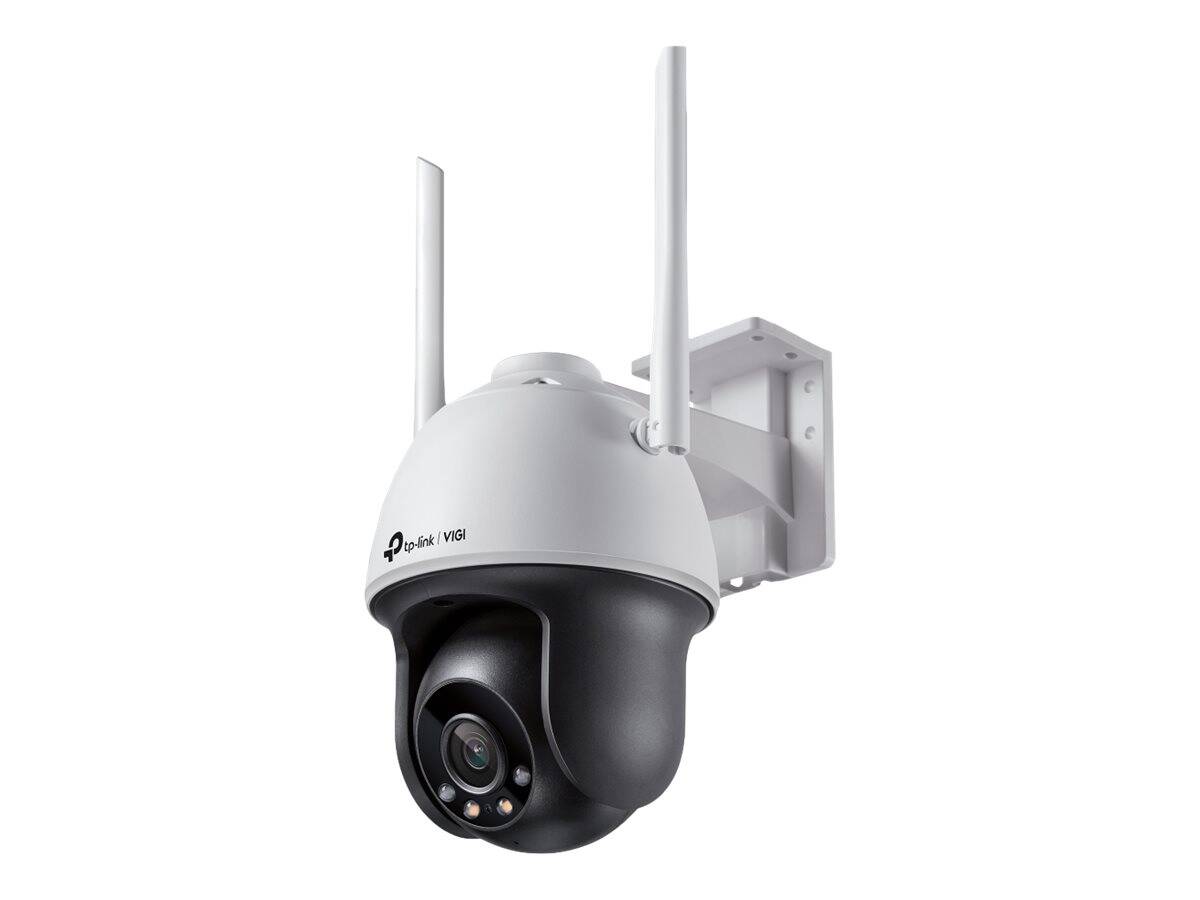

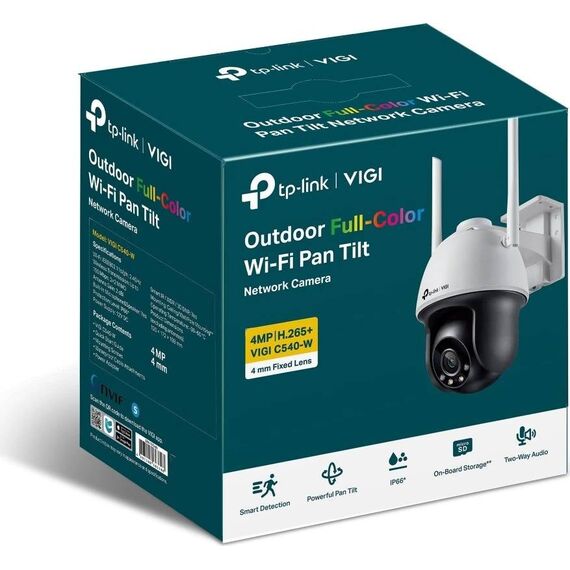

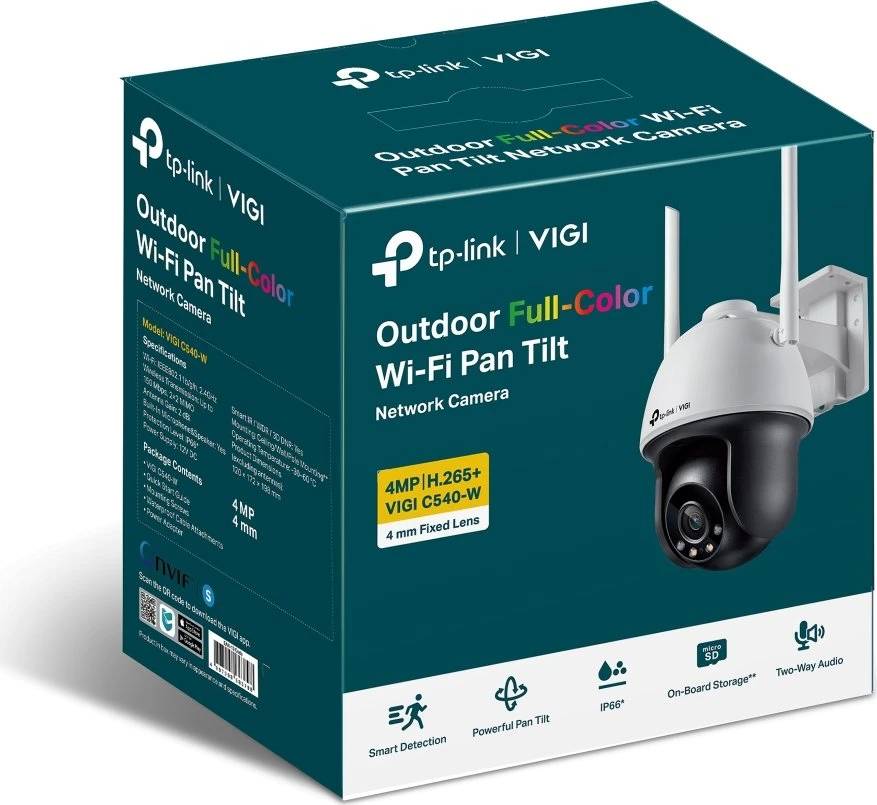

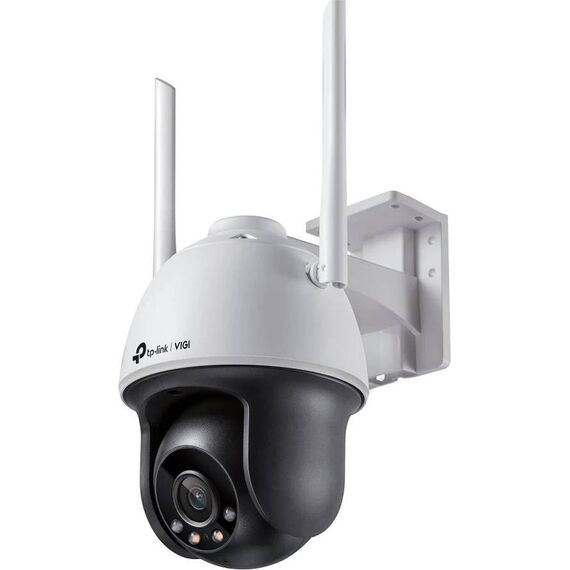

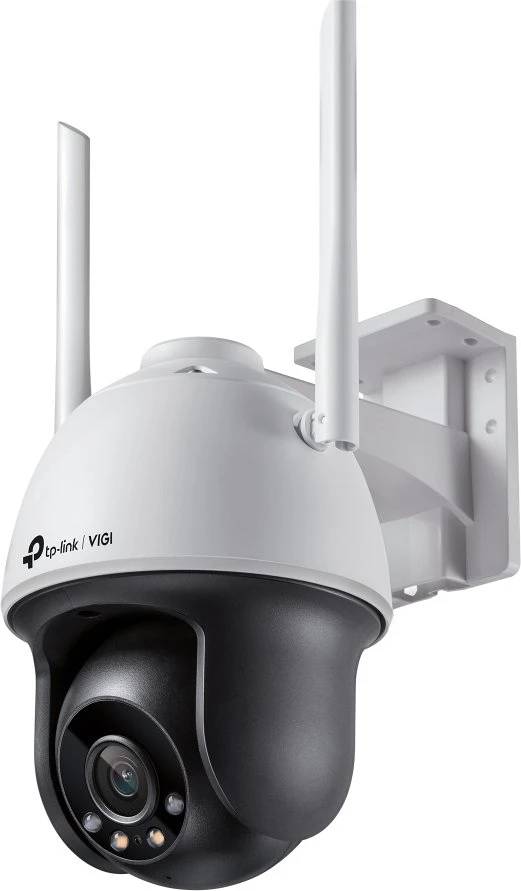

TP-Link VIGI C540-W V1 / Network surveillance camera / pan / tilt / turret / outdoor / weatherproof / colour (Day&Night) / 4 MP / 2560 x 1440 / M12 mount / fixed focal / audio / wireless / Wi-Fi / LAN 10/100 / H.264, H.265, H.265+, H.2 | VIGI C540-W(4MM)
Please sign in so that we can notify you about a reply
Product Features
- Powerful pan tilt
Cover every corner flexibly with VIGI's pan tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property. - Clarity and colors, all in one
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. - Smart detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera. - Active defense
Warn potential intruders instantly with sound and light when abnormal events are detected. - Every Event is under your control
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio. - Flexible management and storage
Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as on-board storage with an SD card slot. - Flexible installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
Special Features
- 4MP high definition - the camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
- 24h full-color - obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
- Powerful pan tilt - customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property
- Wireless outdoor connection - simple and quick deployment with Wi-Fi signals
- Waterproof - reliable IP66 for stable outdoor performance
- Smart detection (motion detection, area intrusion, line-crossing, video tampering) - receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera
- H.265+ - without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in speaker, built-in microphone |
| Form Factor | Turret |
| Camera Mount Type | Wall mount, ceiling mount, pole mount |
| Connectivity Technology | Wired, wireless |
| Width | 12 cm |
| Depth | 17.2 cm |
| Height | 19.8 cm |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt - outdoor - weatherproof |
| Digital Video Format | H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2048 x 1280 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), sharpness control, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), programmable white balance, Smart IR, reset button, password protection, auto tracking, 2-way voice communication, Region of Interest (ROI), intrusion detection, exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), Zoom compatible, HTTPs encryption, human detection, Smart Detection, instant notification, PoE support, password reset via e-mail, 2 video streams, video tampering detection |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/3" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 79 |
| Vertical Field of View (degree) | 43 |
| Diagonal Field of View (degree) | 93 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | 0 to 120 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting hardware, waterproof cable attachments |
| Compliant Standards | VCCI, BSMI, RoHS, IP66, KC, NCC, RCM, JRF, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, WPA2-PSK, WPA |
| Power | Power |
| Power Requirements | DC 12 V |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
Features - TP-LINK - VIGI C540-W(4MM)
More Details
Product Code
CH12219
EAN Code
4897098683798
Manufacturer
TP-LINK
