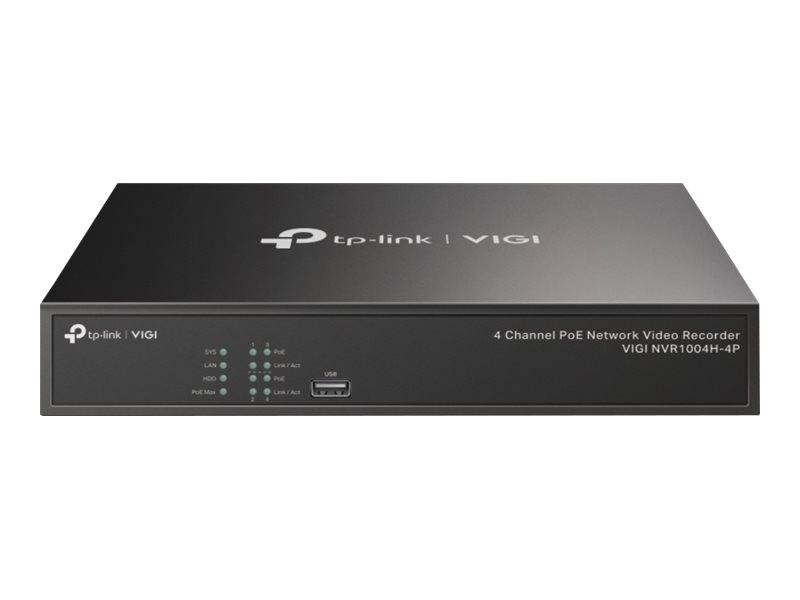

TP-Link VIGI NVR1004H-4P V1 / NVR / 4 channels / networked | VIGI NVR1004H-4P
Product Features
- 4K HDMI video output and 16MP decoding capacity
Sharp image definition 8MP and a 4-channel display ensures you capture every detail, from every angle. - Dedicated 4 PoE+ ports for simplified IP camera deployment
Features 4x 10/100 Mbps PoE+ ports, the NVR supports 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions. - 4-channel simultaneous playback
Replay the feed from 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. - More compression, more savings and same quality
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. - ONVIF ensures compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. - Plug-and-Play
Allows unused VIGI IP Cameras to be added automatically to the NVR and activated instantly, making installation faster than ever before. - 24/7 continuous recording
Stores 10 TB of footage from managed cameras to secure your data for quick, convenient access. - Remote monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience. - Two-way audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management. - 80 Mbps video access bandwidth
High video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage four HD cameras. - Run your business with peace of mind
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build - whenever, wherever. These outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Special Features
- 4K HDMI video output and 16MP decoding capacity
- Simplified deployment with PoE+
- 4-Channel simultaneous playback
- H.265+ smart video coding
- ONVIF ensures compatibility
- Plug-and-Play
- 24/7 continuous recording
- Remote monitoring
- Two-way audio
- 80 Mbps video access bandwidth
- Smart detection
Product Specification
Device Type | NVR |
Video Channels | 4 |
IP Cameras Supported | 4 |
Image Resolution | 1280x720, 1920x1080, 1024x768, 1280x1024, 1440x900, 1680x1024, 3840x2160 |
Compression Format | H.264, H.265, H.264+, H.265+ |
Package Content | Mouse, HDD screws |
Compliant Standards | Plug and Play, IEEE 802.3af, IEEE 802.3at |
Security DVR | Security DVR |
Playback Search | Date / time, event |
Networked | Yes |
Features | 80Mbps Incoming Bandwidth, 60Mbps Outgoing Bandwidth |
Hard Drive | Hard Drive |
Quantity Supported | 1 |
Interface | Serial ATA |
Supported Max Total Capacity | 10 TB |
Video Server | Video Server |
Features | Two-way audio support |
Networking | Networking |
Network Interfaces | Ethernet 10Base-T/100Base-TX |
Supported Protocols | DHCP, DNS, NTP, TCP/IP, UPnP |
Features | ONVIF support, 53W PoE+ power budget |
Connections | Connections |
Video Input Ports | RJ-45 x 4 |
Video Output Ports | HDMI x 1, VGA x 1 |
Audio Input Ports | RCA x 1 |
Audio Output Ports | RCA x 1 |
Network Port | 10/100Base-T |
Other Ports | USB 2.0 x 2 |
Power | Power |
Voltage | 53.5 V |
Power Consumption | 4.25 Watt |
Power Consumption Details | Without HDD |
Dimensions & Weight | Dimensions & Weight |
Width | 24.62 cm |
Depth | 14.82 cm |
Height | 4.5 cm |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 55 °C |
