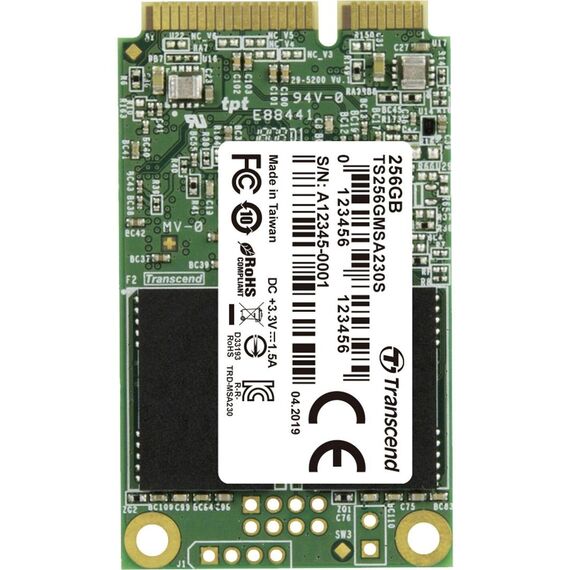

Transcend 230S / SSD / 256 GB / internal / mSATA / SATA 6Gb/s | TS256GMSA230S
Please sign in so that we can notify you about a reply
Special Features
- 3D NAND flash memory
- DDR3 DRAM cache
- Advanced Global Wear-leveling and Block management for reliability
- Built-in LDPC ECC (Error Correction Code) functionality
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 256 GB |
| Form Factor | mSATA |
| Interface | SATA 6Gb/s |
| Features | Native Command Queuing (NCQ), TRIM support, Security Command support, Advanced 3D NAND Technology, S.M.A.R.T. |
| Width | 29.85 mm |
| Depth | 50.8 mm |
| Height | 4.85 mm |
| Weight | 9 g |
| Performance | Performance |
| SSD Endurance | 70 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 500 MBps (write) |
| Maximum 4KB Random Write | 70000 IOPS |
| Maximum 4KB Random Read | 55000 IOPS |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | mSATA |
| Software & System Requirements | Software & System Requirements |
| OS Required | Linux Kernel 2.6.31 or later, Microsoft Windows 7 / 8 / 10 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Transcend - TS256GMSA230S
Form Factor
- 2.5"
- Internal
Capacity
256GB
Interface
- mSata
More Details
Product Code
F613064
EAN Code
0760557843689
Manufacturer
Transcend
