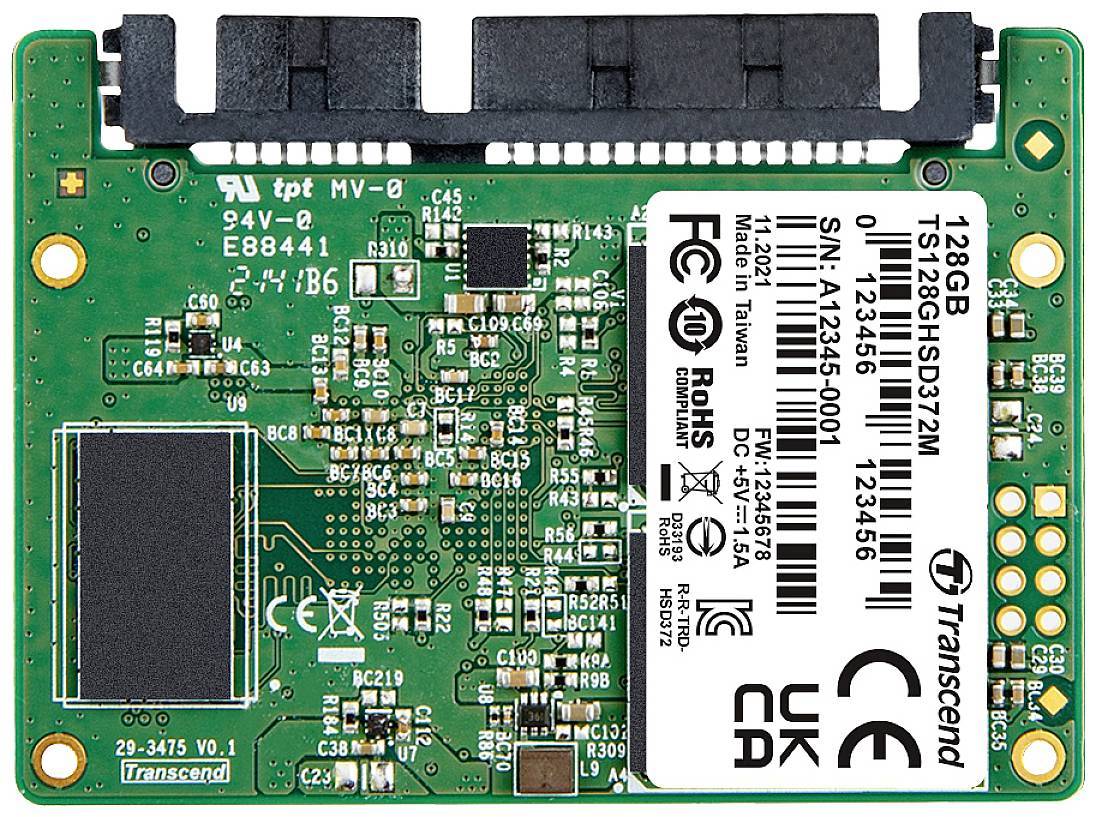

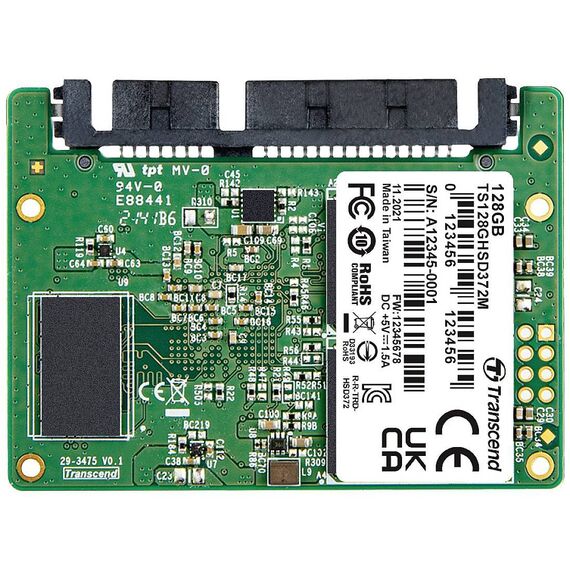

Transcend HSD372M / SSD / 128 GB / internal / SATA 6Gb/s | TS128GHSD372M

Special Features

Built-in BCH ECC (Error Correction Code) functionality
Advanced Global Wear-Leveling and Block management for reliability
Advanced Garbage Collection
Static Data Refresh
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
TRIM command for better performance
NCQ command for better performance
Power-saving DevSleep (Device Sleep) mode

Product Specification

Device Type	Solid state drive - internal
Capacity	128 GB
NAND Flash Memory Type	Multi-level cell (MLC)
Interface	SATA 6Gb/s
Features	Native Command Queuing (NCQ), TRIM support, Advanced Garbage Collection, DDR3 DRAM Cache, Advanced Global Wear Leveling, built-in BCH ECC, Corner Bond technology, S.M.A.R.T., JEDEC MO-297
Width	54 mm
Depth	39.8 mm
Height	4 mm
Weight	9 g
Performance	Performance
Drive Writes Per Day (DWPD)	2.6
SSD Endurance	360 TB
Drive Transfer Rate	600 MBps (external)
Internal Data Rate	530 MBps (read) / 200 MBps (write)
Maximum 4KB Random Write	50000 IOPS
Maximum 4KB Random Read	70000 IOPS
Reliability	Reliability
MTBF	2,500,000 hours
Expansion & Connectivity	Expansion & Connectivity
Interfaces	1 x SATA 6 Gb/s - 22 pin Serial ATA
Power	Power
Power Consumption	1.85 Watt (active) Â¦ 0.38 Watt (sleep)
Miscellaneous	Miscellaneous
Compliant Standards	BSMI, FCC, RoHS2, UKCA
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	70 Â°C
Min Storage Temperature	-40 Â°C
Max Storage Temperature	85 Â°C
Humidity Range Operating	5 - 95%
Shock Tolerance (operating)	1500 g @ 0.5 ms
Vibration Tolerance (operating)	20 g @ 7-2000 Hz
