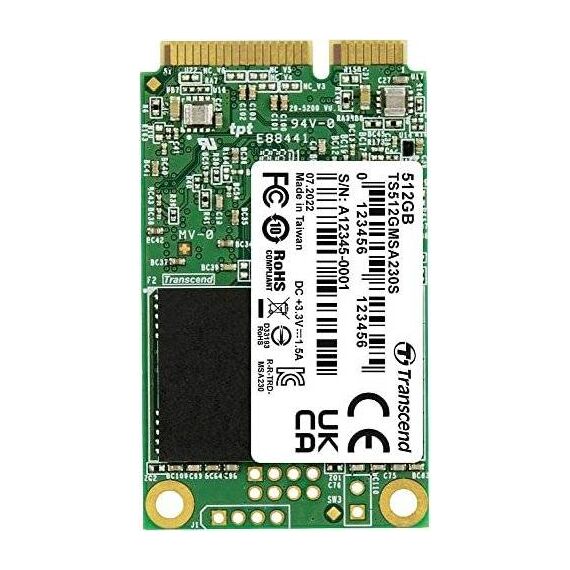

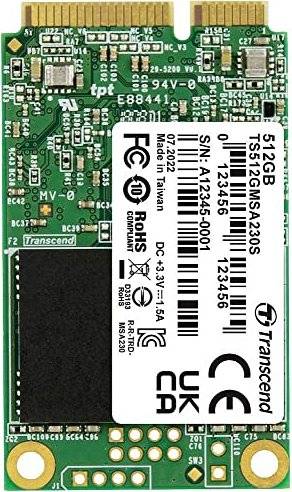

Transcend MSA230S / SSD / 512 GB / internal / mSATA / SATA 6Gb/s | TS512GMSA230S
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 512 GB |
| Form Factor | mSATA |
| Interface | SATA 6Gb/s |
| Features | Native Command Queuing (NCQ), TRIM support, Wear Leveling Support, Advanced Garbage Collection, DDR3 DRAM Cache, DevSleep mode, Block management, Security Command support, LDPC error correction, 3D NAND Technology, RAID Engine, S.M.A.R.T. |
| Width | 29.85 mm |
| Depth | 50.8 mm |
| Height | 4.85 mm |
| Weight | 9 g |
| Performance | Performance |
| Drive Writes Per Day (DWPD) | 0.5 |
| SSD Endurance | 280 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 500 MBps (write) |
| 4KB Random Read | 65000 IOPS |
| 4KB Random Write | 85000 IOPS |
| Reliability | Reliability |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Compatible Bay | mSATA |
| Software & System Requirements | Software & System Requirements |
| OS Required | Microsoft Windows 7 or later, Linux 2.6.31 or later |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, KC, RCM, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Transcend - TS512GMSA230S
Form Factor
- 2.5"
- Internal
Capacity
512GB
Interface
- mSata
More Details
Product Code
CF33325
EAN Code
0760557859147
Manufacturer
Transcend
