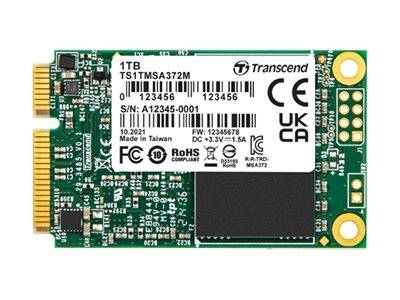

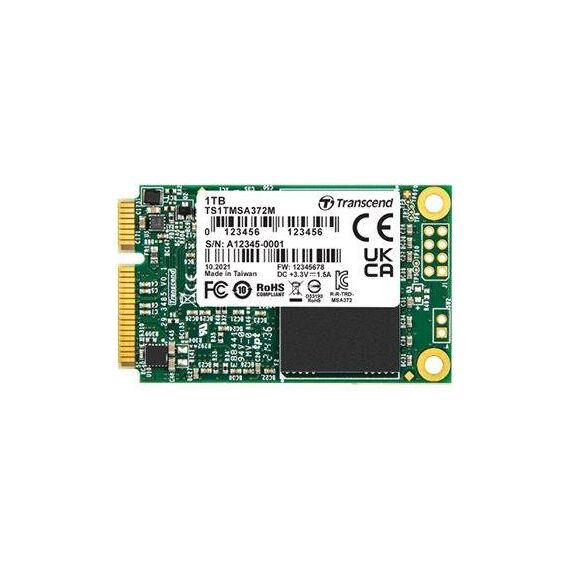

Transcend MSA372M / SSD / 16 GB / internal / mSATA / SATA 6Gb/s | TS16GMSA372M
Please sign in so that we can notify you about a reply
Special Features
- Built-in BCH ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Security Command
- Power-saving DevSleep (Device Sleep) mode
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 16 GB |
| NAND Flash Memory Type | Multi-level cell (MLC) |
| Form Factor | mSATA |
| Interface | SATA 6Gb/s |
| Features | Native Command Queuing (NCQ), TRIM support, StaticDataRefresh Technology, Advanced Garbage Collection, DDR3 DRAM Cache, DevSleep mode, Advanced Global Wear Leveling, built-in BCH ECC, Block management, Security Command support, Corner Bond technology, S.M.A.R.T., JEDEC MO-300A |
| Width | 50.8 mm |
| Depth | 29.85 mm |
| Height | 4.85 mm |
| Weight | 8 g |
| Performance | Performance |
| Drive Writes Per Day (DWPD) | 2.6 |
| SSD Endurance | 2360 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 450 MBps (write) |
| Maximum 4KB Random Write | 70000 IOPS |
| Maximum 4KB Random Read | 70000 IOPS |
| Reliability | Reliability |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s - 52 pin mini-SATA |
| Compatible Bay | mSATA |
| Power | Power |
| Power Consumption | 2.64 Watt (active) ¦ 0.4 Watt (sleep) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, RoHS2, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Operating | 5 - 95% |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 20 g @ 7-2000 Hz |
Features - Transcend - TS16GMSA372M
Form Factor
- 2.5"
- Internal
Capacity
16GB
Interface
- mSata
More Details
Product Code
CD70159
EAN Code
0760557854609
Manufacturer
Transcend
