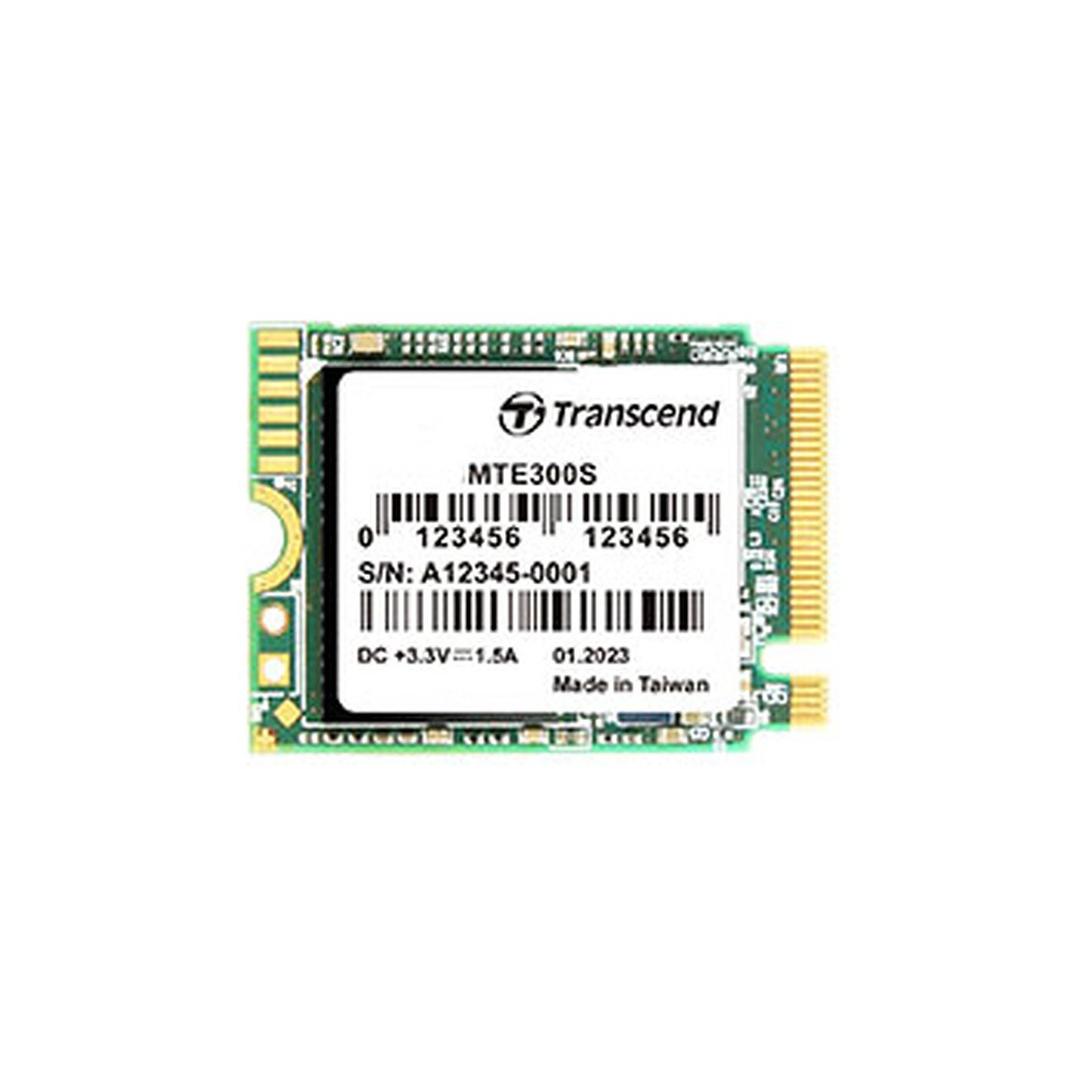

Transcend MTE300S / SSD / 512 GB / internal / M.2 2230 / PCIe 3.0 x4 (NVMe) | TS512GMTE300S
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 512 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2230 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | Advanced Garbage Collection, LDPC error correction, 3D NAND Technology, S.M.A.R.T. |
| Width | 22 mm |
| Depth | 30 mm |
| Height | 2.23 mm |
| Weight | 4 g |
| Performance | Performance |
| Drive Writes Per Day (DWPD) | 0.21 |
| SSD Endurance | 200 TB |
| Internal Data Rate | 2000 MBps (read) / 1100 MBps (write) |
| 4KB Random Read | 90000 IOPS |
| 4KB Random Write | 190000 IOPS |
| Reliability | Reliability |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2230 |
| Software & System Requirements | Software & System Requirements |
| Software Included | Transcend SSD Scope |
| OS Required | Linux Kernel 2.6.31 or later, Microsoft Windows 7 or later |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, KC, RCM, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Transcend - TS512GMTE300S
Form Factor
- 2.5"
- Internal
Capacity
512GB
Interface
- M.2
More Details
Product Code
04:422798
EAN Code
0760557861201
Manufacturer
Transcend
