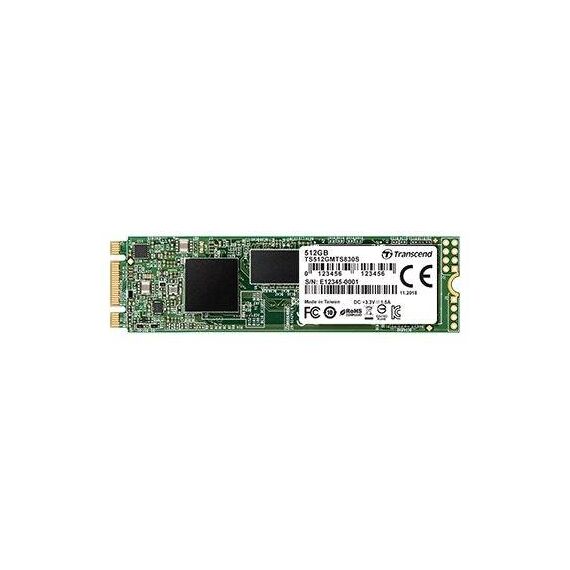

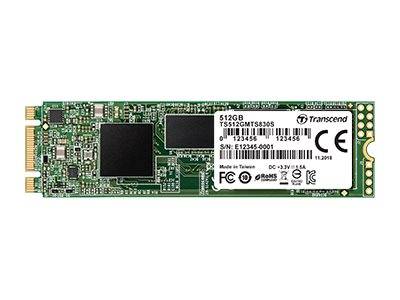

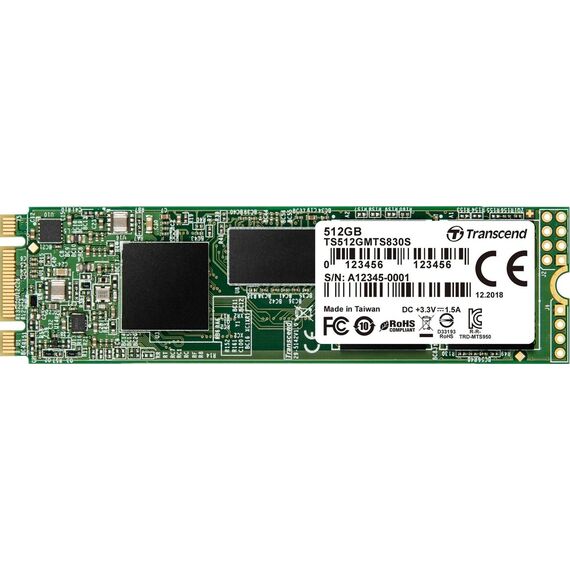

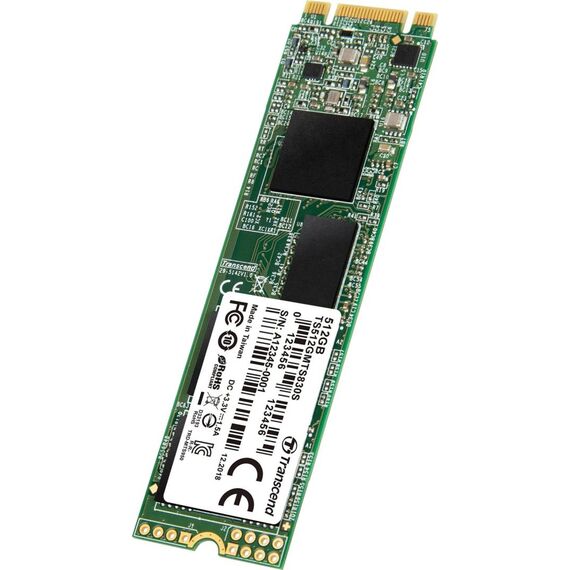

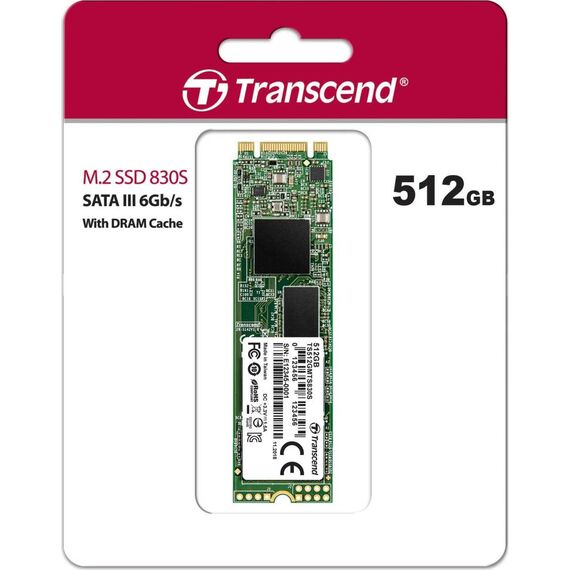

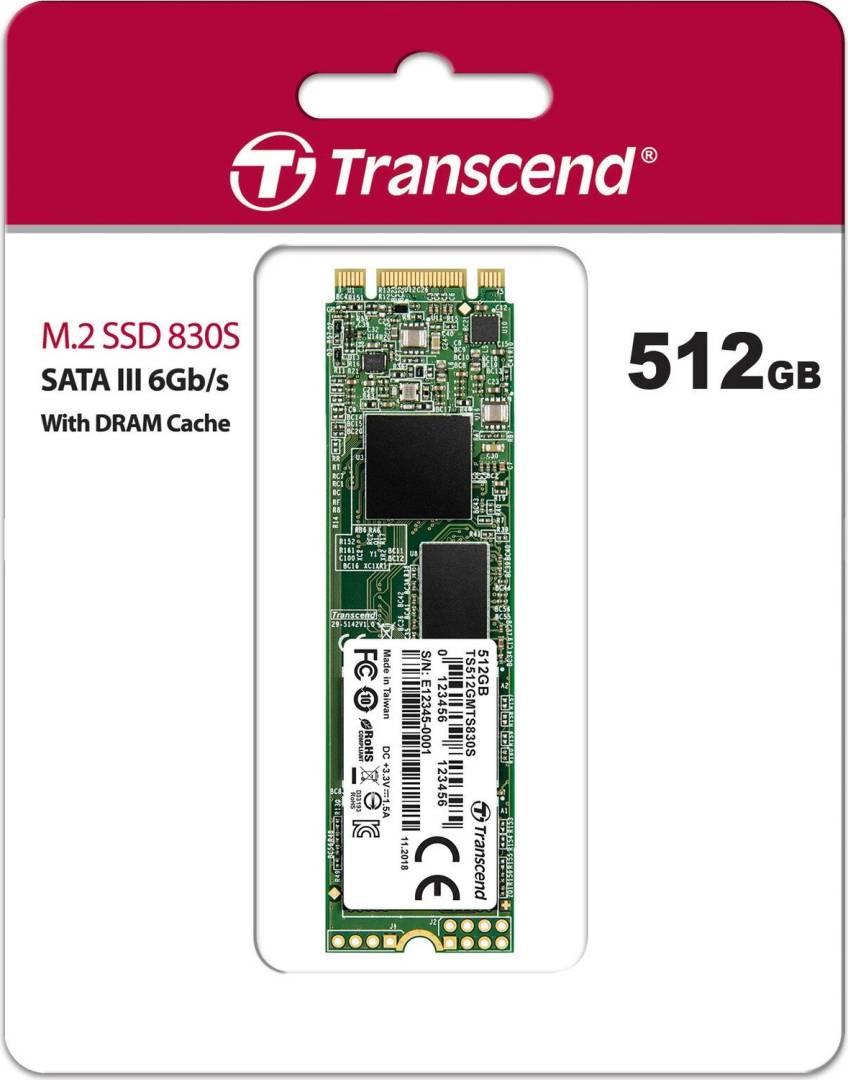

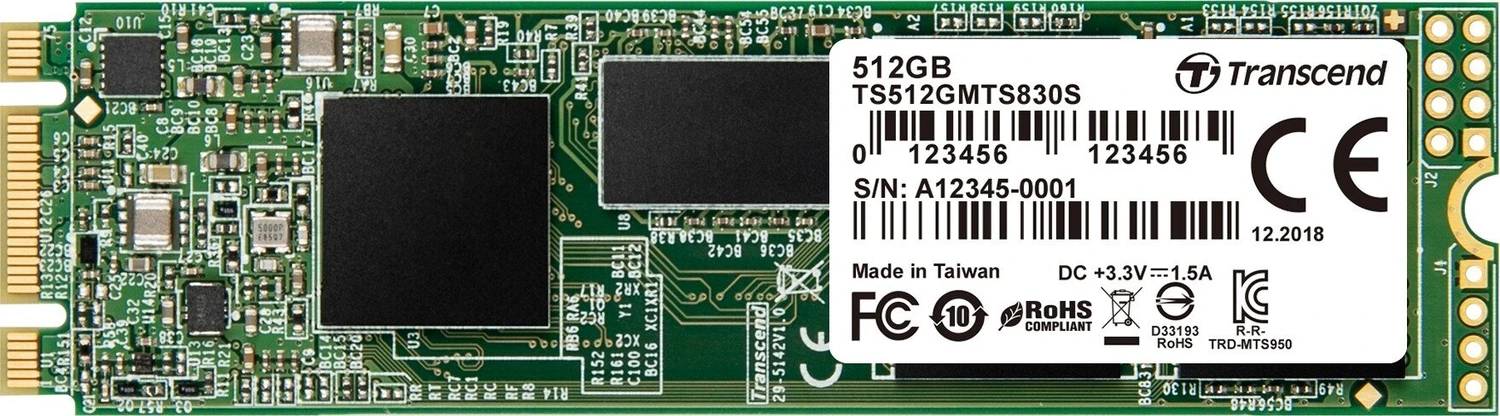

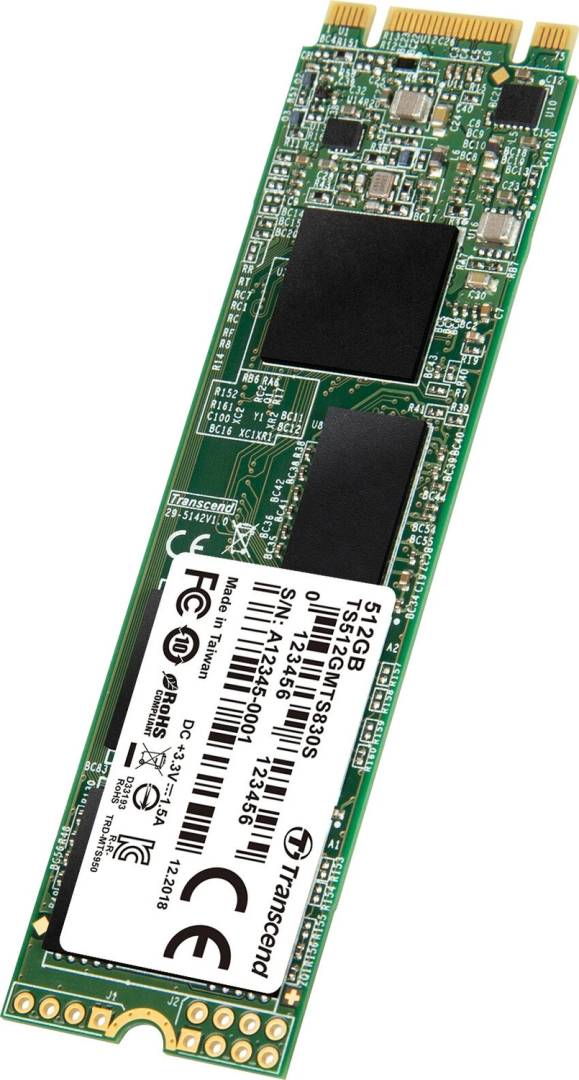

Transcend MTS830S / SSD / 512 GB / internal / M.2 2280 / SATA 6Gb/s | TS512GMTS830S
Please sign in so that we can notify you about a reply
Special Features
- Space-saving M.2 SATA form factor (80mm) for ultra-compact computing devices
- 3D NAND flash memory
- DDR3 DRAM cache
- SATA III 6Gb/s interface and SLC caching technology for exceptional transfer speeds
- Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity
- Supports Device Sleep Mode (DevSleep) to prolong notebook battery life by intelligently shutting down SATA interface when not in use
- Supports S.M.A.R.T., TRIM and NCQ commands
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 512 GB |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Features | Native Command Queuing (NCQ), TRIM support, DDR3 DRAM Cache, DevSleep mode, 3D NAND Technology, Low-Density Parity Check, S.M.A.R.T. |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.58 mm |
| Weight | 8 g |
| Performance | Performance |
| SSD Endurance | 320 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 510 MBps (write) |
| 4KB Random Read | 85000 IOPS |
| 4KB Random Write | 85000 IOPS |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| Compatible Bay | M.2 2280 |
| Software & System Requirements | Software & System Requirements |
| OS Required | Linux Kernel 2.6.31 or later, Microsoft Windows 7 / 8 / 10 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, RoHS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Transcend - TS512GMTS830S
Form Factor
- 2.5"
- Internal
Capacity
512GB
Interface
- M.2
More Details
Product Code
04:283611
EAN Code
0760557842958
Manufacturer
Transcend
