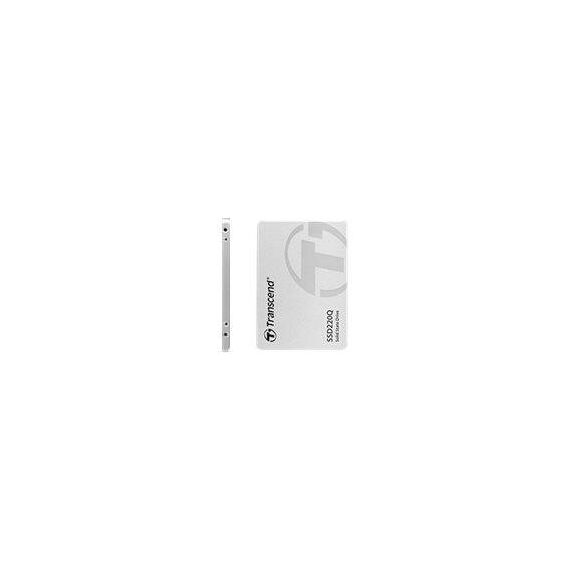

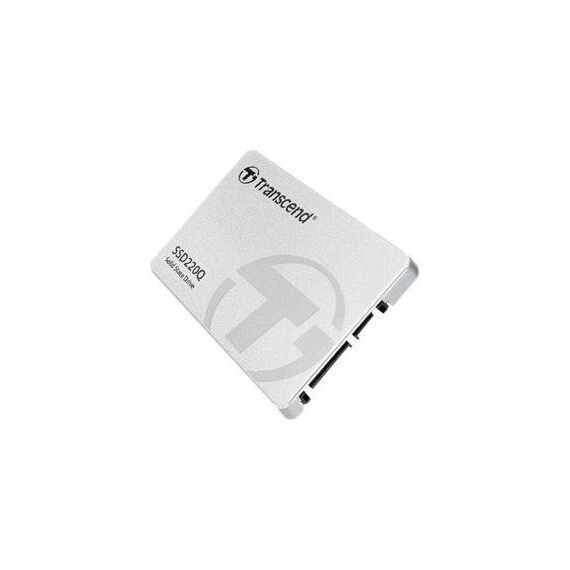

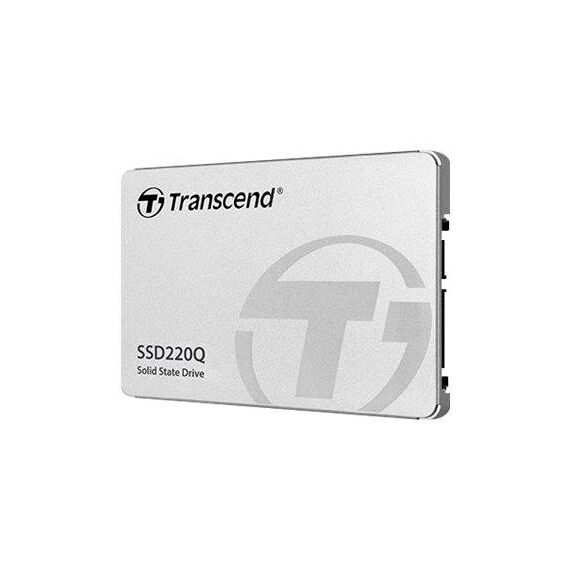

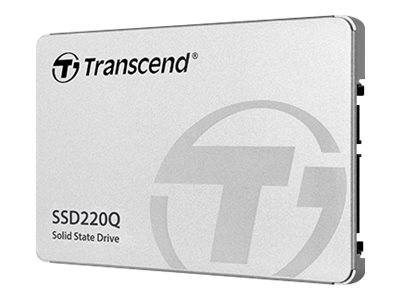

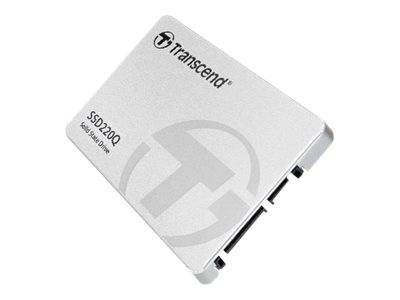

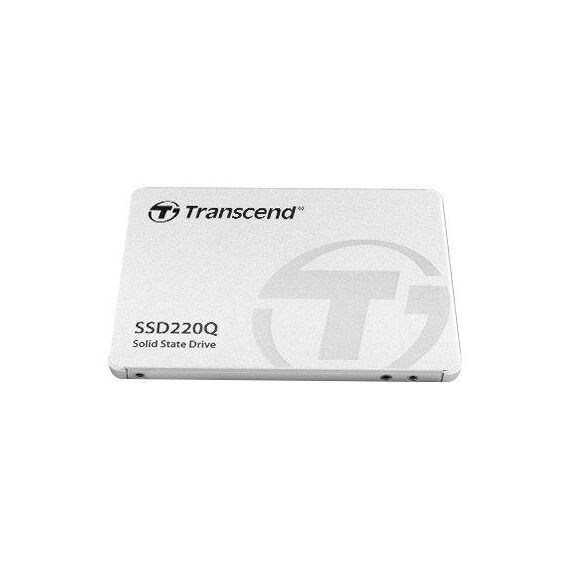

Transcend SSD220Q / SSD / 1 TB / internal / 2.5" / SATA 6Gb/s | TS1TSSD220Q
Please sign in so that we can notify you about a reply
Product Features
- Less is more
Featuring QLC NAND flash, SSD220Q's storage density per cell boosts 33%. More storage capacity is unleashed for more data. Your performance is no longer limited. Unlock your potential now! - Performance boost for everyday computing
Taking full advantage of the SATA III 6 Gbps interface and built-in SLC caching technology, Transcend's SSD220Q achieves exceptional transfer speeds of 550 MBps read and 500 MBps write. - Endurance and reliability
Transcend's SSD220Q offers great terabytes written (TBW) values indicating the total amount of data you can write on the drive over its lifetime. - Better choice than HDD
Solid-state drives dominate the market for PC upgrades because they are faster and lighter than traditional hard disk drives. SSDs also consume less power, create less noise when in operation, and are more shock-resistant than hard drives. - RAID engine and LDPC coding
Detects and corrects transfer errors to prevent data corruption. - Garbage Collection
Relocates existing data to release memory blocks. - Wear leveling
Distributes data evenly across memory cells to prolong SSD's lifespan. - DevSleep mode
Intelligently shuts down SATA interface when not in use to prolong device's battery life.
Special Features
- Performance boost for everyday computing
- Endurance and reliability
- Better choice than HDD
- RAID engine and LDPC coding
- Garbage Collection
- Wear leveling
- DevSleep mode
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | Native Command Queuing (NCQ), TRIM support, Garbage Collection technology, Wear Leveling Support, Advanced Garbage Collection, DevSleep mode, LDPC error correction, RAID Engine, S.M.A.R.T. |
| Width | 69.85 mm |
| Depth | 100 mm |
| Height | 6.8 mm |
| Weight | 45 g |
| Performance | Performance |
| Drive Writes Per Day (DWPD) | 0.19 |
| SSD Endurance | 200 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 500 MBps (write) |
| 4KB Random Read | 57000 IOPS |
| 4KB Random Write | 59000 IOPS |
| Reliability | Reliability |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s - 22 pin Serial ATA |
| Compatible Bay | 2.5" |
| Software & System Requirements | Software & System Requirements |
| OS Required | Linux Kernel 2.6.31 or later, Microsoft Windows 7 / 8 / 10 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, KC, RCM |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Transcend - TS1TSSD220Q
Form Factor
- 2.5"
- Internal
Capacity
1TB
Interface
- SATA
More Details
Product Code
07:293369
EAN Code
0760557848912
Manufacturer
Transcend
