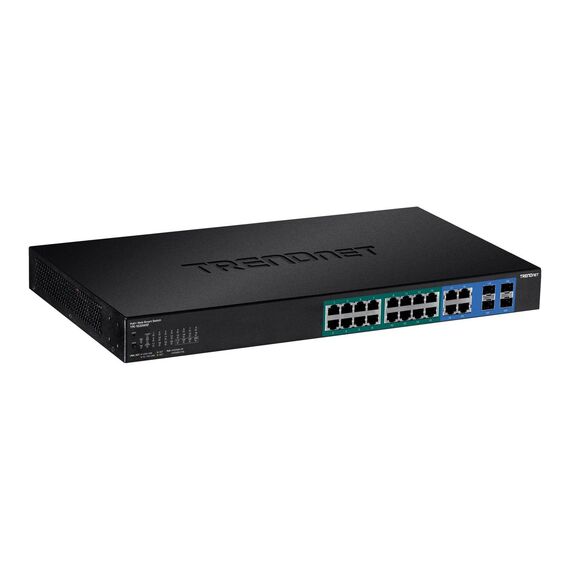

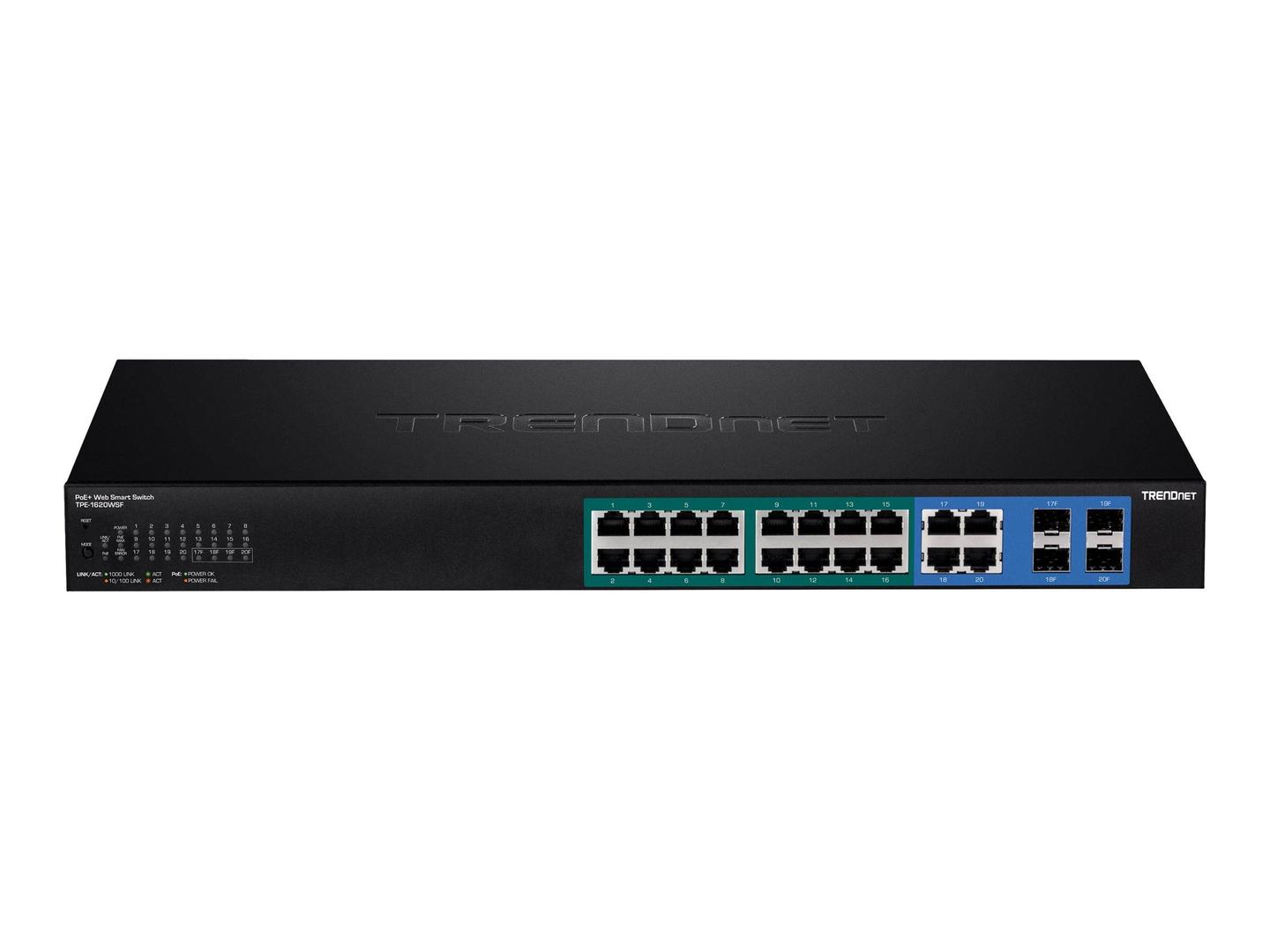

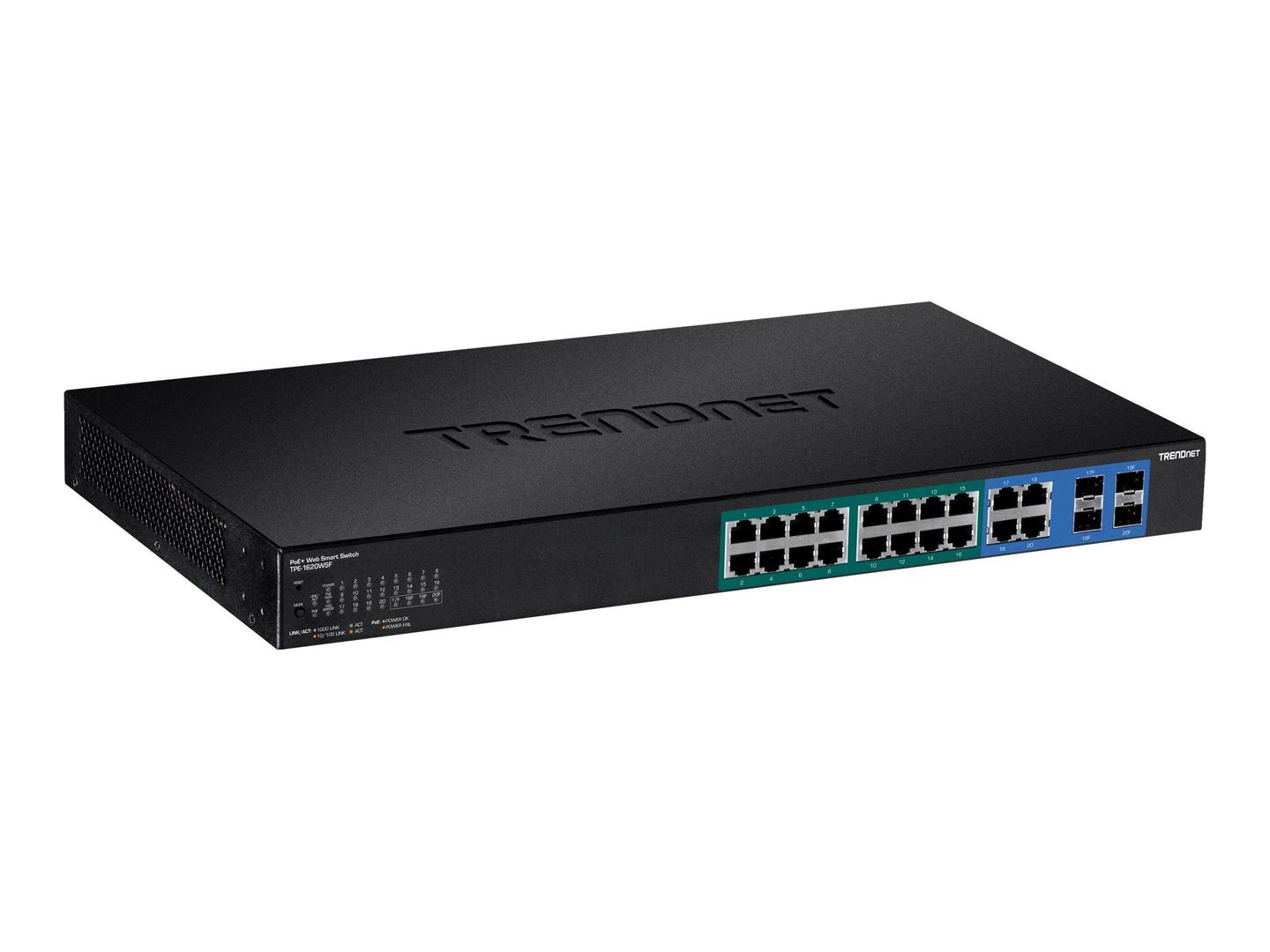

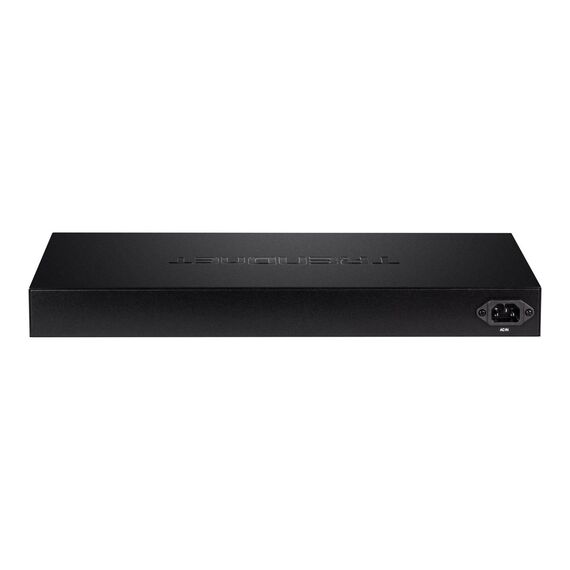

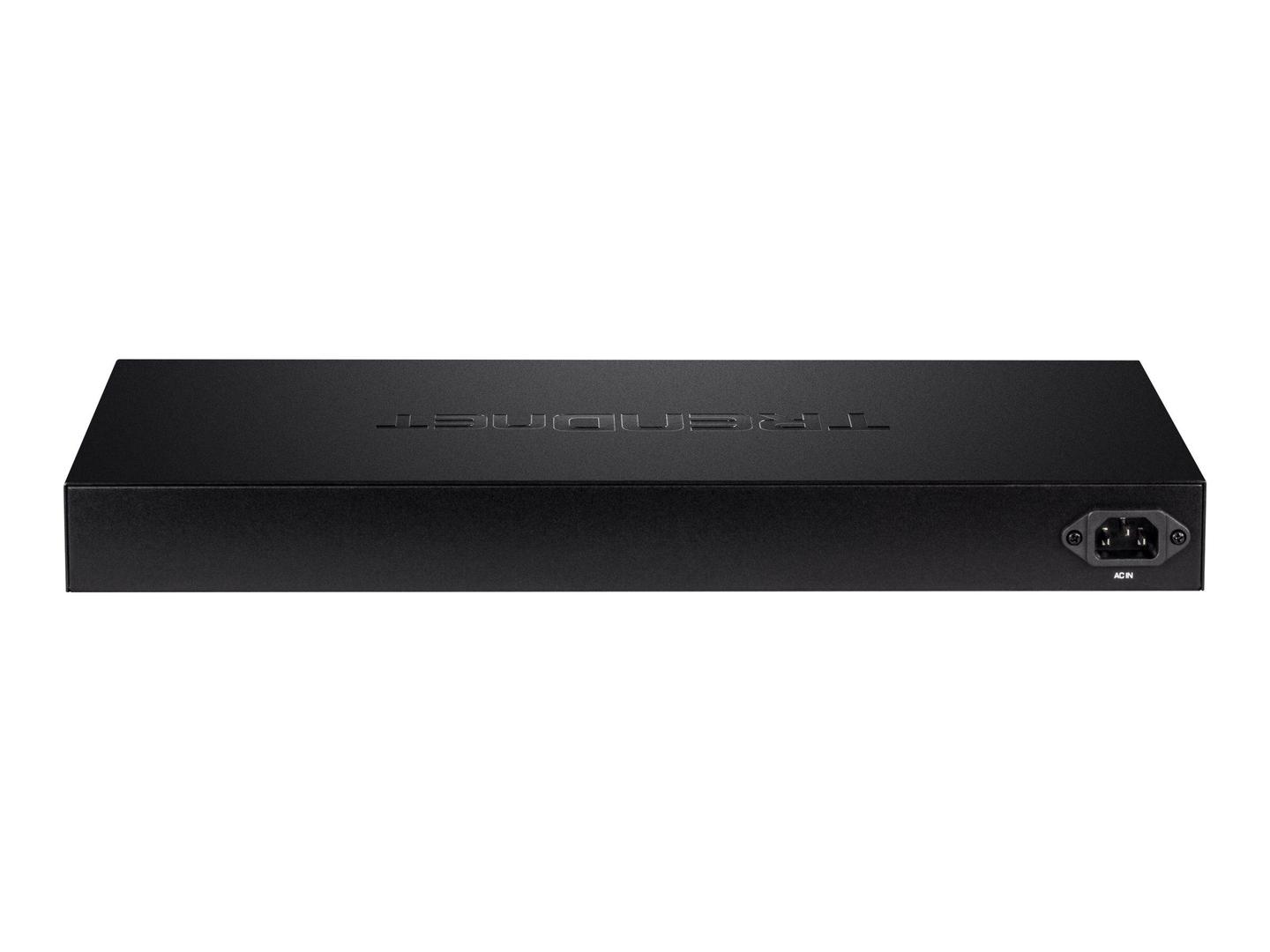

TRENDnet TPE 1620WSF / Switch / L2+ / smart / 16 x 10/100/1000 (PoE+) + 4 x shared Gigabit SFP / rack-mountable / PoE+ (370 W) | TPE-1620WS
Please sign in so that we can notify you about a reply
Product Features
- Integration flexibility
Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration. - Web smart management
Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment. - Dynamic ARP inspection
Dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets.
Special Features
- Easy-to-use web-based management interface
- Bandwidth control per port
- Smart fans
Product Specification
| Device Type | Switch - 20 ports - L2+ - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 4 x shared Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 40 Gbps ¦ Forwarding performance (64-byte packet size): 29.8 Mpps |
| Capacity | VLAN groups: 256 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing |
| Remote Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Encryption Algorithm | TLS, SSL 3.0, SSL 2.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | DHCP support, VLAN support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, GREENnet technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, reset button, bandwidth control, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), 512KB packet buffer, Dynamic VLAN Support (GVRP), Network Access Control (NAC), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), tagged VLAN, Loopback, Denial of Service (DoS), Duplicated Address Detection, Smart Fans |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x Gigabit LAN RJ-45/SFP |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 460 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| MTBF | 192,382 hours |
| Compliant Standards | FCC, RoHS, WEEE |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 25 cm |
| Height | 4.4 cm |
| Weight | 3.89 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TPE-1620WS
General
16-Port
More Details
Product Code
04:190416
EAN Code
0710931160093
Manufacturer
Trendnet
