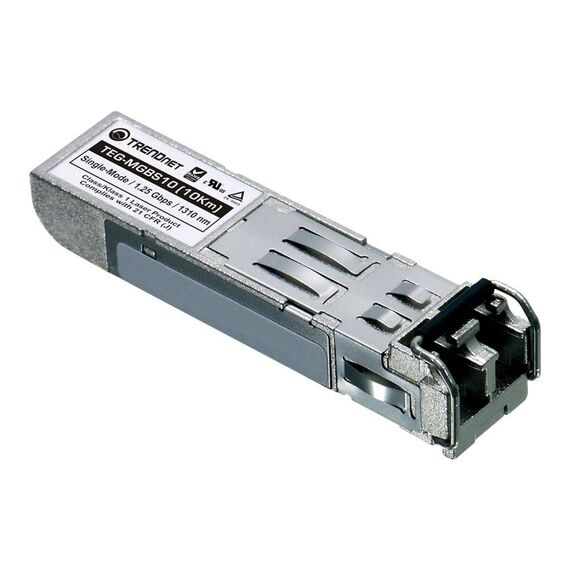

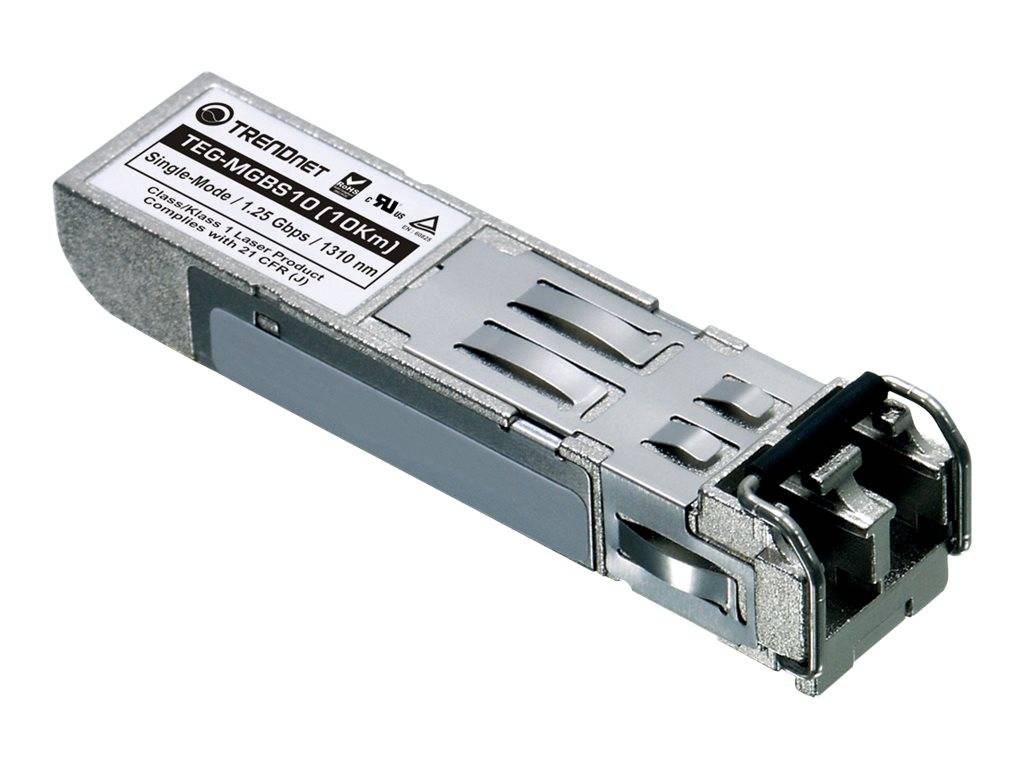

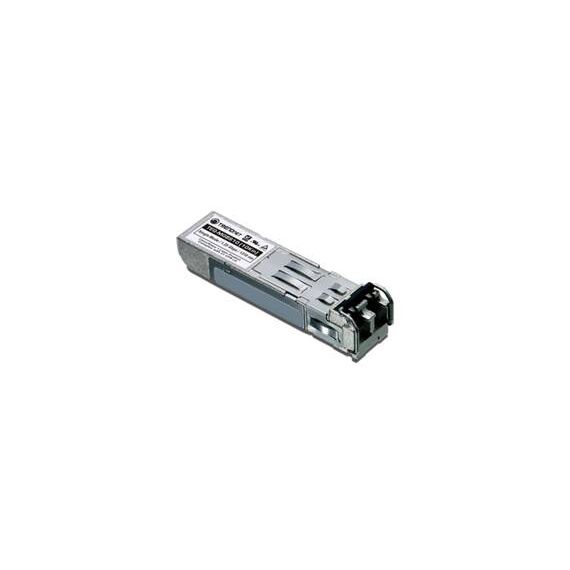

TRENDnet TEG MGBS10 / SFP (mini-GBIC) transceiver module / GigE / 1000Base-LX / LC single-mode / up to 10 km / 1310 nm | TEG-MGBS10
Please sign in so that we can notify you about a reply
Special Features
- Compliant with IEEE 802.3z Gigabit Ethernet and Fiber;
- Channel Standards;
- Industry standard SFP package;
- Duplex LC connector;
- UP to 2.125Gbps Bi-Directional Data Links;
- Die Cast Metal Housing for low EMI;
- Hot Pluggable.
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
Features - Trendnet - TEG-MGBS10
More Details
Product Code
04:190301
EAN Code
0710931501612
Manufacturer
Trendnet
